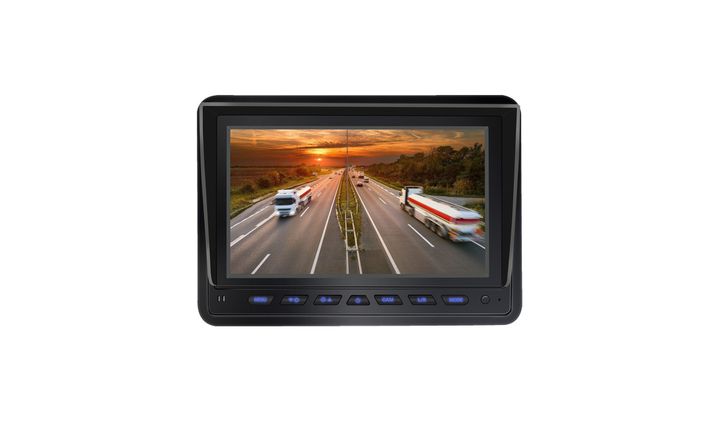

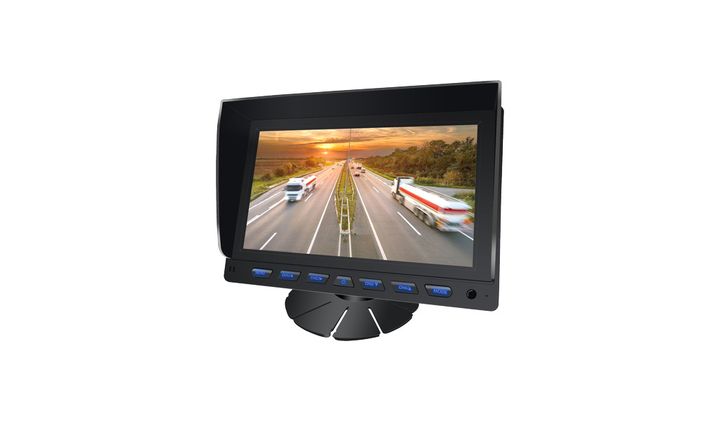

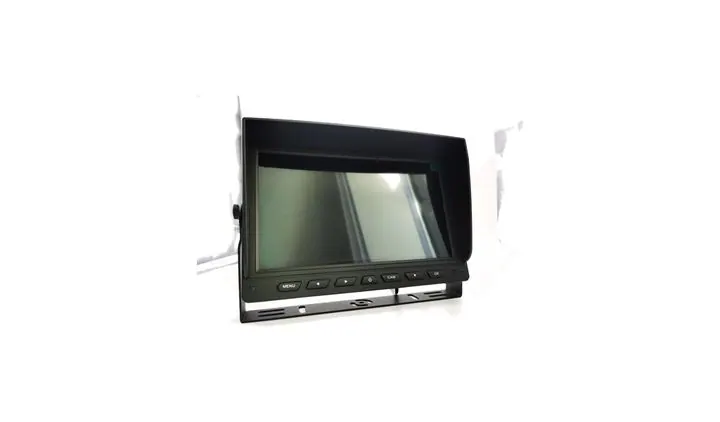

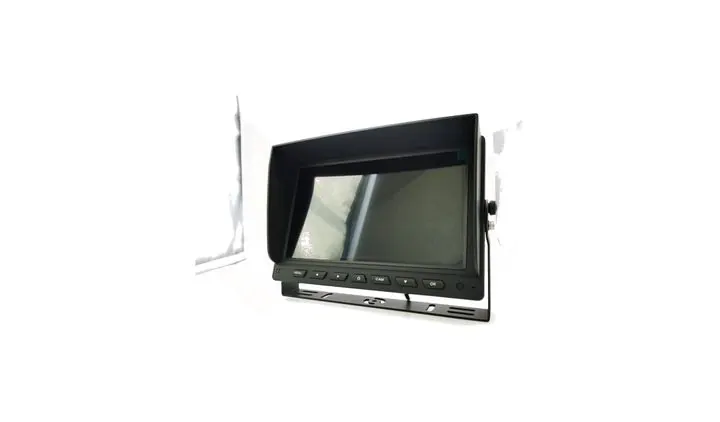

Main image and detail shots of the JPM-906 9.
Display Range · JPM
JPM-906 9

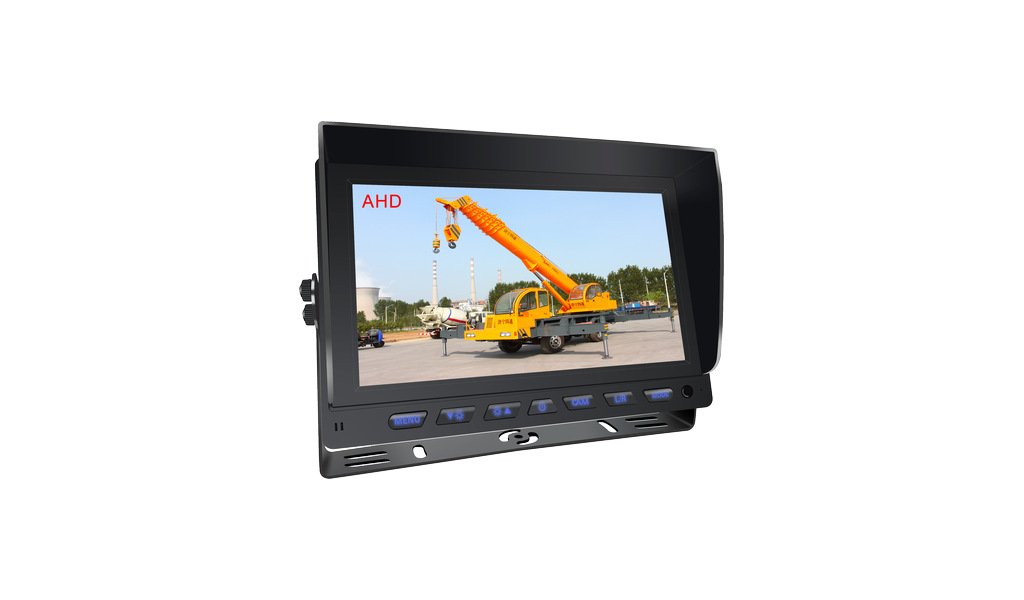

JPM-906 9-inch single-channel vehicle monitor (1024×600 / 2-channel AHD input single screen / 12-36V)
Key features
- 9-inch high-definition digital screen, resolution 1024 × R.G.B × 600
- LED backlight, brightness 500-650 cd/㎡: can be seen clearly even outdoors during the day
- Viewing range: 85° left and right, 85° up and down
- 2 AHD video inputs, single image display (two cameras can be connected, one of which is displayed on the screen)
- Support 720P / 960P / 1080P, compatible with CVBS / AHD
- Automatically switches to V2 when reversing, with built-in reversing reference line
- PAL / NTSC auto switching
- Power supply 12-36V: universal for 12V / 24V models
- High and low voltage protection + short circuit protection, good stability
- Working temperature -20~+70°C, storage temperature -30~+80°C
- 9-inch model body 230 × 155 × 27mm (including sunshade 74mm); headrest frame 251 × 176 × 27mm
- Standard metal U-shaped bracket (there are 906 U-shaped brackets and framed dimensional drawings in the catalog to facilitate installation position)
- Optional installation methods: butterfly / fan / suction cup / universal / embedded, headrest frame
- Optional connectors: RCA / 4-pin aviation connector
- Fits: buses, trucks, trailers, special-purpose vehicles, RVs
- The same platform also has 2-channel (706S / 906S), 4-channel (706Q / 906Q) versions, and a version with DVR recording / touch buttons, select by item
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm screen size: 7 inches / 9 inches (this model) / 10.1 inches
- Confirm the number of channels: This model has 2 inputs and a single image display; it needs to be divided or 4 channels selected 906Q / 906S
- Confirm video input: AHD 720P / 960P / 1080P and whether CVBS compatibility is required.
- Confirm voltage (12–36V) and power source (ACC or permanent live).
- Confirm whether a reverse trigger wire and parking reference lines are required.
- Confirm connector type (RCA or 4-pin aviation), cable length and whether an extension is required.
- Confirm how the unit connects to the MDVR. If it only ever works with an MDVR, a single male or female connector is cheaper. If it is sometimes used with a camera and sometimes with an MDVR, we supply a 30 cm female-to-female aviation lead.
- Confirm bracket and mounting method. U-bracket is standard; butterfly, fan, suction, swivel, flush-mount and headrest-frame options are available.
- Confirm whether a complete kit with a camera is required, and which camera model.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is within 12–36V and never reverse the polarity.
- Connect ACC to the ignition switch to avoid draining the battery.
- Connect the trigger wire to the reversing lamp signal, then confirm the display switches to V2 when reverse is engaged.
- Set the parking guide lines to match the actual mounting height so they do not mislead the driver.
- Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
- Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
- Clean the screen and sunshade with a soft cloth — never alcohol or anything abrasive.
