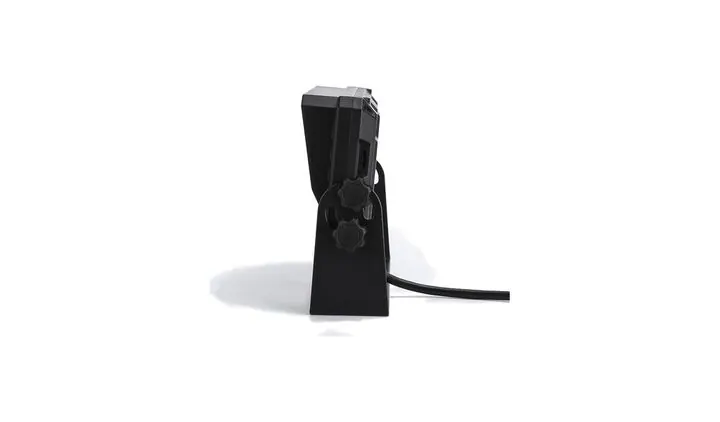

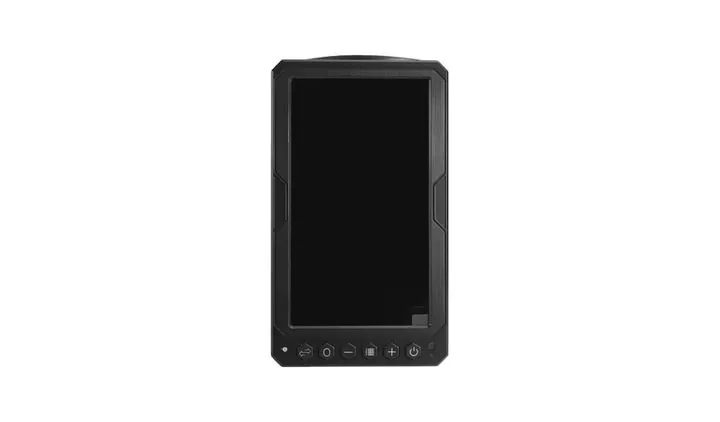

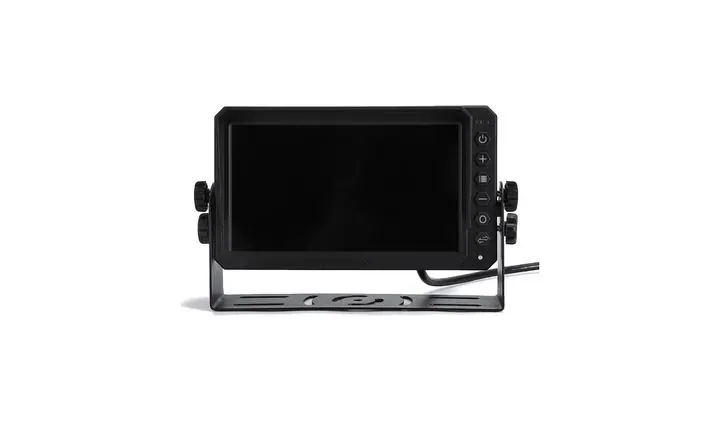

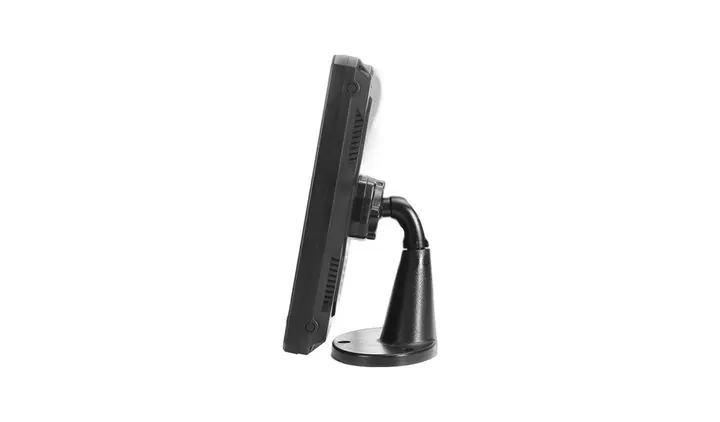

Main image and detail shots of the JPM-07E 7.
Display Range · JPM
JPM-07E 7
JPM-07E 7-inch AB pillar electronic rearview mirror (private model/IPS 1024×600/HD split video/DC12-32V)
Key features
- 7-inch IPS high-definition high-brightness digital screen, 1024(H)×600(V), brightness 600, brushed panel
- Viewing angle U:85 / D:85 / L:85 / R:85, both driver and passenger can see clearly
- Specially designed for AB pillars of large vehicles: desktop/suspended dual-purpose installation, installed on the A and B pillars of the cab
- Does not take up space on the center console, does not block the line of sight, is compact and exquisite (108(W)×187(H)×29mm, net weight is about 800g)
- Horizontal screen/vertical screen are available (vertical screen is what an electronic rearview mirror looks like)
- AHD high-definition split recording: can be directly connected to two CVBS / AHD million high-definition cameras
- H.264 HD compression format
- Real-time recording 720P 2 channels; built-in SD card slot, maximum support 256G Only 2-split or 4-split with recording Single display without recording
- Video inquiry and playback: playback by channel and time to facilitate investigation of accidents and disputes
- Reverse forced trigger signal: Automatically switch to the reverse screen when the reverse gear is engaged (the reverse screen is locked at AV2)
- Single screen/split view can be manually switched on the monitor
- Specially designed for 24V vehicles, wide voltage DC12-32V input, 12V output can directly power the camera
- Special vehicle power supply processing method: stable operation even in unstable cold car voltage and strong interference environment
- The complete set only requires one set of power supplies, one plug and two plugs to complete the installation, making installation easy
- Power consumption ≤10W (at 12V, including camera)
- 12P waterproof plug interface: AV1 video, AV2 video, power, ground, CAM1 power, CAM2 power, reversing signal
- Aviation belt self-locking socket: waterproof, earthquake-resistant, high-temperature resistant, oil-resistant, firm connection
- Brightness and contrast can be adjusted directly on the panel
- Version: 1 channel / 2 split / 4 split; horizontal screen / vertical screen
- The 4-split version is fully compatible (four-split instructions are included in the catalog)
- You can set your own reversing scale line (allowing you to have a reference distance for reversing) - optional
- Reverse delay can be set from 0 to 20 seconds - optional
- Each channel can be independently set to mirror/positive image, and the channels will not interfere with each other - optional
- Language Chinese English
- There is also an AI-adjusted version, but it can only be used in landscape mode
- Buses, school buses, agricultural machinery, commercial vehicles, trucks, special-purpose vehicles, fire trucks, ships, etc
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the version first: 1 channel / 2 split / 4 split
- Confirm the installation direction: horizontal screen or vertical screen (the vertical screen is in the form of an electronic rearview mirror; the AI-adjusted version can only be used in horizontal screen)
- Confirm the voltage (DC12-32V) and power supply method (ACC / normal power)
- Confirm whether you need the recording function: the built-in SD card supports a maximum of 256G. Only 2-split and 4-split can record. We do not have the card
- Confirm video input (CVBS/720P/960P/1080P) and format (PAL/NTSC)
- Confirm the optional functions: reversing scale line, reversing delay (0-20 seconds), mirror/positive image of each channel
- Confirm the length of the 12P waterproof plug and whether an extension cord is needed
- Confirm how the unit connects to the MDVR. If it only ever works with an MDVR, a single male or female connector is cheaper. If it is sometimes used with a camera and sometimes with an MDVR, we supply a 30 cm female-to-female aviation lead.
- Confirm whether a complete kit with a camera is required, and which camera model.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the voltage and never reverse the polarity. Connect ACC to the ignition switch so the battery is not drained.
- Insert the 12P waterproof plug to the bottom and lock the self-locking buckle to avoid loosening due to driving vibrations
- The monitor should be installed on the A and B pillars and should not block the driver's view; desktop/ceiling installation must be firmly fixed
- The reversing trigger line must receive the reversing light signal. After installation, test whether the reverse gear can be automatically switched
- The reversing scale line, reversing delay, mirror/positive image are set according to the customer's model, and are tested one by one before delivery
- It is recommended to use genuine SD cards for recording and format them regularly
- Fix the wiring well and avoid high temperature parts and sharp sheet metal edges
- Clean the screen with a soft cloth — never alcohol or anything abrasive.
