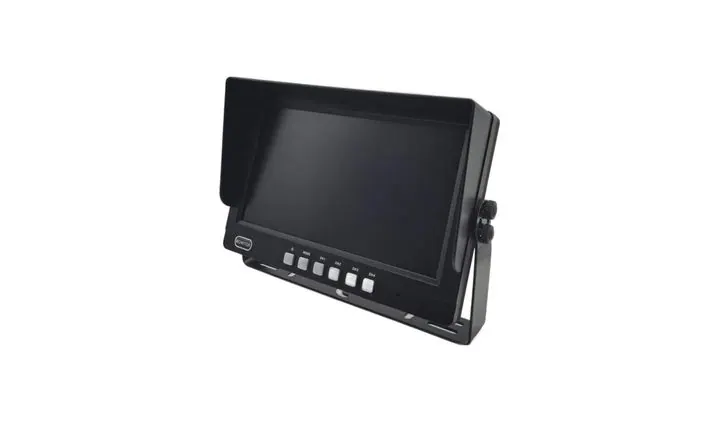

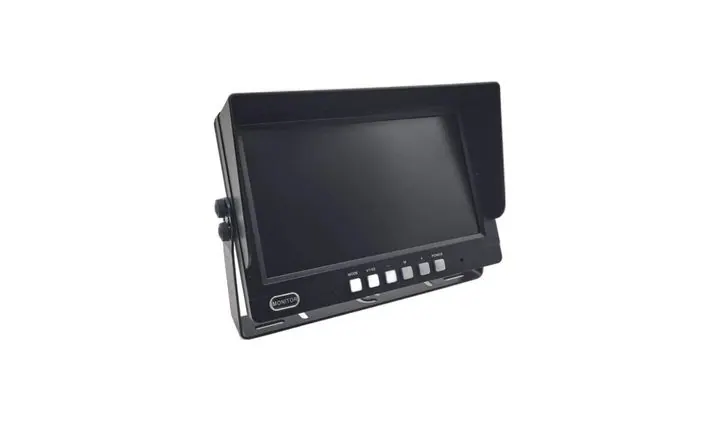

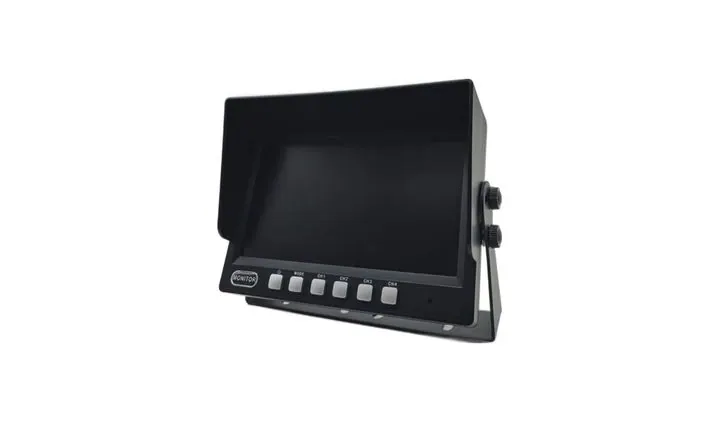

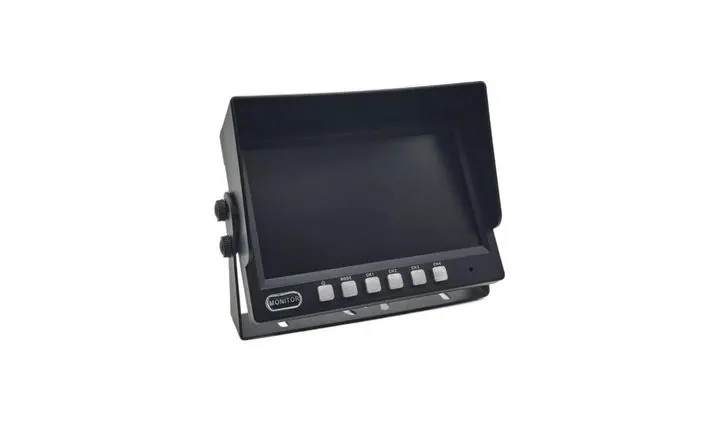

Main image and detail shots of the JPM-09C 9.
Display Range · JPM
JPM-09C 9
JPM-09C 9-inch car monitor (two-channel AHD input / single screen display / 1024×R.G.B×600 / reverse automatic cut V2)
Key features
- 9-inch screen, resolution 1024 × R.G.B × 600, delicate picture
- LED backlight, brightness 500 cd/㎡: can be seen clearly even outdoors during the day
- Viewing angle range: 85° up/down, 85° left/right, both driver and co-driver can see clearly
- Appearance color: black, not obtrusive when installed on the dashboard or center console
- Two AHD high-definition video inputs, single image display: One machine is connected to two cameras at the same time, and one of them is displayed on the screen
- V1 is connected to the main camera (rear/side view), V2 is connected to the reversing camera
- When the reverse gear is engaged, it automatically switches to the V2 reversing screen. It comes with a reversing scale line to assist in judging the distance
- Support 720P / 960P / 1080P; video compatible with CVBS / AHD (old cameras can also be used)
- PAL & NTSC format automatic conversion, no need to manually set
- Vehicle power supply DC 12V-24V, both 12V and 24V models can be used directly
- Comes with DC12V power output, which can directly power the camera, eliminating one route
- Standard butterfly bracket (
- Standard U-shaped bracket (-suction cup bracket / sector bracket (optional)
- The same monitor can be replaced with different brackets according to car models, which has good versatility in the aftermarket
- The same platform can also be made into a multi-channel version (up to 4 channels), and projects that require multi-screen monitoring can be upgraded
- Optional connectors: 4-pin aviation connector/RCA connector
- Working temperature -20~+70°C, storage temperature -30~+80°C
- This model does not have audio input (no sound channel): Please specify in advance if you need sound, and choose a model with speaker/audio input instead
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm screen size, channel count and resolution. This model has two inputs with single-image display and supports 720P / 960P / 1080P.
- Confirm voltage range (DC 12–24V) and power source (ACC or permanent live).
- Confirm signal input (AHD or CVBS) and format (PAL / NTSC auto-switching).
- Confirm connector type (4-pin aviation or RCA), cable length and whether an extension is required.
- Confirm how the unit connects to the MDVR. If it only ever works with an MDVR, a single male or female connector is cheaper. If it is sometimes used with a camera and sometimes with an MDVR, we supply a 30 cm female-to-female aviation lead.
- Confirm brackets — butterfly and U-brackets are standard; suction and fan brackets are optional.
- Confirm whether audio is required. This model has no audio input; choose another model if you need it.
- For the recording version, note that a split-screen monitor is required and the price differs.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the voltage and never reverse the polarity. Connect ACC to the ignition switch so the battery is not drained.
- Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
- The V2 trigger line must be connected to the reversing light signal; after installation, test whether the reverse gear can be automatically switched
- The reversing scale line should be adjusted to fit according to the actual installation height to avoid misleading the driver
- Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
- Clean the screen with a soft cloth — never alcohol or anything abrasive.
