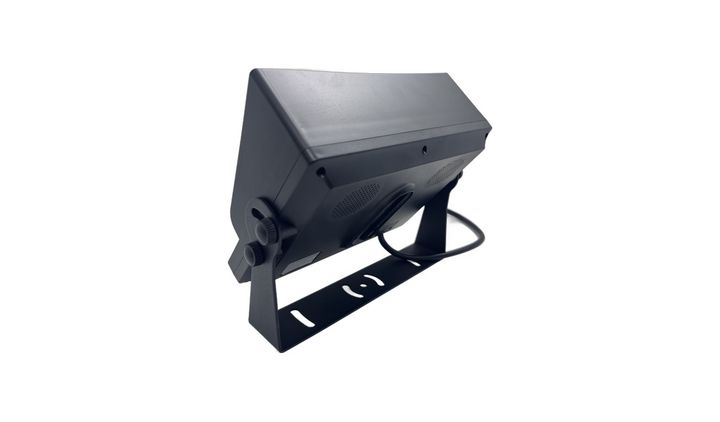

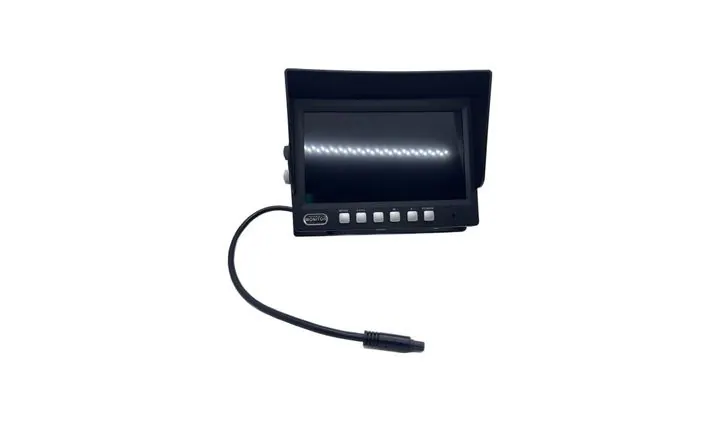

Main image and detail shots of the JPM-07C.
JPM-07C 7-inch AHD vehicle monitor (two AHD inputs / single view / 1024 x R.G.B x 600 / reverse trigger to V2)
- 7-inch TFT LCD with LED backlight and 1024 x R.G.B x 600 resolution
- Brightness 500 cd/m2 for clear daytime viewing
- Viewing angle 85 degrees up/down and 85 degrees left/right
- Black housing for dashboard or centre-console installation
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
7-inch display, single-view V1/V2 logic and the approved power path.
These JPM-07C diagrams are generated only from the exact model sell_points.txt. They explain the 7-inch display envelope, two-input single-image logic with reverse-trigger V2 priority, and the DC 12-24V / DC 12V camera-output path. No exact-model video was proven, so the video count remains zero and no related-model clip is substituted.
7-inch display, 1024 x R.G.B x 600, LED backlight, 500 cd/m2 and 85 degrees up, down, left and right.
Two AHD inputs feed one image area at a time; the reverse trigger automatically switches the display to V2 and enables parking guide lines.

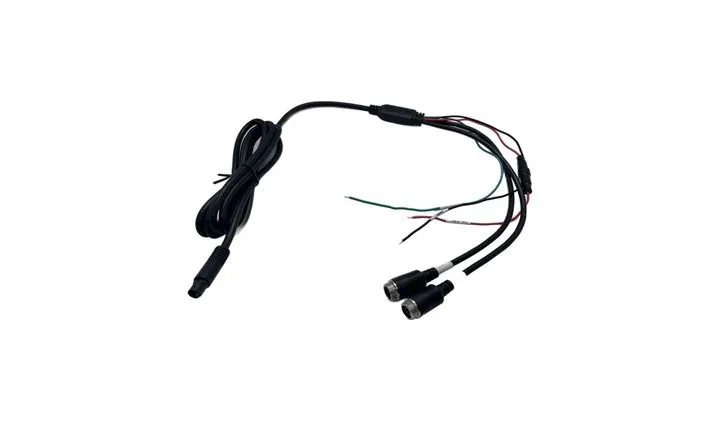

DC 12-24V vehicle input, DC 12V camera power output, V1/V2 video inputs, and 4-pin aviation or RCA connector options; confirm cable and pin-out at order.
JPM-07C product features
- 7-inch TFT LCD with LED backlight and 1024 x R.G.B x 600 resolution
- Brightness 500 cd/m2 for clear daytime viewing
- Viewing angle 85 degrees up/down and 85 degrees left/right
- Black housing for dashboard or centre-console installation
- Two AHD video inputs with single-image display
- V1 for the main rear/side camera; V2 for the reversing camera
- Reverse trigger automatically switches to V2 and enables parking guide lines
- Supports AHD 720P / 960P / 1080P
- Compatible with both CVBS and AHD video sources
- PAL and NTSC are detected and switched automatically
- DC 12-24V input works with 12V and 24V vehicle systems
- DC 12V camera power output avoids a separate camera supply
- 4-pin aviation or RCA connector options

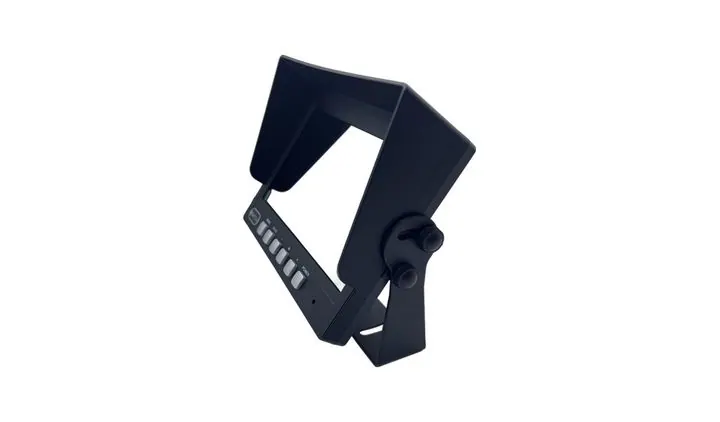

- Standard butterfly and U-shaped brackets; suction-cup and fan brackets optional
- No audio input on this model
- Operating -20 to +70 C; storage -30 to +80 C
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the 7-inch size, two inputs and single-image display requirement
- Confirm DC 12-24V vehicle power and ACC or permanent-power wiring
- Confirm AHD or CVBS sources and PAL or NTSC system
- Confirm 4-pin aviation or RCA connector, cable length and pin-out
- Confirm direct MDVR operation or camera use, so the correct harness can be supplied
- Confirm butterfly, U-shaped, suction-cup or fan bracket as required
- Confirm that this model has no audio input; select another model if audio is required
- Confirm quantity, colour or neutral box, silk print and branding
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Check voltage and polarity before wiring; connect ACC to ignition to prevent battery drain
- Mount the monitor without obstructing the driver and tighten the bracket securely
- Connect the V2 trigger to the reverse-lamp signal and test the switch after installation
- Adjust the parking guide lines to the fitted camera height before use
- Route and secure the cable away from heat, sharp edges and moving parts
- Clean the display with a soft cloth only; do not use alcohol or abrasive material
