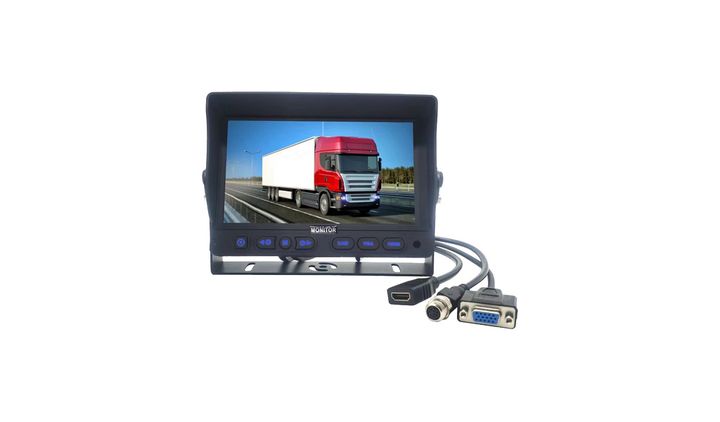

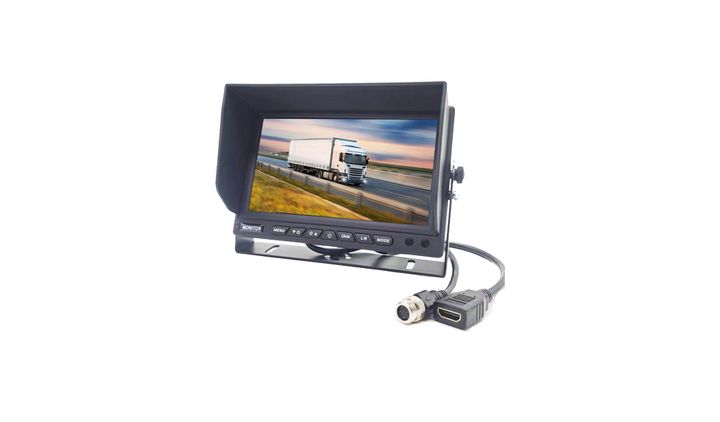

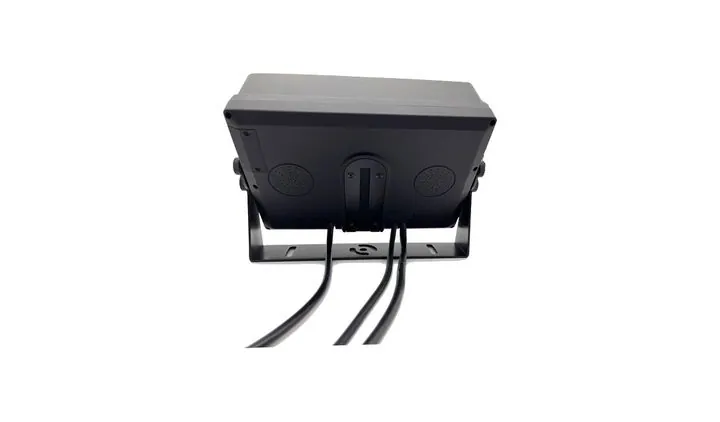

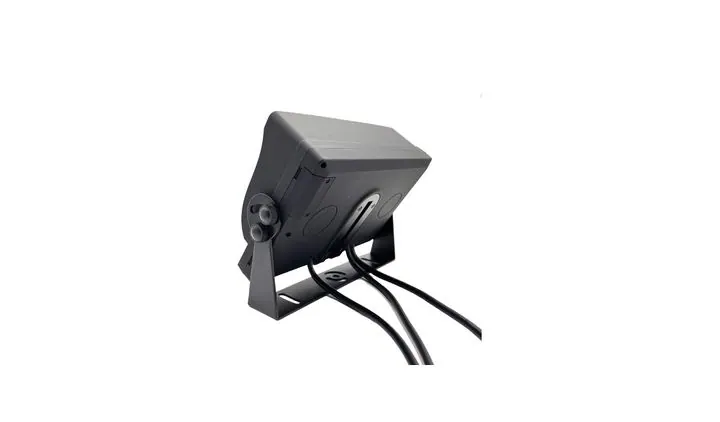

Main image and detail shots of the JPM-07V 7.
Display Range · JPM
JPM-07V 7
JPM-07V 7-inch VGA / HDMI multi-interface car display (1024×600 IPS / with MDVR, VGA is the clearest)
Key features
- Most in-vehicle MDVR/hard disk video recorders have VGA output. This model can be directly connected to the VGA port of the MDVR
- VGA is a computer-grade RGB signal, displayed point-to-point according to screen pixels (screen 1024×600, PC resolution supports 1024×768). MDVR’s menus, channel lists, playback lists, license plates and details are all sharper
- AHD / CVBS are video signals that need to be encoded and decoded before displaying. The MDVR interface words and details will appear blurry and blurry
- VGA signal is not limited by PAL / NTSC format, nor is it affected by AHD resolution level, and the picture is stable
- In a word: If MDVR needs a screen, give priority to VGA screen - the interface and picture will be clearer
- One VGA input: connect to MDVR/vehicle host/computer
- One AV input (CVBS): connect to ordinary cameras and reversing cameras
- One HDMI input (supports 1080P): connect to HD player/computer/screen projection
- SD-712 platform specifications: two CVBS + one VGA + one HDMI
- 7-inch high-brightness IPS screen, 16:9, resolution 1024 × R.G.B × 600
- LED backlight, brightness 500 cd/㎡, contrast ratio 500:1
- Viewing angle range: 180° up, down, left, right, and clear from the side
- Light sensing function: automatically adjusts screen brightness according to ambient light, bright enough during the day but not dazzling at night
- 1-way reverse trigger control: automatically switch the screen when the reverse gear is engaged
- OSD menu: image settings, mirror settings, system settings (brightness, contrast, color, language, mirror)
- Video format PAL / NTSC
- Audio: CVBS two audio inputs + HDMI one audio input
- Power on for 6 seconds; current consumption is about 750mA, power <9W
- Shock resistant 4G; operating temperature -20~+60°C, storage -30~+85°C
- Rubber paint shell, blue button light, exquisite appearance
- Standard metal U-shaped bracket; butterfly/sector/suction cup/embedded, and some special car-specific brackets are optional
- Dimensions 180 × 121 × 24mm (including bracket 60mm)
- Connector optional 4-pin aviation connector / RCA
- DB15P female plug adapter cable: L=500mm, the other end is ZH1.25-6Y plastic shell (6 pin, 5/6/7/8/10 pins short-circuited), connected to the VGA output of MDVR
- DB15P male-to-male VGA cable: L=1.5m, can be directly connected to the VGA port of MDVR
- Wire length and pin definition can be custom according to customer MDVR
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm usage: Mainly equipped with MDVR (VGA input), or also connected to camera (AV) or high-definition equipment (HDMI)
- Confirm screen size: 7 inches (this model) / 5 inches / 9 inches / 10.1 inches / 12.3 inches
- Confirm the VGA interface and pin definition of MDVR, and which VGA cable to use (DB15P female plug 500mm / DB15P male to male 1.5m / custom)
- Confirm voltage (12–24V) and power source (ACC or permanent live).
- Confirm whether HDMI input is required (supports 1080P)
- Confirm the connector type (4-pin aviation connector/RCA) and cable length
- Confirm the bracket: standard metal U-shaped bracket, whether butterfly / sector / suction cup / embedded bracket is required
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the voltage and never reverse the polarity. Connect ACC to the ignition switch so the battery is not drained.
- The VGA cable must use a matching DB15P cable, and the pin definitions (especially the short-circuit pins) must be aligned with the MDVR, otherwise there will be no picture
- When three signals are connected at the same time, press the menu to select the current display source (VGA / AV / HDMI)
- Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
- Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
- Clean the screen with a soft cloth — never alcohol or anything abrasive.
