JPM-07D

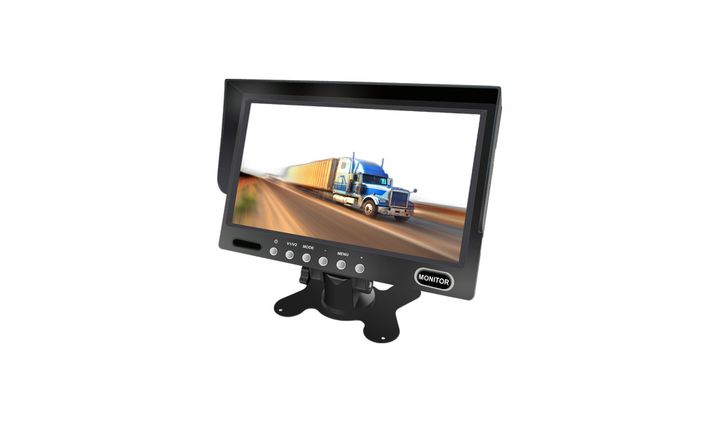

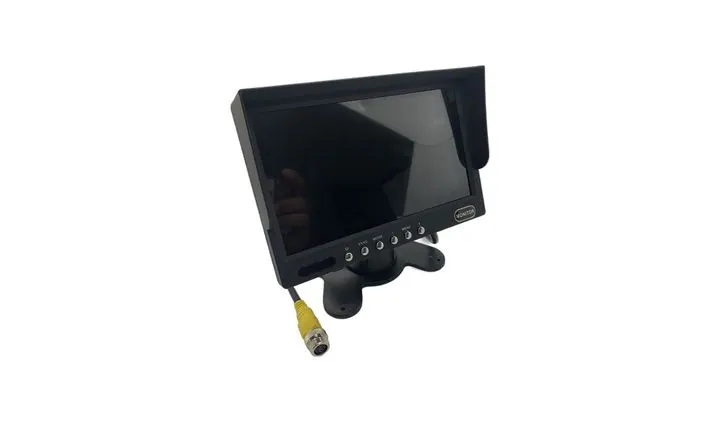

JPM-07D 7-inch 1-channel vehicle monitor (SD-703 platform / single image / EWV or IPS)

A single-image 1-channel vehicle monitor with two selectable video inputs, V2 reverse priority, AHD / CVBS input, 9-32V DC power and a choice of EWV 400 cd/m2 or IPS 500 cd/m2 panels.

  • Display channel: one 7-inch single-image picture area; this is not a split-screen, 2-channel or 4-channel display
  • Screen: 16:9 digital panel with 1024 x RGB x 600 resolution
  • Two selectable video inputs: V1 normal and V2 reverse-priority, with one picture shown at a time
  • Reverse trigger: one trigger input selects the intended reversing source when active

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPM-07D selling points

One picture area, two selectable inputs and a reverse-priority feed.

These exact-model diagrams explain the 1-channel display logic, the two SD-703 panel choices and the approved 9-32V mounting envelope. The three source clips below come only from the exact JPM-07D 1-channel comparison folder and are delivered without supplier audio.

JPM-07D input-routing diagram showing one picture area, two selectable video inputs, one audio input and V2 reverse priority
01. Single-screen input logic

One picture is displayed at a time; CAM1 normal and CAM2 reverse-priority are selectable inputs, not a two-view split screen.

JPM-07D panel-choice diagram comparing EWV 400 cd/m2 and IPS 500 cd/m2 viewing ranges
02. EWV or IPS panel

EWV 400 cd/m2 or IPS 500 cd/m2; the exact SD-703 sheet states 180 degrees in each direction for IPS.

JPM-07D power and mounting diagram showing 9-32V DC input, below 5W load, 172 by 115 by 24 mm body and 47 mm sunshade depth
03. Power and mounting envelope

9-32V DC input for 12V and 24V systems, consumption below 5W, and a 172 x 115 x 24 mm body with a 47 mm sunshade depth.

01

Exact-model 1ch bench comparison

Silent 18-second excerpt from the exact JPM-07D 1-channel source folder; supplier audio removed.

02

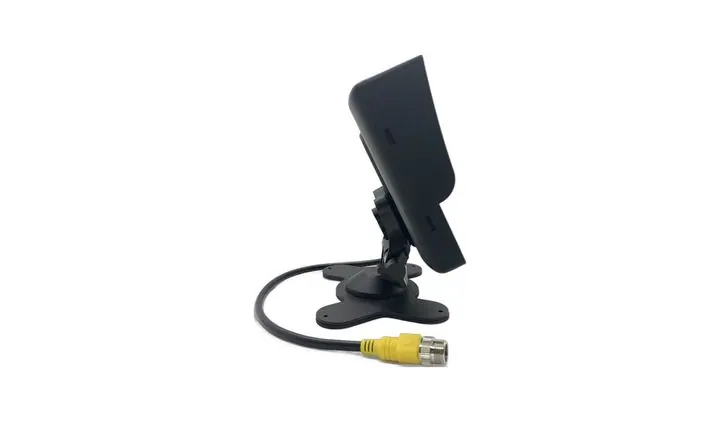

Housing and adjustment detail

Silent 18-second excerpt from the exact JPM-07D 1-channel source folder; supplier audio removed.

03

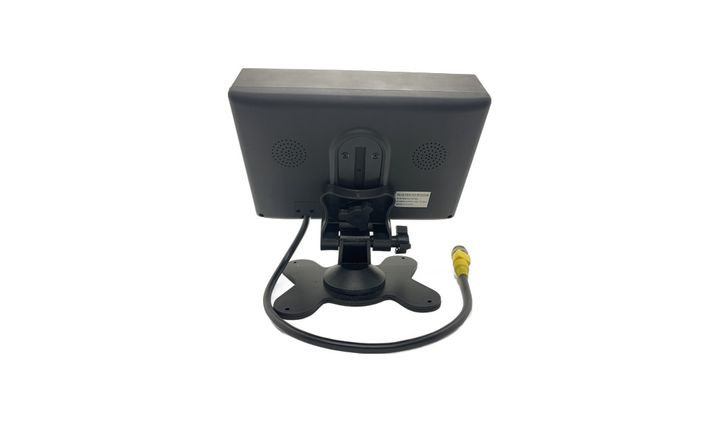

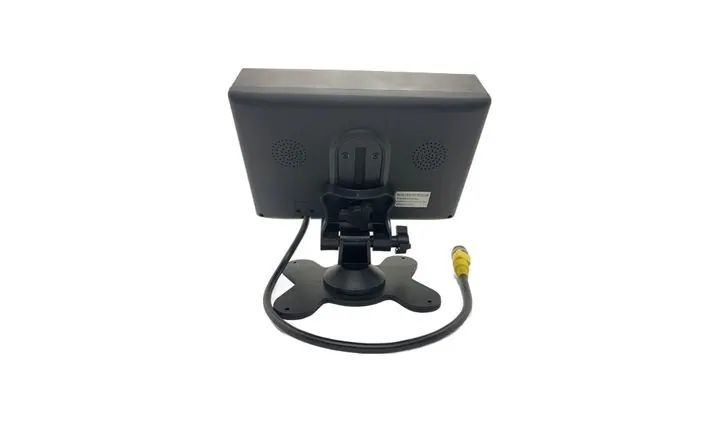

Rear-housing and stand comparison

Silent 18-second excerpt from the exact JPM-07D 1-channel source folder; supplier audio removed.

JPM-07D product features

  • Display channel: one 7-inch single-image picture area; this is not a split-screen, 2-channel or 4-channel display
  • Screen: 16:9 digital panel with 1024 x RGB x 600 resolution
  • Two selectable video inputs: V1 normal and V2 reverse-priority, with one picture shown at a time
  • Reverse trigger: one trigger input selects the intended reversing source when active
  • Panel choice: EWV LED at 400 cd/m2 or IPS LED at 500 cd/m2, confirmed before order
  • EWV viewing range: 50 degrees up, 70 degrees down, 70 degrees left and 70 degrees right
  • IPS viewing range: 180 degrees up, down, left and right as stated in the exact SD-703 sheet
  • Signal: AHD / CVBS input with PAL / NTSC automatic switching; confirm the ordered video format
  • Audio: one audio input for a single sound source
  • OSD: brightness, contrast, colour, volume, language and reverse delay
  • Power: 9-32V DC for 12V and 24V vehicle systems, with consumption below 5W
  • Temperature: operating -20 to +70 C and storage -30 to +80 C
  • Structure: black rubber-coat housing, detachable sunshade and an adjustable vehicle bracket
  • Size: 172 x 115 x 24 mm, or 47 mm including the sunshade
  • Connection: RCA or 4-pin aviation connector selected for the vehicle harness

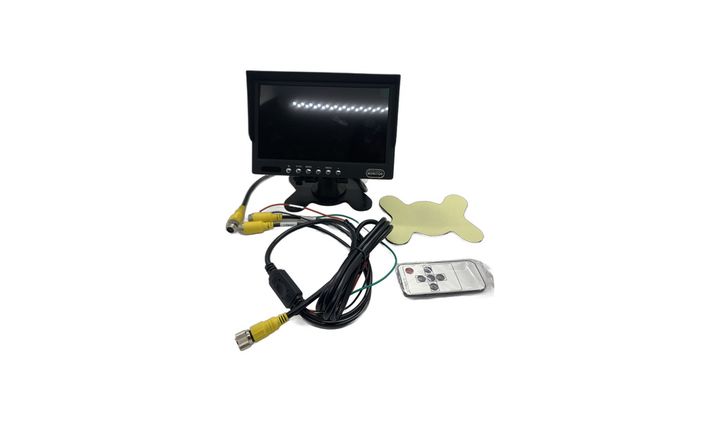

  • Accessories: remote control, power cable, user manual, sunshade and bracket pack; confirm the exact pack
  • Applications: truck, trailer, bus, engineering vehicle, RV and project builds

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm Model JPM-07D and the required 1-channel single-screen display
  • Confirm EWV at 400 cd/m2 or IPS at 500 cd/m2
  • Confirm the two camera feeds and assign V1 normal and V2 reverse-priority
  • Confirm AHD or CVBS and PAL or NTSC for the exact camera and harness
  • Confirm RCA or 4-pin aviation connector and the cable or harness length
  • Confirm the camera or MDVR interface and whether a male or female connector is required
  • Confirm whether one audio source, the sunshade, bracket or a camera kit is required
  • Confirm quantity, packaging, artwork and project-specific marking

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Check voltage and polarity before applying power
  • Connect the intended reversing feed to V2 and test the trigger on the vehicle
  • Route video and trigger cables away from heat, sharp edges and moving parts
  • Mount the monitor clear of the driver sight line and secure the bracket against vibration
  • Set brightness, contrast, colour, language and reverse delay in the OSD
  • Record the final OSD settings for repeatable installation and service
  • Clean the screen and sunshade with a soft cloth; do not use alcohol or abrasive cleaners
