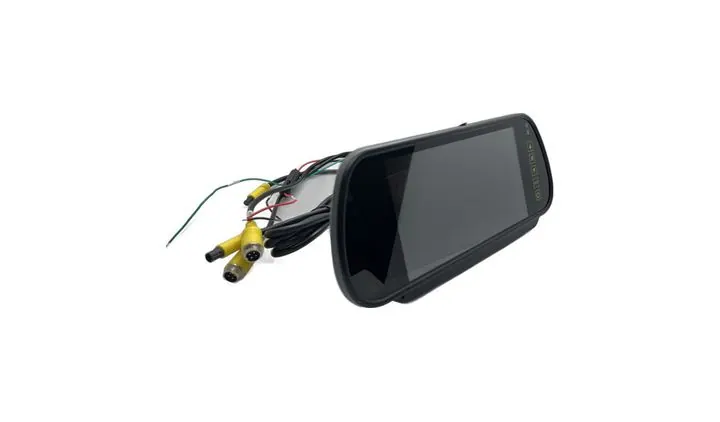

JPM-07B 7-inch 1-channel CVBS/AHD rear-view mirror monitor (1024 x RGB x 600 / DC 12-36V)

7-inch mirror display for truck, bus and commercial-vehicle rear-view monitoring, with separable power, mounting and signal options.

  • 7-inch TFT LCD with LED backlight and 1024 x R.G.B x 600 resolution
  • Viewing angle 85 degrees up/down and 85 degrees left/right
  • Light sensor automatically adjusts screen brightness to the surroundings
  • Base brief: one-channel CVBS/AHD video input

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPM-07B 7 selling points

Power, mounting and signal choices shown before the long specification.

The exact-model source folder supports a 7-inch mirror monitor with separable power, bracket and signal options. The professional power variant and optional split modes are kept separate from the current 1-channel CVBS/AHD base brief.

JPM-07B professional power-path diagram showing DC 12 to 36 volt input, protection functions and DC 12 volt camera output
01. Professional power path

Professional variant recorded above 30 V up to 40 V; confirm the power version at order.

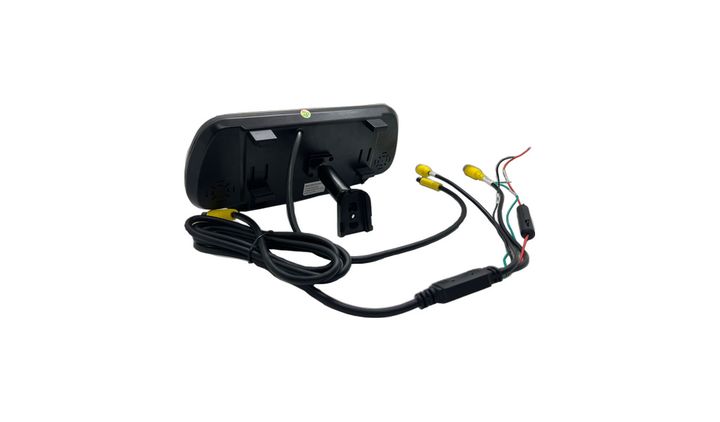

JPM-07B exact-model bracket photograph showing the rear housing, connector lead and mounting hardware
02. Mirror or bracket mounting

Mirror buckle or base bracket; standard 1# and more than three bracket options.

JPM-07B signal-option diagram showing V2 reverse priority and optional two-split or four-split screen modes
03. Signal options

Reverse priority and 2 or 4 split modes depend on the exact board and input configuration.

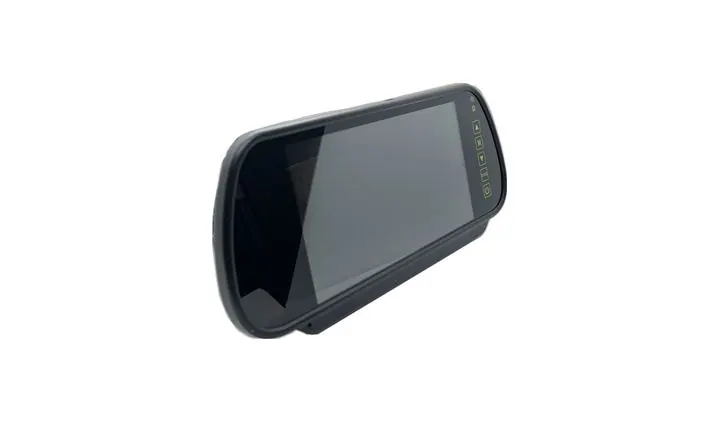

JPM-07B exact-model close product view from the approved edited-image folder
04. Compact mirror display

7-inch mirror housing with 1024 x RGB x 600 resolution and a driver-facing OSD.

01

Product and power-module construction

Source audio available

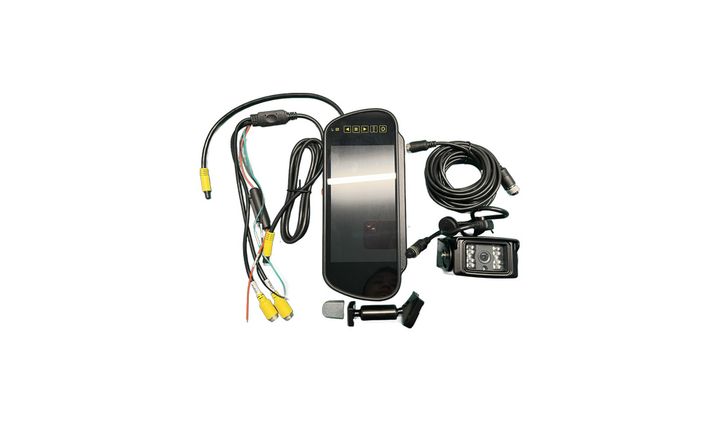

Exact-model source clip with audio, showing the monitor, cable set and separate power module.

02

Mirror and bracket installation

Source audio available

Exact-model source clip with audio, showing rear-view mirror and bracket handling.

03

Professional versus universal power test

Source audio available

Exact-model comparison clip with audio; use it to review the power variant with the supplier record.

JPM-07B 7 product features

  • 7-inch TFT LCD with LED backlight and 1024 x R.G.B x 600 resolution
  • Viewing angle 85 degrees up/down and 85 degrees left/right
  • Light sensor automatically adjusts screen brightness to the surroundings
  • Base brief: one-channel CVBS/AHD video input
  • DC 12-36V nominal input for 12V and 24V vehicle systems
  • Professional power variant recorded as working above 30V up to 40V
  • High/low-voltage protection and reverse-polarity protection
  • Anti-shock pulse rating 60V / 3A in the current source record
  • DC 12V camera power output avoids a separate camera supply feed
  • Mirror-buckle mounting fits a suitable existing rear-view mirror
  • Base/bracket mounting suits vehicles without a suitable mirror
  • Standard 1# car-specific bracket; more than three additional bracket options
  • Optional V2 reverse-priority mode when the matching input configuration is selected
  • Optional 2-split and 4-split monitor versions are available to confirm at order
  • OSD includes reverse guide lines, mirror/normal image, reverse delay and button lock
  • 4-pin aviation, RCA or BNC connector choices are confirmed per order
  • Black housing; operating -20 to +70 C and storage -30 to +80 C
  • No IP67, IP68 or IP69K rating is asserted without exact-model test evidence

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm the base one-channel CVBS/AHD requirement or the exact approved multi-input/split variant
  • Confirm DC 12-36V vehicle power and whether the professional above-30V power variant is required
  • Confirm the active input count, V1/V2 behavior and split-screen mode
  • Confirm the selected panel brightness; current records contain 500 and 700 cd/m2 values
  • Confirm AHD or CVBS source type and PAL or NTSC system
  • Confirm 4-pin aviation, RCA or BNC connector, harness length and pin-out
  • Confirm mirror-buckle or base/bracket mounting and the bracket number
  • Confirm whether DC 12V camera output and a speaker version are required
  • Confirm quantity, colour or neutral box, printing and branding

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Check voltage and polarity before wiring; connect ACC to ignition to prevent battery drain
  • Mount the display without obstructing the driver or interfering with vehicle controls
  • Secure the mirror buckle or bracket against vibration
  • Connect a V2 reverse trigger only when the selected configuration supports it, then test the switch
  • Set mirror/normal image, guide lines and reverse delay for the installed camera
  • Route and secure the leads away from heat, sharp edges and moving parts
  • Tighten the selected connector and fit the matching harness
  • Clean the display with a soft cloth only; do not use alcohol or abrasive material
