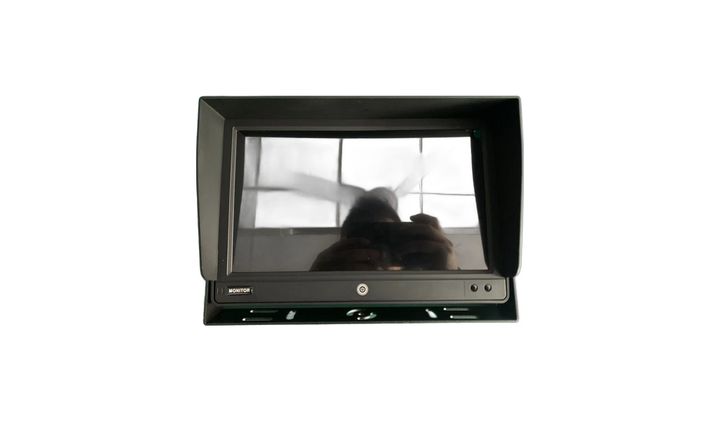

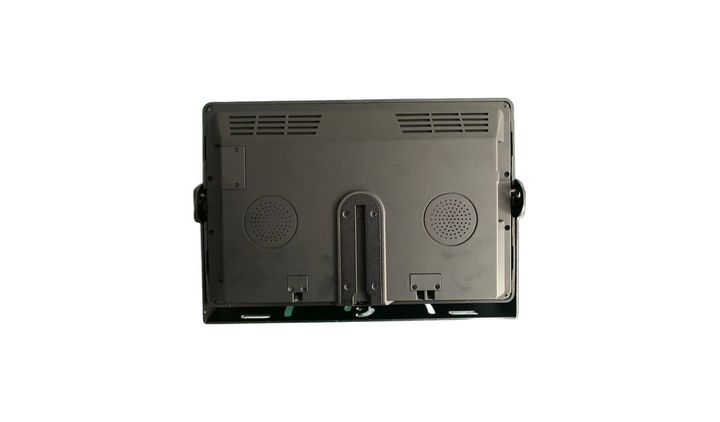

Main image and detail shots of the JPM-708 7.
Display Range · JPM
JPM-708 7

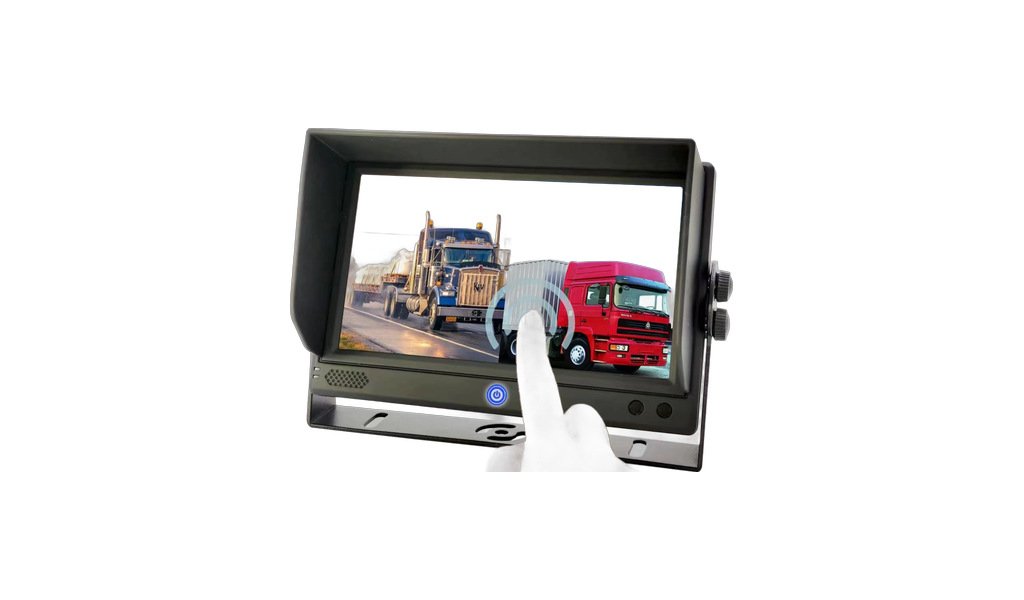

JPM-708 7-inch touch vehicle display (touch screen + touch power switch / CVBS and AHD compatible / menu can be
JPM-708 7-inch touch vehicle display (touch screen + touch power switch / CVBS and AHD compatible / menu can be switched to mirror)
Key features

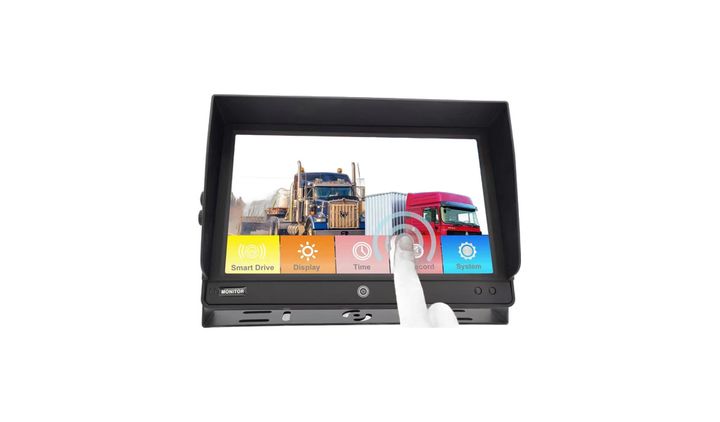

- The panel is made into a touch screen, and menus can be clicked directly on the screen without mechanical buttons
- With touch power switch: turning on/off is done on the touch panel, no additional power button is needed
- No mechanical keys = no problems with key wear, water ingress, or key jamming, making long-term use more worry-free
- The touch panel is flat and easy to scrub, and dirt and oil stains will be clean with just one wipe
- 7-inch car display, single-channel image
- Supports CVBS and AHD cameras, both old and new cameras can be connected
- With light-sensing function: automatically adjusts the screen brightness according to the ambient light, making it bright enough during the day but not dazzling at night
- Brightness and contrast can be adjusted in the touch menu
- You can switch the mirror image/original image of the picture in the menu without changing the camera or changing the cable
- Different installation directions such as rear view, side view and front view can be used to adjust the screen using the menu
- 1 video input, supports CVBS / AHD
- Reverse trigger: Automatically switch to reverse screen when engaging reverse gear
- The reversing auxiliary line can be switched on and off in the menu
- Multilingual menu (7 languages available)

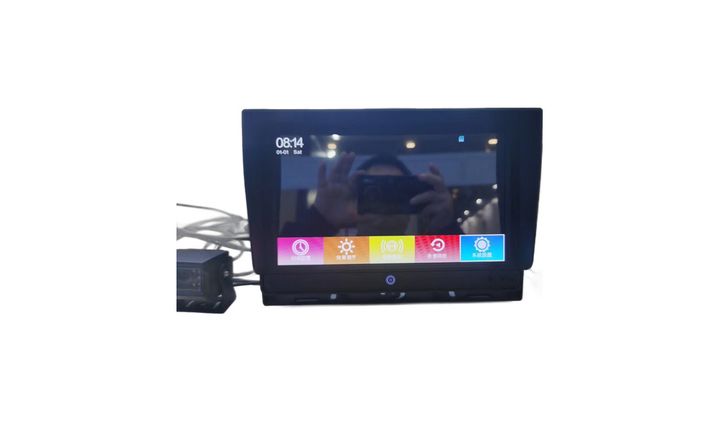

- Menu items: mirror/original image, reversing auxiliary line, brightness, contrast, language
- Comes with a user manual, which contains wiring diagrams and menu setting instructions
- Common to 12V / 24V models
- Connector optional: 4-pin aviation header / RCA
- The bracket is fixed and installed on the dashboard or sun visor
- Fits: trucks, trailers, buses, special-purpose vehicles, RVs
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm that you want a touch screen version (this model is a touch screen + touch power switch; if you need mechanical buttons, choose JPM-706)
- Confirm the camera type: CVBS or AHD (AHD is 720P / 960P / 1080P which one), it must match the monitor version
- Confirm the voltage (12V / 24V) and power supply method (ACC / normal power); use with overvoltage is strictly prohibited
- Confirm whether the reversing trigger line and reversing auxiliary line functions are needed
- Confirm connector type (4-pin aviation or RCA), cable length and whether an extension is required.
- Confirm how the unit connects to the MDVR. If it only ever works with an MDVR, a single male or female connector is cheaper. If it is sometimes used with a camera and sometimes with an MDVR, we supply a 30 cm female-to-female aviation lead.
- Confirm the bracket form and installation location (dashboard/sun visor)
- Confirm default menu language (7 in total)
- Confirm whether a complete kit with a camera is required, and which camera model.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm that the voltage is within the rated range, and do not connect the positive and negative poles reversely; Connecting to an overvoltage power supply (such as 50V normal power) will directly burn the monitor
- Connect ACC to the ignition switch to avoid draining the battery.
- Do not poke the touch panel with sharp objects (screwdrivers, pen tips) to avoid scratching or crushing the touch layer
- The trigger line is connected to the reversing light signal. After installation, test whether the reverse gear can be automatically switched
- The reversing auxiliary line is adjusted to fit according to the actual installation height to avoid misleading the driver
- Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
- Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
- Clean the screen with a soft cloth — never alcohol or anything abrasive.
