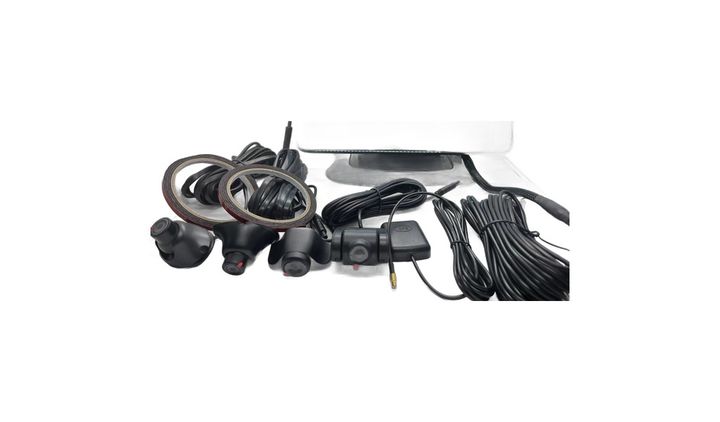

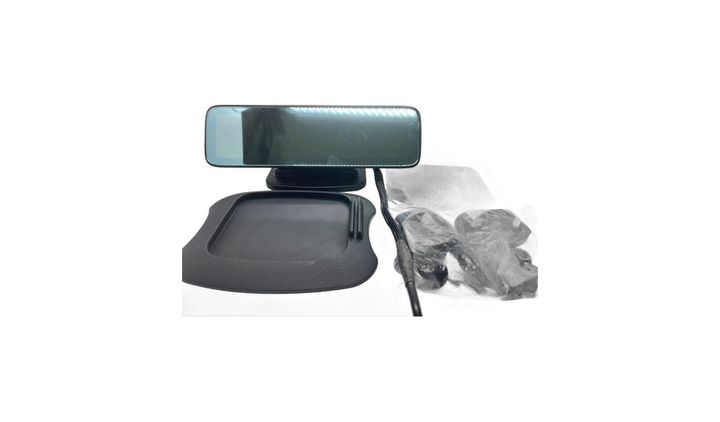

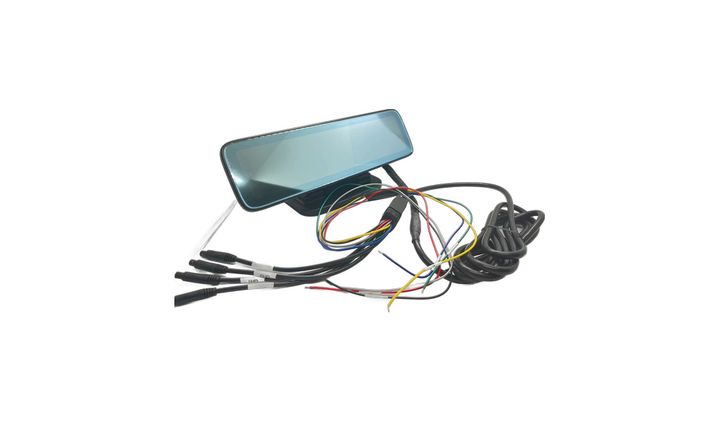

Main image and detail shots of the JFD-W14 4.

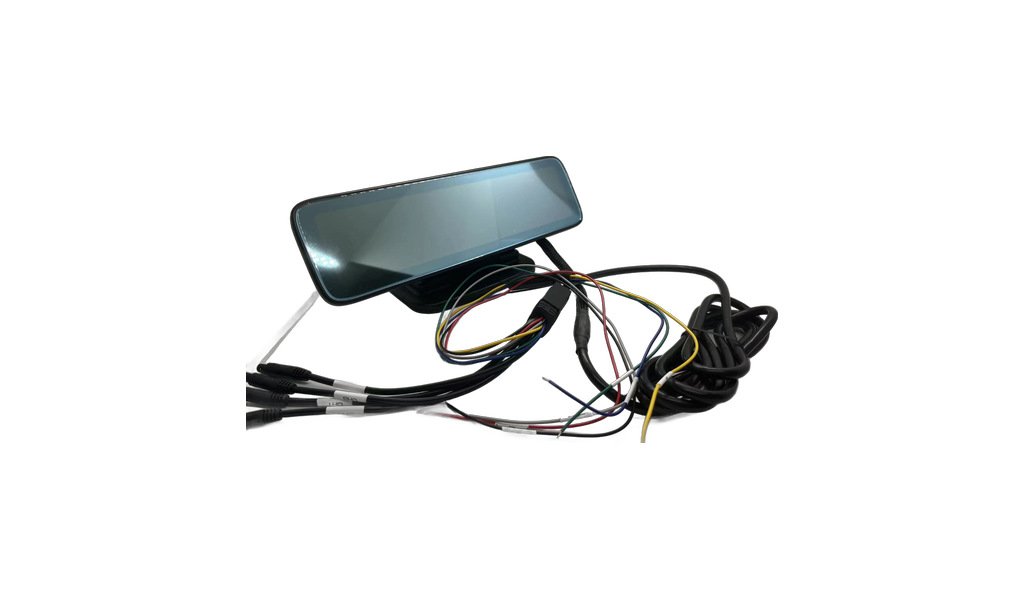

JFD-W14 4-channel heavy-duty driving recorder (ADAS standard / metal body about 2.5kg)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 4-channel heavy-duty dash cam / vehicle recorder, about 2.5 kg
- Records front, cabin, left and right cameras simultaneously
- ADAS (advanced driver assistance) included as standard
- Built-in local navigation
- Bluetooth function built in (no CarPlay)
- Camera view angle 120 degree
- Loop recording with memory card storage, video export for incident review
- Parking monitoring for up to 60 minutes
- Working current about 1.5A @12V; parking mode about 1mA @12V
- Metal housing built for trucks, buses and engineering vehicles
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This model does not have low-voltage protection, and the maximum parking monitoring time is 60 minutes; do not rely on this machine for parking monitoring when parking for a long time to avoid battery loss
- Does not support CarPlay, but supports Bluetooth function; if you have requirements for CarPlay, please choose another model
- Confirm the number of 4-way cameras and the cable length
- Confirm if 4G/GPS version and antenna are required and who provides the SIM card
- Confirm whether platform docking and remote monitoring are required
- Confirm the power supply method (ACC / normal power) and whether a step-down cable is needed
- Confirm language, logo, packaging and boot screen.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The host must be firmly fixed and vibration-absorbed. Do not connect the positive and negative poles of the power supply reversely
- Because it is a heavy-duty host, the installation location must be able to bear the weight. Do not simply fix it with ties
- Turn off the power before inserting or removing the memory card or SIM card
- The camera wiring harness and power cord should be routed separately to avoid image interference and snowflakes
- There is no low-voltage protection. It is recommended to manually disconnect the device or install a low-voltage protection module during long-term parking
- Check the recording time, image and loop overwrite periodically, and export important footage promptly.
- Route the cable away from hot surfaces and strong interference sources.
