JFD-W17

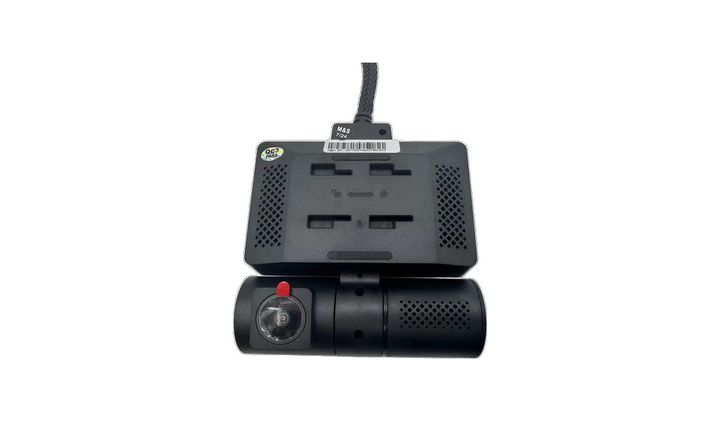

JFD-W17 (G56) 4G dual-lens touch screen recorder (front 1080P + rear 1080P / 3-inch touch screen)

Key features

4G mini dual-lens dash cam with 3 inch touch screen (640 x 360)
Android 10 system; Spreadtrum SL8541E quad-core Cortex-A53 @1.4GHz, Mali820@680MHz
RAM 2G + ROM 32G
Front GC2053 image sensor with 130 degree view
Rear camera 1920 x 1080P with 120 degree view
4G network bands: FDD LTE B1/2/3/4/5/7/8/12
WiFi hotspot, Bluetooth hands-free, FM transmitter
GPS navigation and GPS track playback
ADAS: LDWS (lane departure), FCWS (forward collision), FVWS (front vehicle move)
Server information can be set directly on the dash cam
Car Keeper App for personal use: remote live view, real-time location, user management, track playback
CMSV App for fleet management
Local playback and photo capture on the device; reverse parking view support
Loop recording 1 / 3 / 5 minutes; date and time mark on video
Voice recording; G-sensor; multi-language support
Settings protected by password (default 987456)
3 wires in the standard converter: yellow = constant power, red = ACC, black = ground
TF card up to 128G with Class 10 or above; GPS antenna and rear camera plug into the dash cam

Points to confirm before production so the unit arrives ready to fit.

Confirm the front and rear lens angle versions: the manual states 130° front and 120° rear. There is also an actual measurement of 100° front/110° rear in the catalog, which is subject to factory confirmation
The setting requires a password (default 987456). Confirm whether to change the password before giving it to the end user
Confirm App: Car Keeper for individual users, CMSV for fleet users, both require 4G internet connection
Confirm who provides the SIM card frequency band (needs to support FDD LTE B1/B3) and data plan
Confirm the TF card capacity (maximum 128G, Class 10 or above) and whether it is included with the goods
Confirm whether a rear camera and its cable length are required.
Confirm voltage: 9-16V, suitable for 12V vehicles; 24V vehicles require an additional voltage step-down
Confirm language, logo, packaging and boot screen.
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

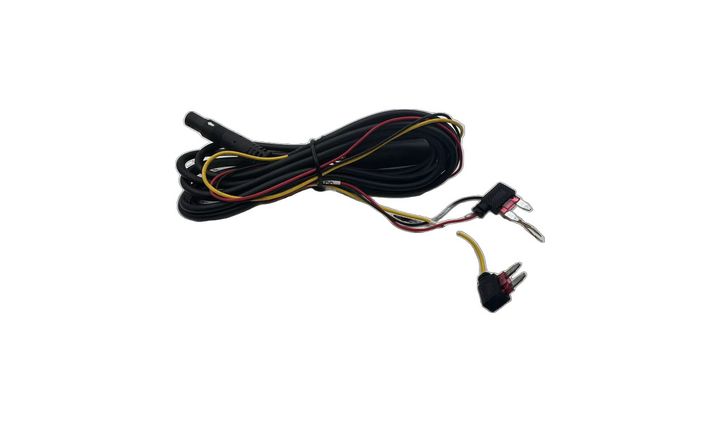

Three-wire connection method: the yellow wire is connected to the fuse box for normal power, the red wire is connected to ACC, and the black wire is grounded. The positive and negative poles cannot be connected reversely
Complete the SIM card, TF card installation and App binding test indoors before loading into the vehicle
The power must be cut off before inserting or removing the SIM card or TF card

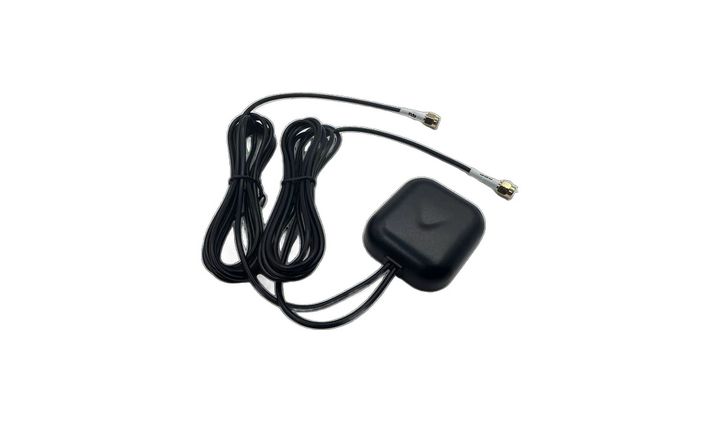

Plug in the GPS antenna and place it in an unobstructed position, otherwise positioning and track playback will be inaccurate
Binding the App for the first time: Disconnect the WiFi from your phone first, open the App and scan the barcode to bind the device
If the App continues to fail to connect, delete the frequently used WiFi saved in the phone, restart the phone and then connect again
Check the recording time, image and loop overwrite periodically, and export important footage promptly.
Route the wires away from high-temperature areas and strong interference sources, and run the camera harness and power cord separately
