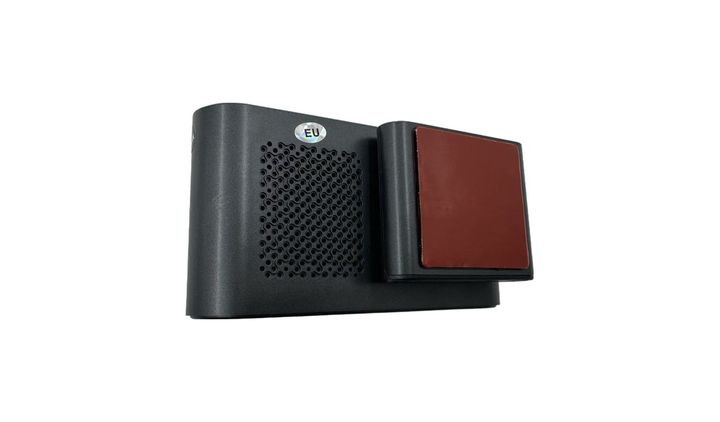

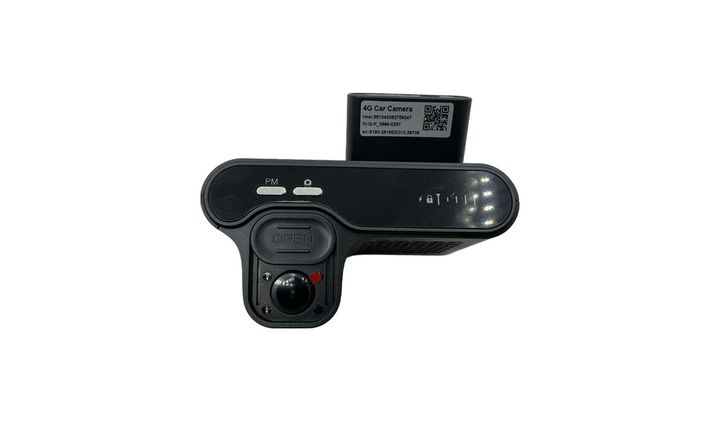

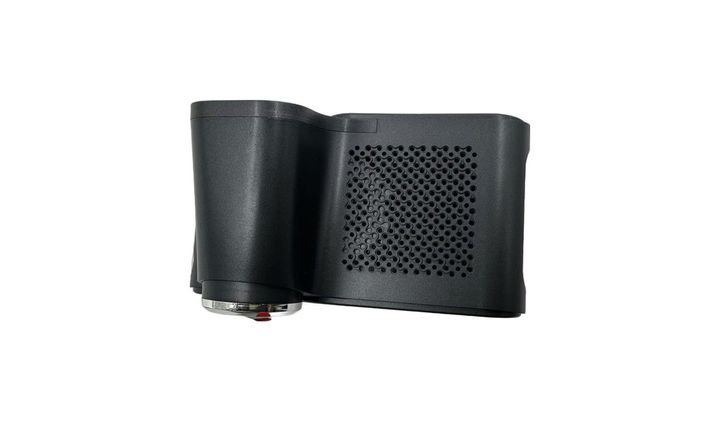

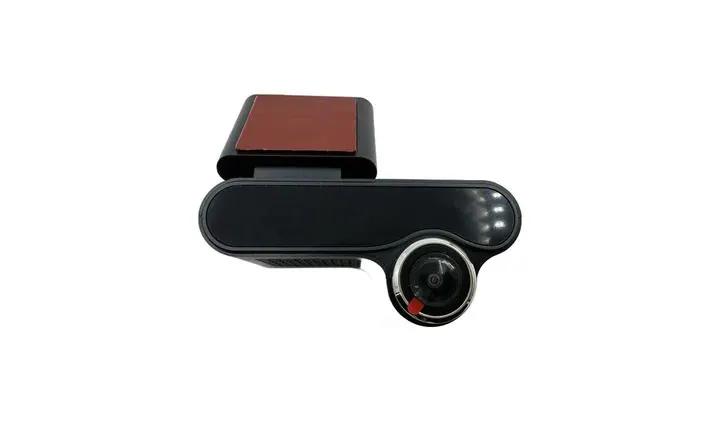

Main image and detail shots of the JFD-W20 4G.
JFD-W20 4G radar cloud dash camera with front and cabin recording
- Front and rear dual-camera recording with 4G remote viewing, GPS positioning and LBS base-station assistance.
- Front and rear 24 GHz millimeter-wave radar: documented detection ranges are 3 m at the front and 5 m at the rear.
- Radar plus PIR sensing works in low-power parking mode. The device log confirms parking wake-up events with both PIR and radar input.
- Parking mode starts automatically after the vehicle is switched off; driving mode starts automatically after the vehicle is started.
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
JFD-W20 4G product features
- Front and rear dual-camera recording with 4G remote viewing, GPS positioning and LBS base-station assistance.
- Front and rear 24 GHz millimeter-wave radar: documented detection ranges are 3 m at the front and 5 m at the rear.
- Radar plus PIR sensing works in low-power parking mode. The device log confirms parking wake-up events with both PIR and radar input.
- Parking mode starts automatically after the vehicle is switched off; driving mode starts automatically after the vehicle is started.
- Fast parking-event wake-up recording: less than 0.3 seconds in low-power mode.
- UboxPro App supports live view, GPS tracking, track playback, multiple devices and remote-view sharing.
- Detection area and arming time are configurable in the App. Available sensitivity options follow the current production firmware.
- Event notifications can be sent to the phone through the App; delivery depends on phone notification permission, account login and network coverage.
- Optional cloud service stores alarm clips online. Normal recordings remain on the TF card; cloud storage requires a separate subscription.
- Privacy Mode disables the cabin-camera live view and recording and turns off audio.
- Emergency Record locks the current video so it is not overwritten.
- Front camera: 1920 x 1080 / 30 fps with interpolation support up to 3 MP. Rear camera: 1920 x 1080 / 15 fps. App playback: both cameras at 1920 x 1080 / 15 fps.
- 2 MP 1/2.9-inch CMOS sensor, H.264 / H.265 recording, AAC / G.726 audio and two-way voice intercom.
- Full-colour night vision for the road-facing camera and 940 nm IR for the cabin camera without visible red glow.
- Low-voltage protection cuts power below 11.8 V to reduce the risk of draining the vehicle battery.
- IP65-rated housing, a -30 C to +60 C operating range and an Ingenic T32ZN low-power processor.
- Bluetooth pairing, QR-code setup and sound-wave Wi-Fi configuration.
- OBD power cable or ACC hardwire kit. MicroSD storage supports 4 GB to 128 GB, Class 10 or above.
- Separate Europe and Americas 4G versions are available; confirm the destination version before ordering.
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the Europe or Americas version; LTE bands and cloud platform differ by region.
- Confirm whether cloud storage is required and the required subscription period. Cloud service is charged separately.
- Confirm the power method: OBD cable or ACC hardwire kit.
- Confirm whether a TF card is required. Supported capacity is 4 GB to 128 GB, Class 10 or above.
- Confirm whether a Nano-SIM data card is supplied and who provides the data plan.
- Confirm the required parking-detection direction, detection area and arming schedule.
- Confirm language, logo, packaging and boot screen.
- Confirm quantity, packing and printing requirements.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The supplied unit has no PC player; recordings are viewed and downloaded through the UboxPro App.
- The cabin camera may show a purple or dark tint in strong direct sunlight because of the housing structure. This is a known optical limitation.
- Long-press the PM key to enter Privacy Mode; the cabin camera and audio are then disabled.
- Event notifications require the phone to allow UboxPro notifications and the device to maintain account and network connectivity.
- Cloud service uploads alarm clips only. Continuous ordinary video remains on the TF card.
- Low-voltage protection cuts power below 11.8 V; check battery condition before long parking periods.
- File suffixes: C vehicle start, B parking power-up, P radar event, G collision event, T continuous driving record, D driving record, M manual alarm and N network wake-up.
- Keep the radar area and camera lenses clean; mud, dust and metal obstructions can reduce detection performance.
- Check recording, cloud upload, notifications and GPS tracks periodically.
