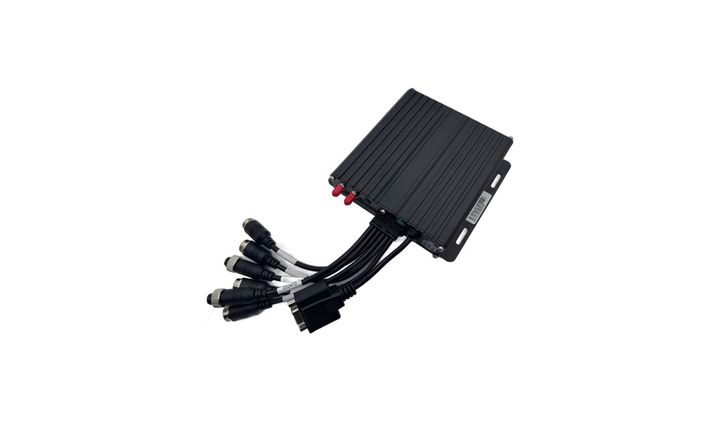

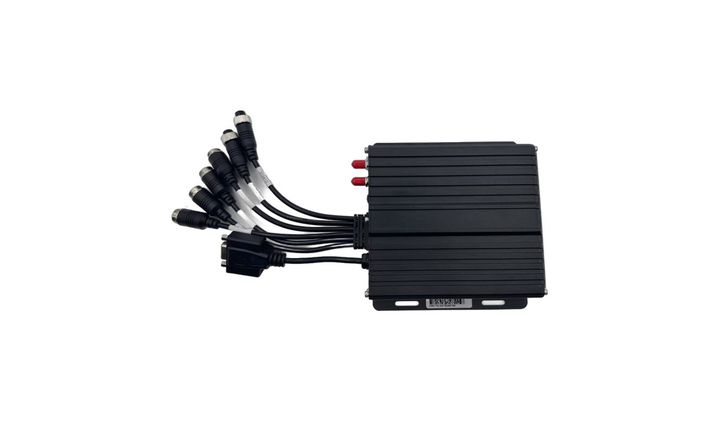

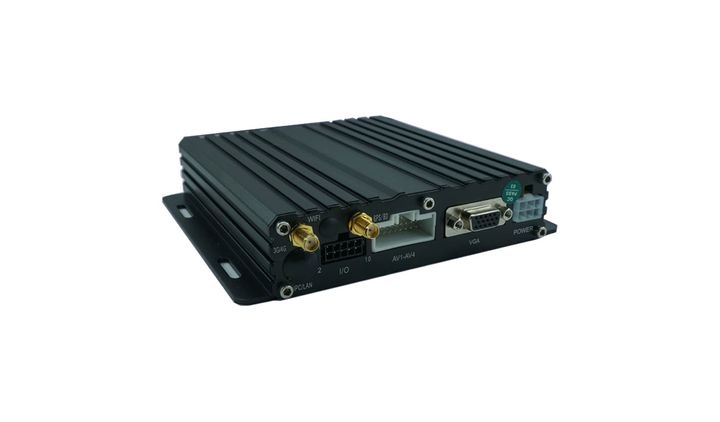

Main image and detail shots of the MDVR-504.
Recording · MDVR & JFD
MDVR-504
MDVR-504 (MR9504E-B1 / 9504E) 4-channel 1080P car video recorder (dual SD card player)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 4-channel 1080P mobile DVR with SD card storage (card machine), no hard disk
- 4CH 1080P AHD / TVI / CVI / CVBS + 1CH IPC five-in-one video input, 4-way 25fps real-time encoding
- H.265 / H.264 dual encoding: about half the storage of H.264 at the same image quality
- Dual SD card slots, up to 512GB per card (folder parameter lists 2 x 256GB, to be confirmed)
- 9-36V DC professional vehicle power supply with under-voltage / short-circuit / reverse-connection protection
- Smart power management: low-voltage automatic shutdown, low consumption after flame-out
- Built-in supercapacitor: no data loss or card damage on sudden power outage
- Video output: 1 x VGA + 1 x CVBS (parameter.txt: 1 aviation + 1 VGA)
- Camera input: 4 x M12-4 aviation connector (aviation connector); IPC: 1 x M12-6 aviation connector
- GNSS GPS / BD / GLONASS built in, high sensitivity, fast positioning, GPS drift suppression algorithm
- Built-in 4G module (LTE / HSPA / WCDMA); WiFi module optional (802.11b/g/n, 2.4GHz)
- Interfaces: CAN, RS232, RS485, TTL, 1-WIRE, speed pulse, 9 alarm inputs, 2 alarm outputs
- Built-in G-sensor: harsh acceleration / deceleration / turning, rollover and collision alarms
- Reversing image ranging assistance; image horizontal / vertical mirror adjustment
- ADAS / DSM / BSD active safety on the AI version (MA9504E): LDW, HMW, FCW, fatigue, distraction, smoking, phone call, BSD 3-level alarm with voice prompts
- Supports Yunweibao 3.0 App setup and mouse operation, up to 8 center servers (JT/T808-2013 / 2019, JT/T905, Su Biao / Guangdong Biao / Sichuan Biao)
- Chinese / English OSD; typical consumption AVG 9W, static 12V@3mA
- Housing size 142 x 152 x 32 mm (factory SPEC 142 x 153 x 33 mm)
- CE / RoHS / FCC, 1 year warranty
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This model is an SD card machine (without hard disk); the storage capacity directory parameter is written as 2×256GB, and the factory SPEC is written as a single card up to 512GB. Please confirm the actual configuration before placing an order
- Confirm whether you want the normal version (MR9504E) or the AI active safety version (MA9504E, including ADAS / DSM / BSD)
- Confirm options: GPS/Beidou, 4G, WiFi, IPC camera, CAN, TTS speaker, intercom handle, alarm button
- It is not equipped with a remote control by default. If you need a remote control, please specify separately
- Confirm the number of cameras, cable length and connector type (audio and video input is M12-4 aviation connector)
- Confirm whether the ministry standard agreement (JT/T808-2013/2019, JT/T905) and platform integration are required, and who will provide the SIM card?
- Confirm the power supply method (ACC ignition wire/normal power) and whether delayed shutdown is required
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The power supply must be between 8-36V (12V or 24V is recommended); the red wire is connected to normal power, the orange wire is connected to ACC, and the black wire is grounded. The positive and negative poles cannot be reversed
- The host must be installed horizontally and fixedly, with an inclination angle of no more than 30 degrees, and cannot be installed suspended in a position subject to long-term vibration
- The installation location must be waterproof, shockproof, and interference-proof, and away from air-conditioning outlets and in-car audio-visual and intercom equipment
- The GPS antenna should be placed horizontally, with no obstruction above it, and at least 50cm away from the camera and recorder; the 4G antenna should not be bundled with messy wiring harnesses
- The power must be cut off before inserting or removing the SIM card or SD card to avoid data damage
- Unused channels must be deactivated in the menu, otherwise video loss alarms will continue to be reported
- Regularly check the recording time, whether the picture is complete, whether the loop coverage is effective, and export important videos for backup in a timely manner
- The fuse of the fuse must be above 10A; the diameter of the extension cord should not be less than 1.5mm², and the diameter of the signal line should not be less than 0.5mm²
