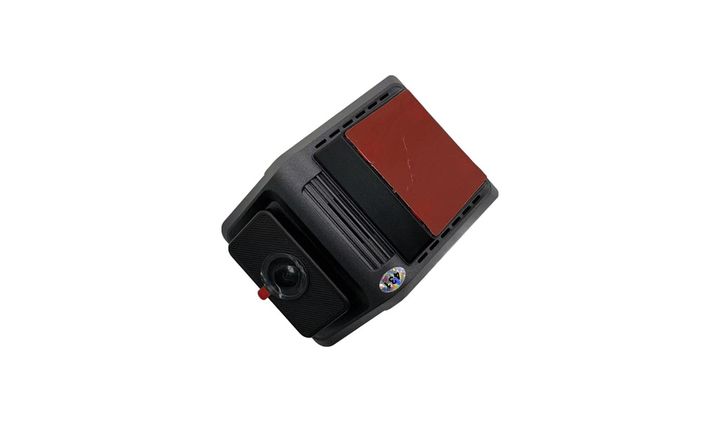

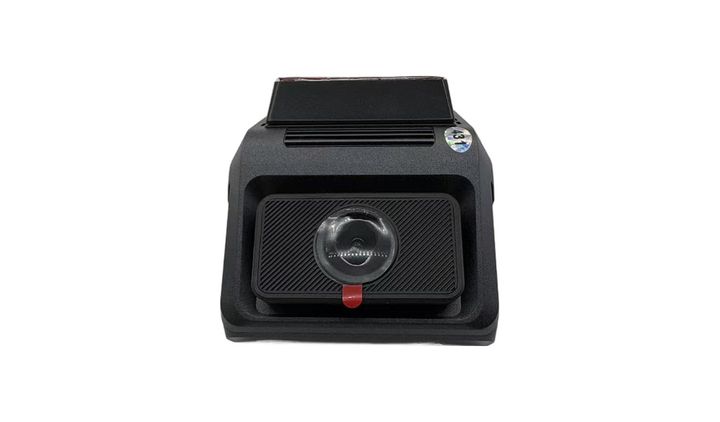

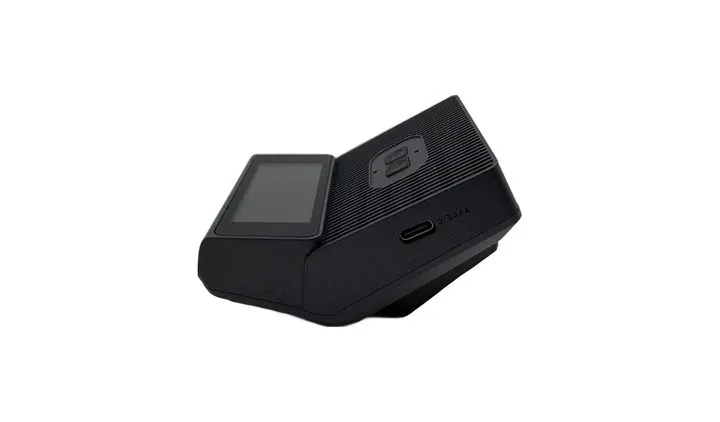

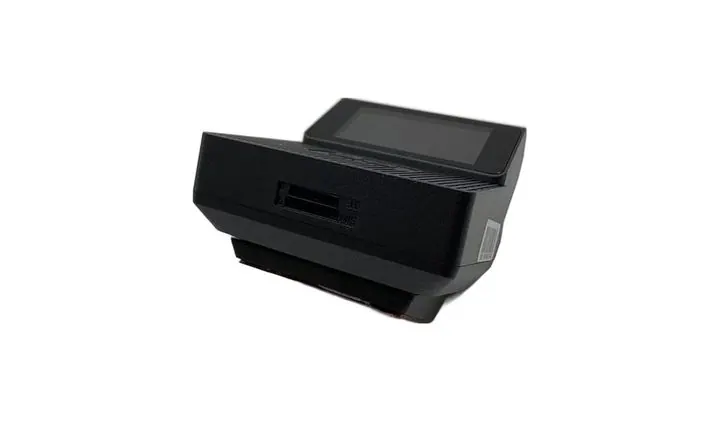

Main image and detail shots of the JFD-W21.
JFD-W21 (P87) 4G dual lens 2K + 1080P mini recorder (2-inch screen / Cloudspirit)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 4G dual-lens mini dash cam: 2K front + 1080P rear, with WiFi, GPS and remote monitor
- Chipset: Allwinner V853
- 2 inch IPS screen with 320 x 240 display resolution
- Storage: RAM 128MB + ROM 512MB, Linux system
- Front camera GC2063 with 135 degree view angle; rear camera GC2033 with 125 degree view angle
- Front 2K, rear 1080P@25fps
- Built-in GPS antenna; WiFi 802.11b/g/n 2.4GHz
- 4G bands: FDD LTE B1, B3; TDD LTE B38, B39, B40, B41
- 4G remote monitor on Android phone or iPhone via the free Cloudspirit app
- Live video check, two-way communication, remote download of video files from the TF card
- G-sensor and loop recording support
- Built-in loudspeaker and microphone
- Video format TS H.264; max TF card 128G with Class 10 or above
- Power input: Type-C adapter kit, fits 9-16V
- Working temperature -20°C to +70°C, storage -30°C to +80°C
- Package: 1 x dash cam, 1 x back cam with 5 m cable, 1 x convert adapter, 1 x user manual, 1 x install bracket
- Package carton: 20pcs/carton, 12.7kg, 47 x 37 x 30 cm
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- The screen size information is inconsistent: the datasheet says 2-inch IPS 320x240, and the firstcloud quotation says 1.9-inch. Please confirm before placing an order
- The front view angle information is inconsistent: the datasheet says 135°, the quotation says 150°, which is subject to factory confirmation
- Confirm whether you need a truck pull-back camera and the length of the cable (standard pull-back cable is 5 meters)
- The maximum size of TF card is 128G, Class 10 or above, please confirm whether it is included with the goods
- Confirm the voltage is 9-16V; 24V vehicles need to be equipped with a step-down voltage
- Confirm who provides the SIM card frequency band (FDD LTE B1/B3) and data plan
- Confirm if CMSV6 platform and server are required
- Confirm language, logo, packaging and boot screen.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- When using for the first time, power off first, insert the SIM card and TF card, and then power on again
- Before connecting the mobile phone to the recorder WiFi to view the video, it is recommended to disconnect other saved WiFi on the mobile phone
- If the App continues to fail to connect, unbind the device in the App and restart the phone before connecting again
- Fix the main unit securely and never reverse the power polarity.
- The GPS antenna needs a clear view of the sky, or positioning and trip tracks will be inaccurate.
- Check the recording time, image and loop overwrite periodically, and export important footage promptly.
- Route the cable away from hot surfaces and strong interference sources.
