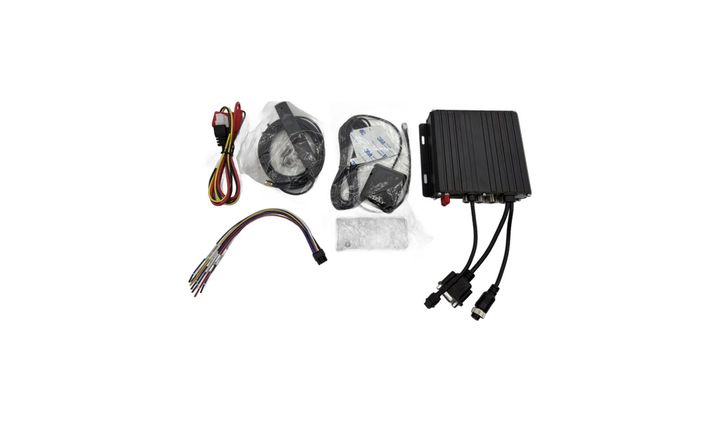

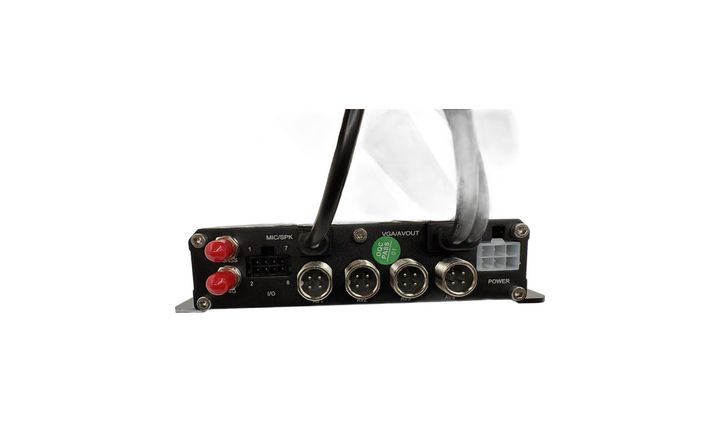

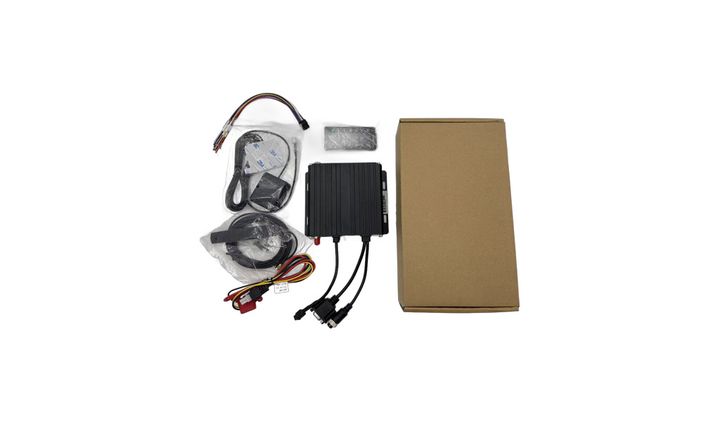

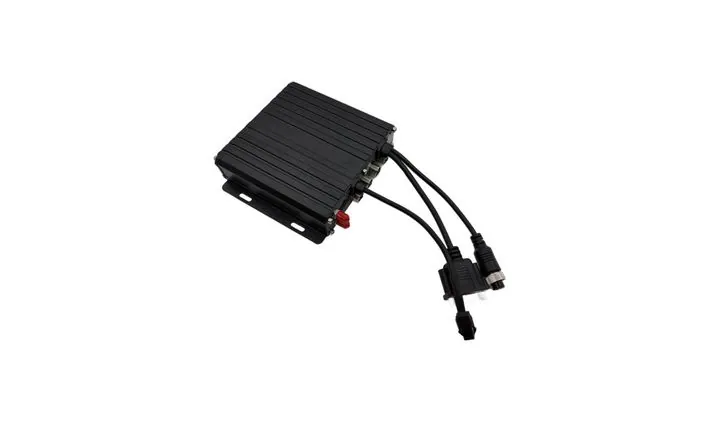

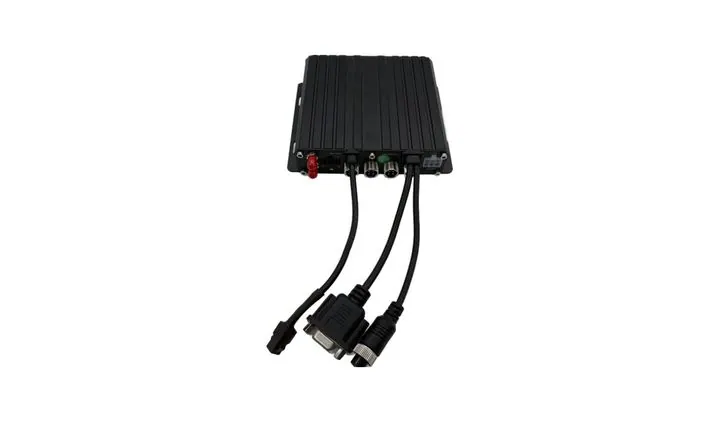

Main image and detail shots of the MDVR-504EC.
MDVR-504EC (MR9504EC / 9504EC) 4-channel 1080P wide-voltage car video recorder (single SD card player)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 4-channel 1080P SD mobile DVR with single SD card slot, no hard disk
- 4CH 1080P AHD / TVI / CVI / CVBS four-in-one video input, 4CH 1080P live preview and storage
- H.265 / H.264 dual encoding, high compression ratio and clear image
- 9-32V DC wide-voltage professional vehicle power supply
- Under-voltage / short-circuit / reverse-connection protection with smart power management (low-voltage shutdown, low standby consumption)
- Built-in supercapacitor: no data loss or card damage on sudden power outage
- Supports UPS power input
- Video output: 1 x VGA + 1 x aviation AV output (VGA optional)
- Camera input: 4 x M12 aviation connector (aviation connector)
- Alarm input 4 digital inputs (positive / negative trigger), 1 alarm output, 1 RS232 (TTL), 1 USB 2.0 for USB stick or mouse
- GPS / BD optional, supports antenna plug-in / unplug / short-circuit detection
- Built-in 4G module, LTE / HSPA / WCDMA
- Special file management system encrypts and protects the data; SD card bad-track detection keeps video continuous and extends card life
- Reversing image ranging assistance; image horizontal / vertical mirror adjustment and 90 degree rotation
- Unique GPS drift suppression algorithm
- Compact metal housing 140 x 153 x 31 mm, typical consumption 3.5W (without peripherals)
- Chinese / English / Russian OSD, user and admin two-level passwords, mouse operation
- Card machine for taxis, vans, buses and light commercial vehicles
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This model is a single SD card machine (9504EC basic model), confirm the capacity requirements, and supports a maximum of 512GB
- This model does not support remote control and can only be operated with a mouse. It is not equipped with a remote control by default
- Confirm if GPS/Beidou version and antenna are required
- Confirm the 4G version and frequency band requirements (the frequency bands are different in different sales areas), and who provides the SIM card
- Confirm options: VGA output, IPC camera, WiFi, TTS speaker, intercom handle, alarm button
- Confirm the number of cameras, cable length and connector type (M12 aviation connector)
- Confirm whether ministry standard agreement (JT/T808, JT/T905) and platform docking are required
- Confirm power source (ACC or permanent live) and whether delayed shutdown is required.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The power supply is 9-32V; the red wire is connected to normal power, the orange wire is connected to ACC, and the black wire is grounded. The positive and negative poles cannot be reversed
- The host is fixed and installed horizontally to avoid hanging and long-term strong vibration positions
- The installation location must be waterproof, shockproof, and interference-proof, and away from air-conditioning outlets and in-car audio and video equipment
- The GPS antenna should be placed horizontally with no obstruction above it; the 4G antenna should not be bundled with messy wiring harnesses
- The power must be cut off before inserting or removing the SIM card or SD card
- Unused channels must be deactivated in the menu, otherwise video loss alarms will continue to be reported
- Regularly check the recording time, screen and loop coverage, and export important videos for backup in a timely manner
- The fuse of the fuse must be above 10A; the diameter of the extension cord should not be less than 1.5mm², and the diameter of the signal line should not be less than 0.5mm²
