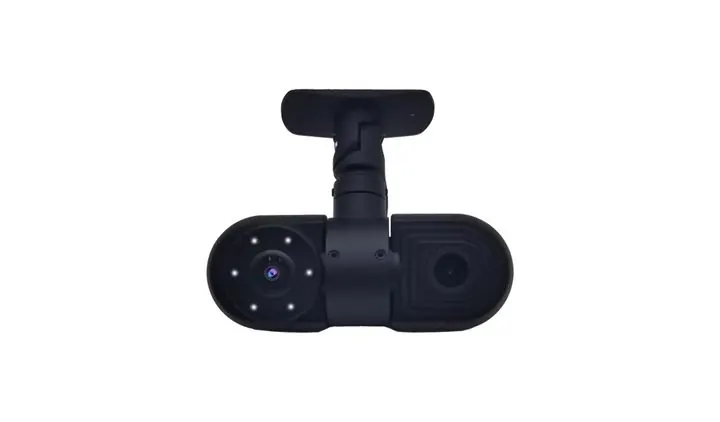

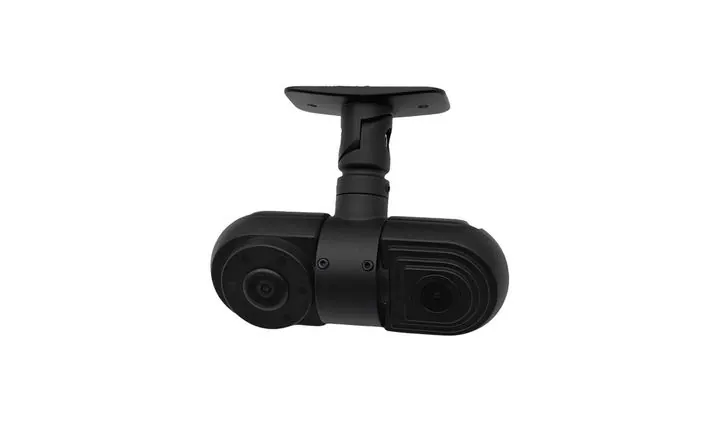

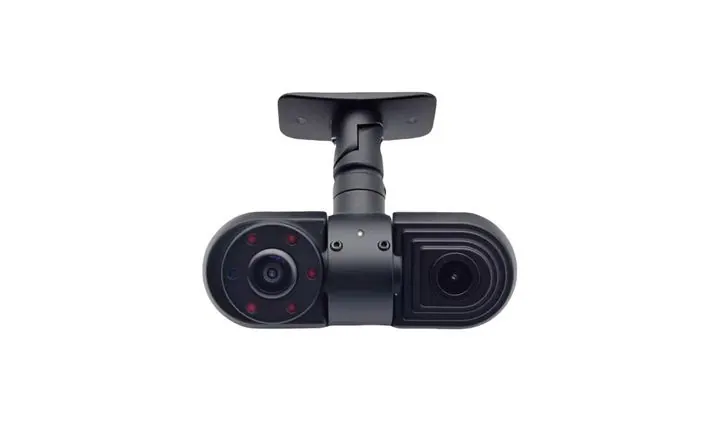

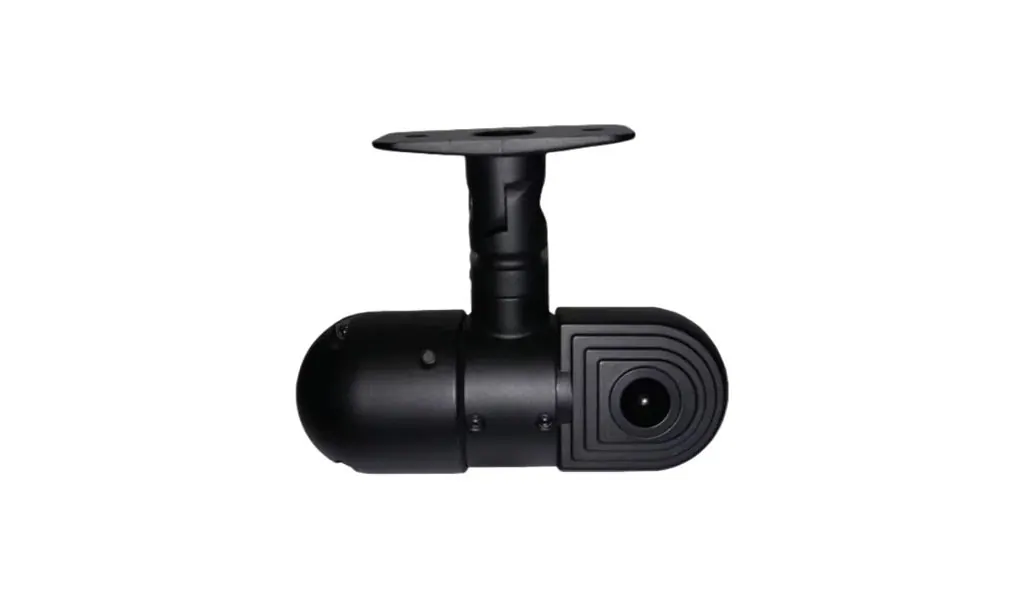

JPC-174D dual-lens vehicle camera (130° front + 90° cabin, both lenses 360° adjustable, 1080P AHD)

Name: JPC-174D — JPC-174D dual-lens vehicle camera (130° front + 90° cabin, both lenses 360° adjustable, 1080P AHD)
Brand: JFA-CAM

Get a Quote for JPC-174D Download datasheet (PDF · 35 KB) Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPC-174D datasheet — full specification, ordering notes and installation guidance as a PDF (35 KB). Open it here or ask us to email it with your quotation.

Key features

Dual-channel AHD: one lens on the road ahead (130°), one on the cabin (90°) - two views from one housing
Both lenses rotate 360°, so the angle is set after the bracket is mounted, not before
1080P AHD output, PAL
Standard picture with no parking guide lines: nothing appears on the monitor that was not there before
Built-in IR-CUT: colour by day, monochrome by night, so the cabin is still readable in the dark
Standard 4-pin aviation connector: plugs into an MDVR or monitor directly
12V DC supply, low consumption
Small square housing: headliner, dash or A-pillar, without blocking the driver's view
Suits taxi, ride-hailing, coach and truck fleets: road ahead and cabin in one unit

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the angles: 130° front / 90° cabin (the default for this model; other angles to order)
Confirm the standard: PAL (default); NTSC on request
Confirm resolution: 1080P AHD
Confirm the channel count: two outputs, one per lens, so the recorder needs two free channels
Confirm the connector (4-pin aviation by default) and cable length (1 m / 5 m / 10 m)
Confirm whether audio (microphone) is needed - check local rules on recording in the cab
This model ships without parking guide lines; say so before ordering if they are required
Confirm the mounting position and whether an extra bracket is needed
Quantity, packaging (colour box / neutral box) and printing to be confirmed before production

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Check the supply is 12V DC and the polarity is correct before connecting
Mount the front lens clear of the wiper sweep and the airbag zone
Aim the cabin lens at the driver or passenger area, not at the glass - infrared reflects back at night
Set and lock each lens separately; vibration moves a loose one
Route the cable along the original harness and secure it so it cannot catch on the driver
Push the connector fully home and fit the weather boot
Wipe the lenses periodically - dust and fingerprints cost night image quality
With the microphone version, check local rules on recording in the cab and tell the owner
