CAB-01S-3 spring wire set (4m/3ch)

Key features

Heavy-duty spring coil trailer cable kit, 4 m extended, 3ch

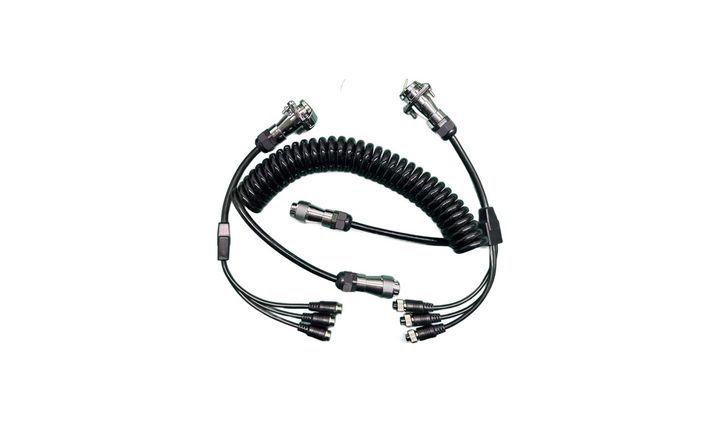

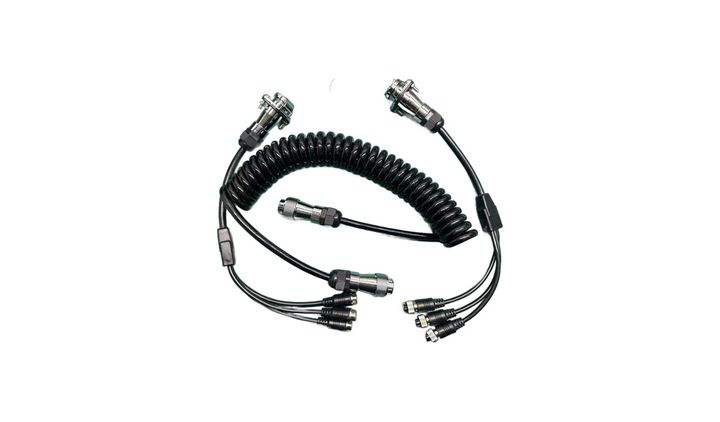

Kit: 1 x 4 m spring cable + 0.3 m male 3ch short cable + 0.3 m female 3ch short cable (per 100 kits)
Copper-core conductors with aluminium-foil shielding for stable video and power transmission
Spring coil design expands and retracts - stays tidy and resists stretching between tractor and trailer
Professional version OD 5.5 mm vs standard 4.5 mm jacket - thicker insulation and inner construction

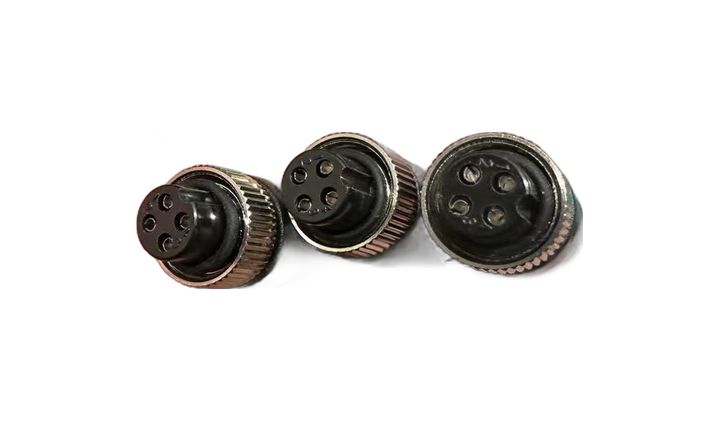

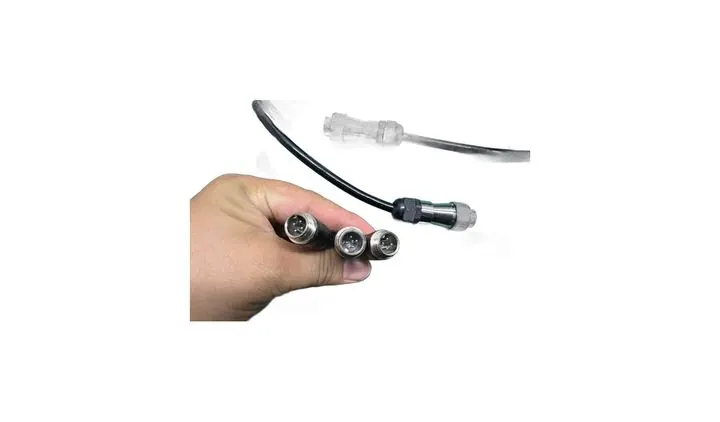

Male-to-female as standard, custom connectors and lengths available
Suitable for trailer truck, semi-trailer, caravan and fleet / MDVR systems

Points to confirm before production so the unit arrives ready to fit.

Fix the cable length in advance.
The standard cable is male-to-female; specify in advance if you need another combination.
The pin-out must always be confirmed (1 B+ / 2 B− / 3 audio / 4 video). Definitions differ between vehicle manufacturers.
Confirm that the number of channels is 3ch, which corresponds to the number of cameras to be connected

Voltage, wiring, sealing and maintenance guidance for the installer.

Secure the cable while routing it, so it cannot be pulled or chafed through.
Keep clear of the engine and other very hot surfaces.
Once wired, fit the waterproof boot and tighten the plug.
Do not leave the coiled cable at full stretch, and avoid sharp right-angle bends.
Periodically check the plug pins for oxidation and water ingress.
