FVC-K2 77GHz millimeter wave radar blind spot warning system (with 5.5-inch display)

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

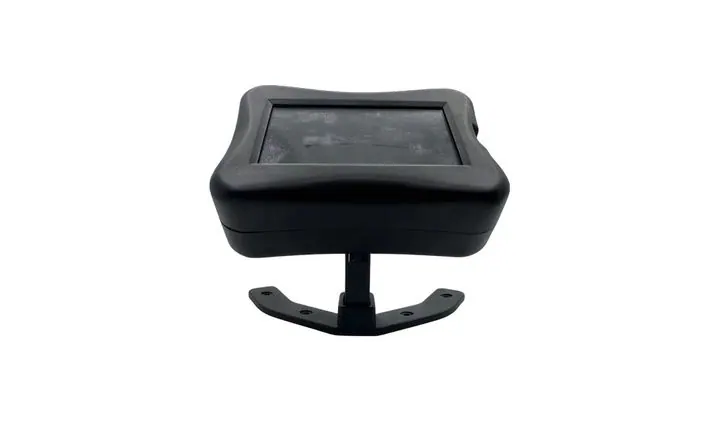

77GHz millimetre-wave radar + 5.5 inch monitor: detects vehicles and people in the blind spot and shows them on screen
Three warning zones with distance display: far zone green frame (no buzzer), middle zone yellow frame (intermittent buzzer), near zone red frame (continuous buzzer)
No alarm but display when far away, alarm and display only when close - reduces false alarms in normal traffic
Two warning modes: 1) all targets in the set zone trigger warning (far / near / static), 2) only targets moving closer to the radar trigger warning
Flash storage: 60K CAN memory for 10,000 alarm records; TF card data export
Low-speed vehicles: can be installed front or rear; road vehicles: rear installation recommended
ACC wiring: the screen powers up about 1-2 s later than ACC
Default password 8888; IP67 radar housing

Points to confirm before production so the unit arrives ready to fit.

Confirm the warning mode (all targets in the area / close to the target only) and the distance settings of the three warning areas
Confirm the installation position: low-speed vehicles can be installed at the front or rear, and road vehicles are recommended for rear installation
Confirm single channel or dual channel (two channels radar + one monitor)
Confirm ACC power extraction method and wire harness length
Quantity, packaging and silk screen requirements stated in advance moq 200kit

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the voltage, ACC, positive and negative poles, and do not connect them reversely
The radar installation surface should face the detection direction and avoid being blocked by metal structures and mud
It is normal for the screen to light up 1-2 seconds later than ACC
When using it for the first time, set the warning area and sensitivity first, and then conduct a road test
The default password is 8888, it is recommended to change it after loading
Regularly clean the mud on the radar surface to ensure detection range
