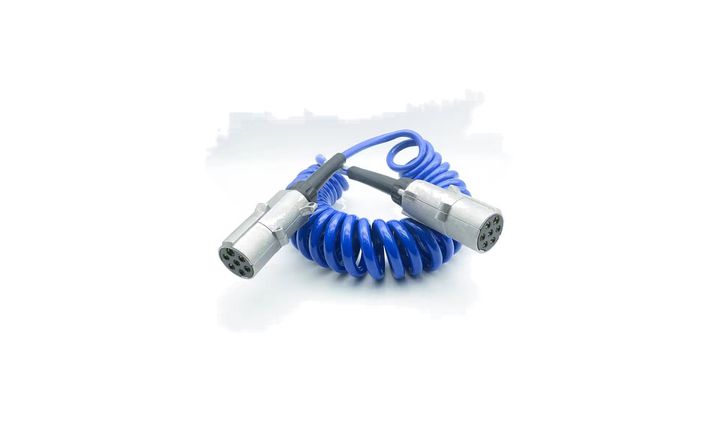

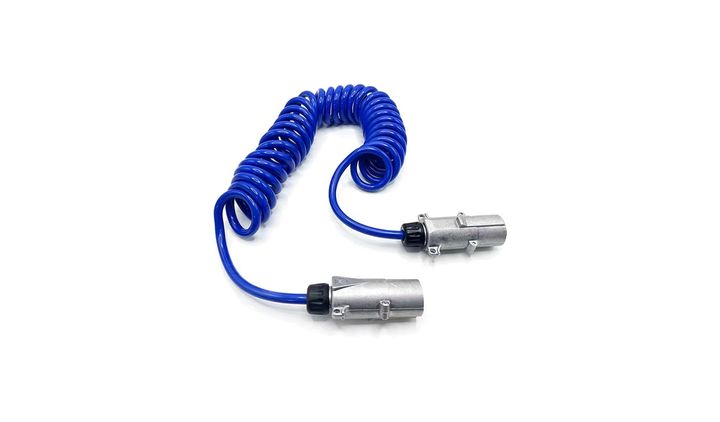

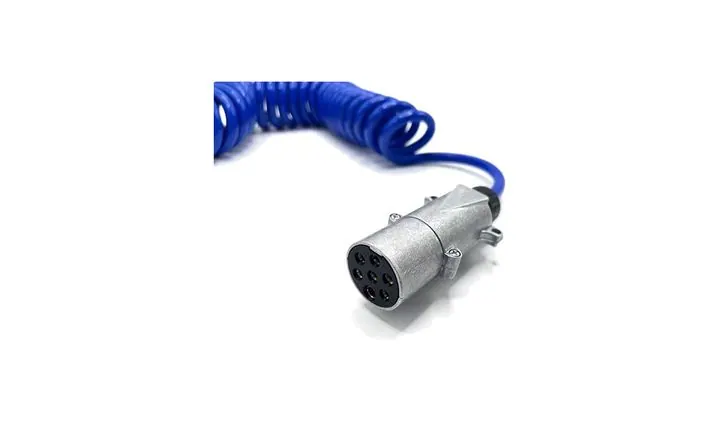

CAB-02S vehicle spring wire (4m/2ch, specially designed for trailer multi-channel cameras)

Key features

Heavy-duty spring coil trailer cable kit, 4 m extended, 2 channels
Special vehicle spring wire, thicker and stronger (professional OD 5.5 mm version)
Can link up to 4 reversing cameras on large trailers - reliable multi-camera video transmission and full rear visibility

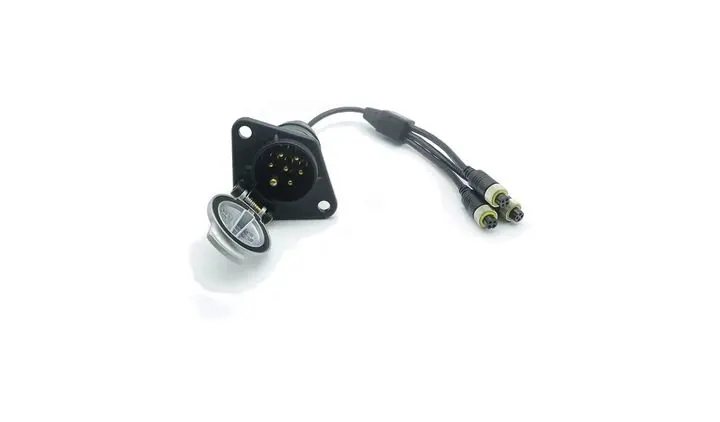

Kit: 1 x 4 m spring cable + 0.3 m male 2ch short cable + 0.3 m female 2ch short cable (per 100 kits)
Copper-core conductors with aluminium-foil shielding for stable video and power transmission over long runs
Male-to-female as standard, custom connectors and lengths available
Suitable for trailer truck, semi-trailer, caravan and fleet / MDVR systems

Points to confirm before production so the unit arrives ready to fit.

Fix the cable length in advance.
How many connectors and cameras are needed, and the number of channels must be confirmed in advance
Confirm the corresponding line sequence definition (1 B+ / 2 B- / 3 audio / 4 video)
The standard cable is male-to-female; specify in advance if you need another combination.
Do you need waterproof sleeves and corrugated casings?
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Secure the cable while routing it, so it cannot be pulled or chafed through.
Keep clear of the engine and other very hot surfaces.
Once wired, fit the waterproof boot and tighten the plug.
Do not leave the coiled cable at full stretch, and avoid sharp right-angle bends.
Periodically check the plug pins for oxidation and water ingress.
