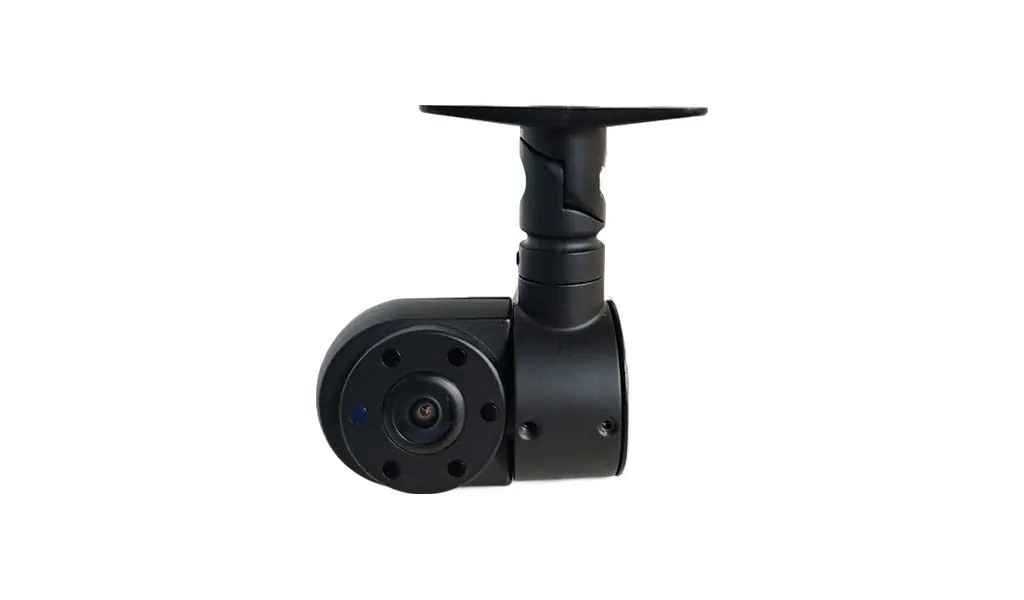

JPC-174-IR cabin and driver camera (1080P AHD, IR-CUT night vision)

Name: JPC-174-IR — JPC-174-IR cabin and driver camera (1080P AHD, IR-CUT night vision)
Brand: JFA-CAM

Get a Quote for JPC-174-IR Download datasheet (PDF · 204 KB) Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPC-174-IR datasheet — full specification, ordering notes and installation guidance as a PDF (204 KB). Open it here or ask us to email it with your quotation.

Key features

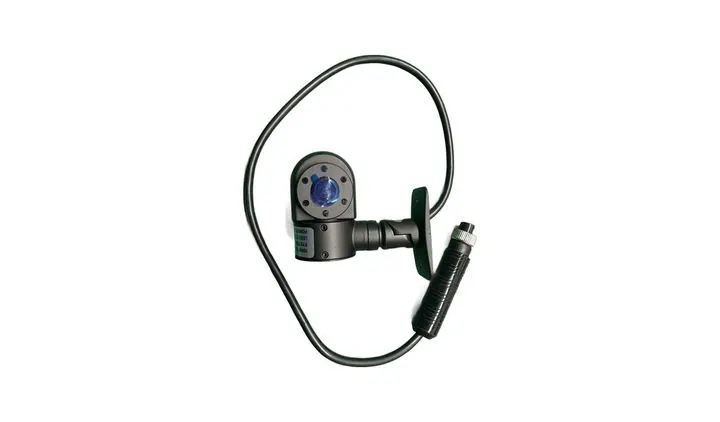

For looking at the cabin and the driver: IR-CUT plus infrared LEDs
Colour by day, monochrome by night; usable in a completely dark cab
0 Lux with the infrared on - no extra light needed
The infrared LEDs are soft and do not dazzle the driver
1080P AHD output, PAL or NTSC

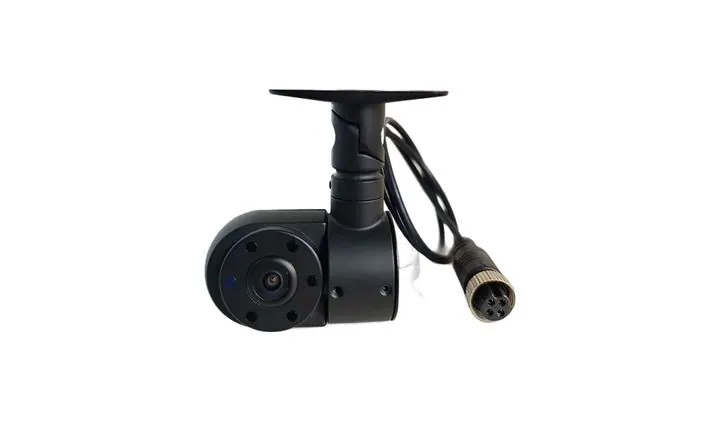

Standard 4-pin aviation connector: plugs into an MDVR or monitor directly
12V DC supply, low consumption

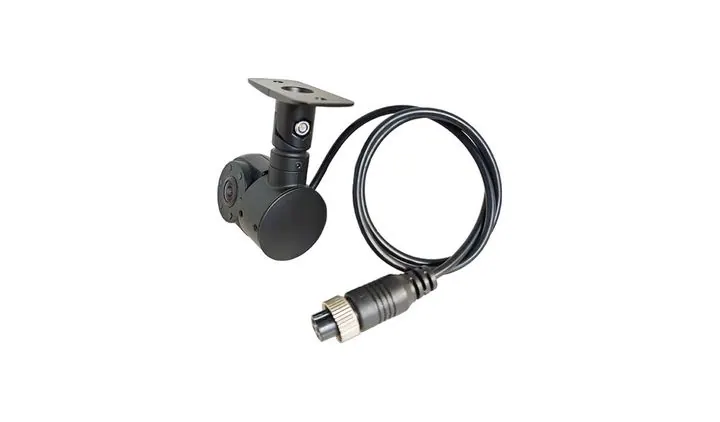

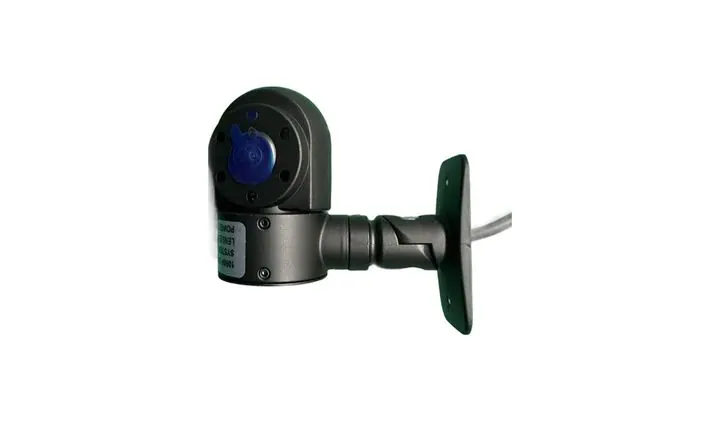

Small square housing with a 360° bracket: headliner, side mount or A-pillar
Small enough not to block the driver's view
Suits taxi, ride-hailing, coach and truck fleets: driver state, passengers, crew

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

This model has infrared LEDs and is for the cabin only; for the road ahead use a front camera (the front lens of JPC-174D, for example)
Confirm the field of view at the time of order - it varies between batches
Confirm the mounting position (headliner / A-pillar / side) and whether the 360° bracket is enough
Confirm resolution and standard: 1080P or 720P AHD, PAL or NTSC
Confirm the connector (4-pin aviation by default) and cable length
Confirm whether audio is needed - check local rules on recording in the cab
Make sure the position does not block the airbag or the driver's view
Quantity, packaging and printing to be confirmed before production

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Check the supply is 12V DC and the polarity is correct before connecting
Keep the camera clear of the airbag zone and out of the driver's line of sight
Do not aim the lens at the window glass - infrared reflects back at night; aim it into the cab
Route the cable along the original harness and secure it so it cannot catch on the driver
Push the connector fully home and fit the weather boot
Set the angle and tighten the screw
Wipe the lens and the infrared cover periodically
With the microphone version, check local rules on recording in the cab and tell the owner
