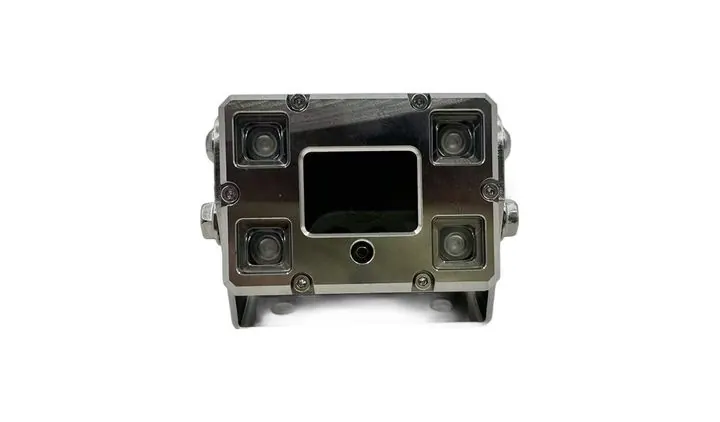

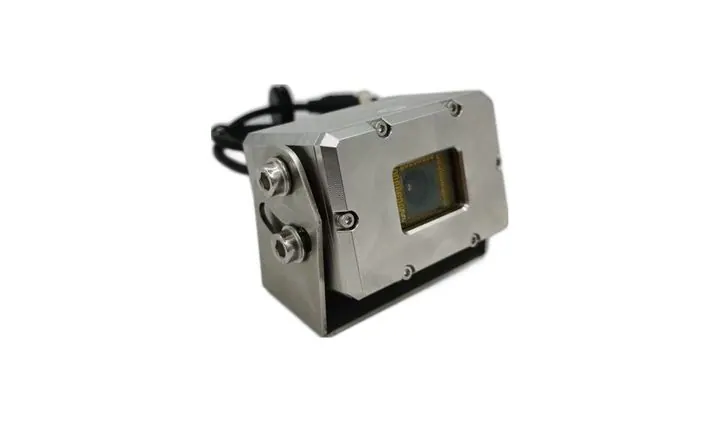

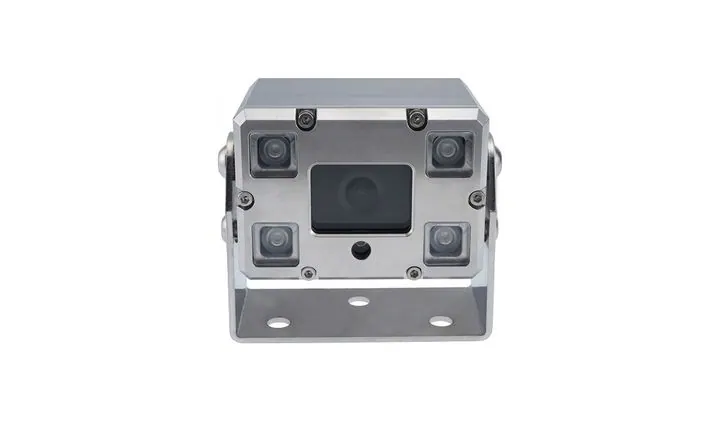

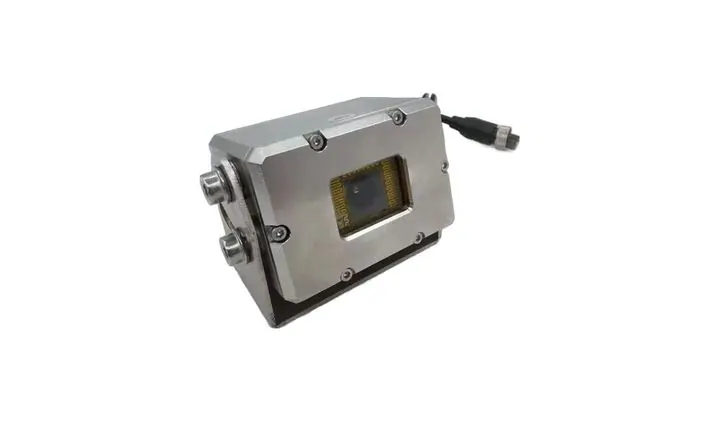

Main image and detail shots of the JPC-173.

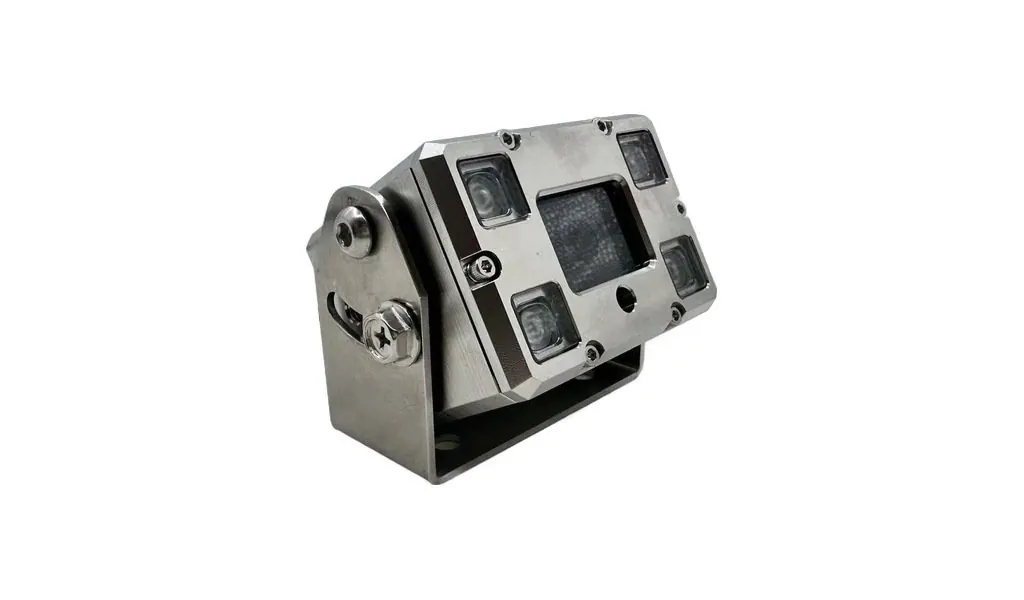

JPC-173 304 stainless steel explosion-proof camera (1080P AHD, mirror image, IP68)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
JPC-173 datasheet — full specification, ordering notes and installation guidance as a PDF (297 KB). Open it here or ask us to email it with your quotation.
Key features
- Full 304 stainless steel housing: the whole shell is 304, not painted iron or aluminium
- Anti-corrosion: acid, alkali, salt spray, snow-melting salt and fertiliser - no rust at the coast
- Impact and tamper resistance: the metal shell is the protection
- Isolated, explosion-proof construction: the shell is separated from the circuit
- Thick tempered glass mirror: more impact and scratch resistant than ordinary glass, and it does not cloud over with age
- Small metal body, about 56 x 52 mm, easy to fit and to route
- 1080P AHD, mirror image, no parking lines - made for a rear-view monitor
- 110° viewing angle, 1/2.9" colour CMOS
- 1 lux at F1.2, shutter 1/50 - 1/100000 s
- 4-pin aviation connector, 12V supply
- IP68: dust-tight and sealed against immersion
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This is the rear-view version: mirror image, no parking lines
- Confirm resolution and standard: 1080P AHD, PAL (NTSC on request)
- Confirm the angle: 110°
- Confirm the connector (4-pin aviation) and cable length
- Confirm whether a sun visor or bracket is needed
- Say so if the truck is pressure washed daily - the housing is IP68 but the connector is the weak point
- Quantity, packaging (colour box / neutral box) and printing to be confirmed before production
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Check the supply is 12V DC and the polarity is correct before connecting
- The stainless housing is heavier than plastic - mount it on a solid panel
- Aim it along the vehicle body; the mirror image is for a rear-view monitor
- Keep the tempered glass clean - salt and dust dull the picture
- Do not aim a pressure washer at the connector
- Leave a drip loop in the cable
- Check the seal after any service that opens the housing
