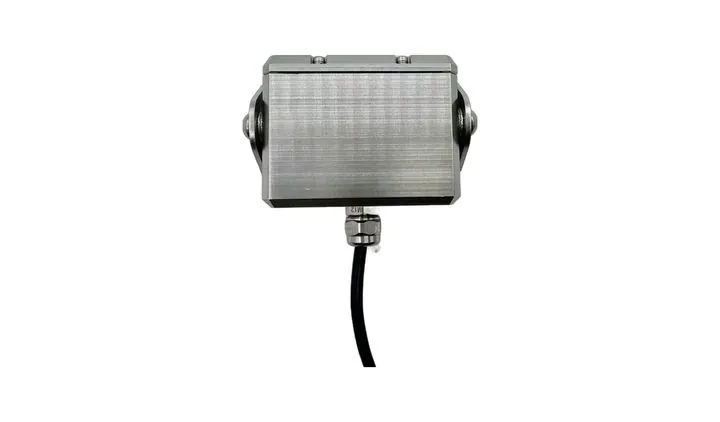

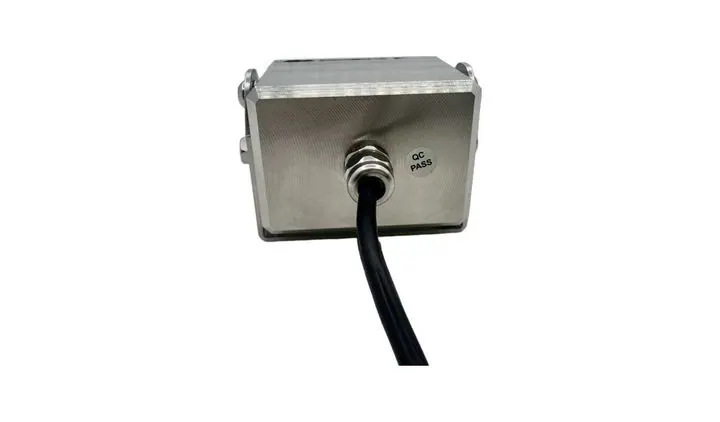

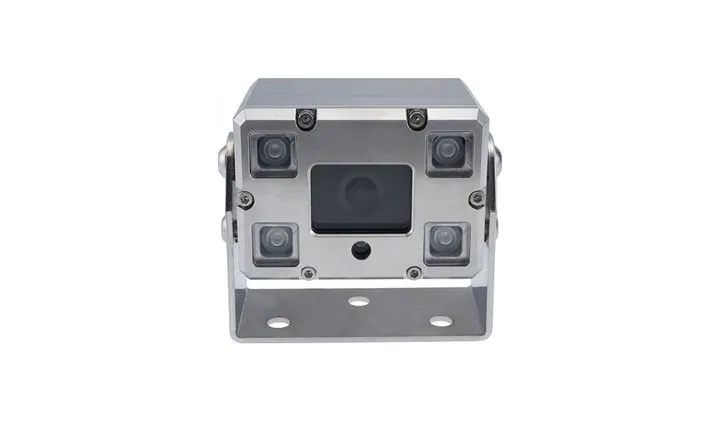

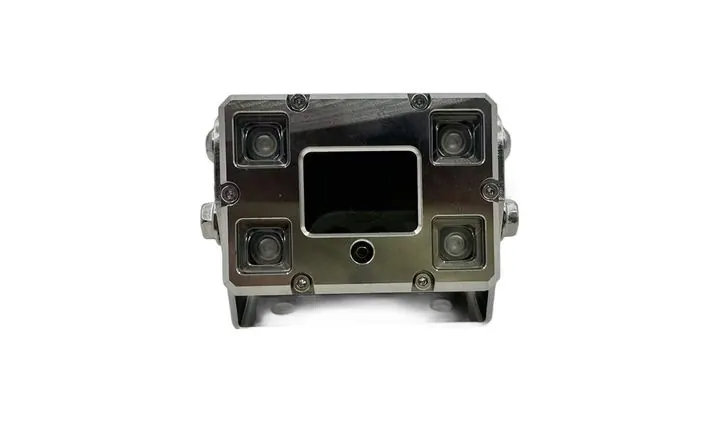

Main image and detail shots of the JPC-173-IR.

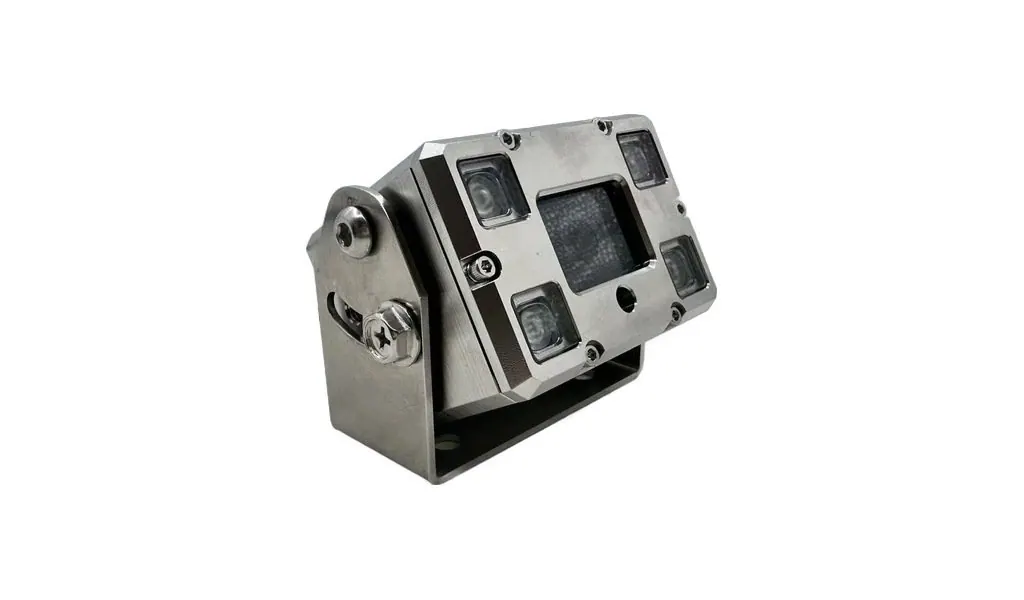

JPC-173-IR infrared camera (1080P AHD, mirror image, 110°)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
JPC-173-IR datasheet — full specification, ordering notes and installation guidance as a PDF (288 KB). Open it here or ask us to email it with your quotation.
Key features
- Infrared version of the JPC-173: same AHD 1080P output, with IR LEDs for night work
- Mirror image, no parking lines - made for a rear-view monitor
- 110° viewing angle
- 4-pin aviation connector, 12V supply
- Metal housing; confirm the finish at order (the 304 stainless explosion-proof shell is the JPC-173)
- For trucks, trailers and plant that work at night without lighting
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm this is the infrared version; the camera without IR is JPC-173
- Confirm resolution and standard: 1080P AHD, PAL
- Confirm the angle: 110°
- Confirm the housing and finish: the 304 stainless explosion-proof shell is JPC-173; say so if this one has to match it
- Confirm the connector (4-pin aviation) and cable length
- Quantity, packaging and printing to be confirmed before production
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Check the supply is 12V DC and the polarity is correct before connecting
- Keep the lens and the IR window clean - dust scatters the infrared back into the lens
- The mirror image is for a rear-view monitor
- Do not aim a pressure washer at the connector
- Leave a drip loop in the cable
- Check the seal after any service that opens the housing
