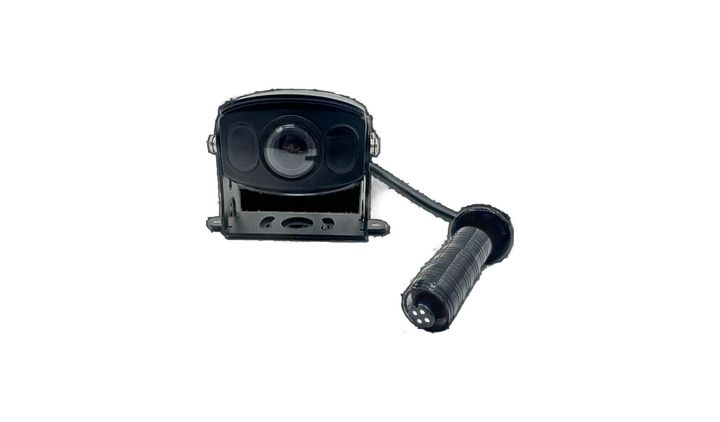

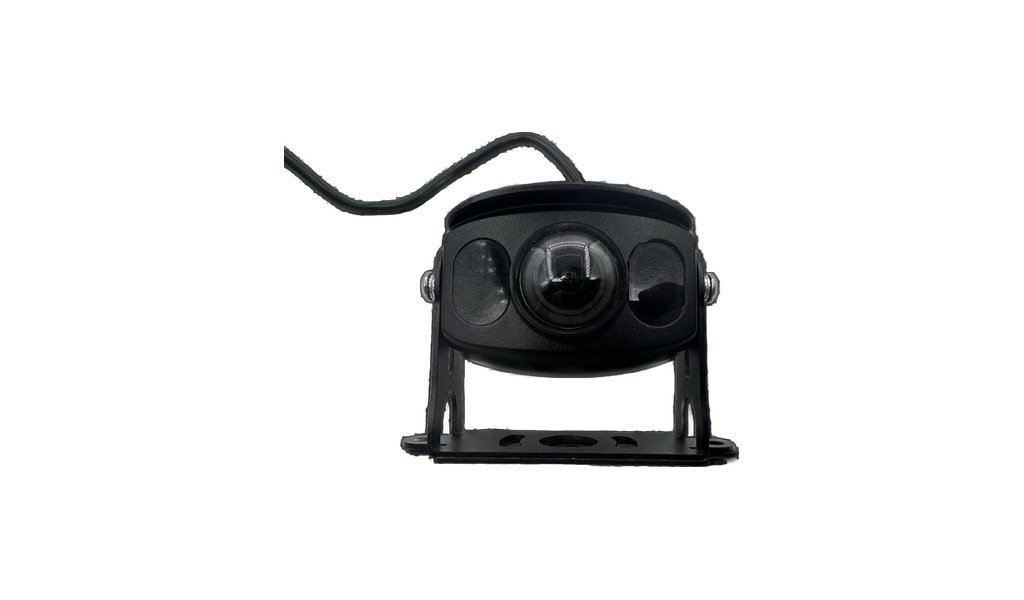

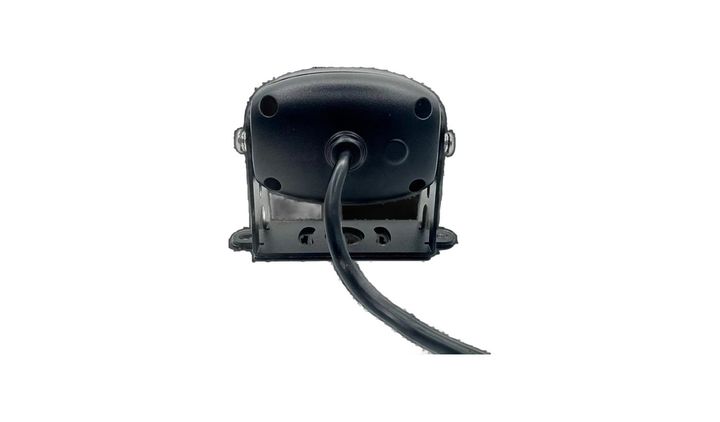

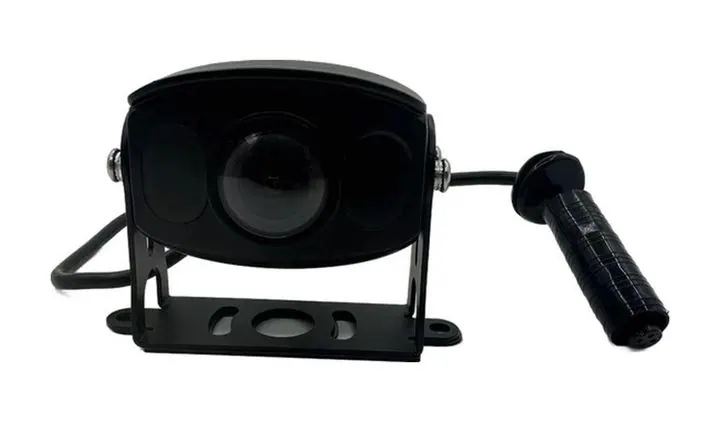

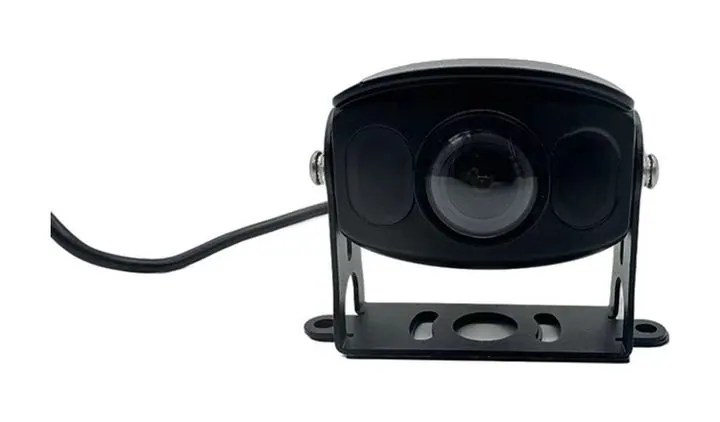

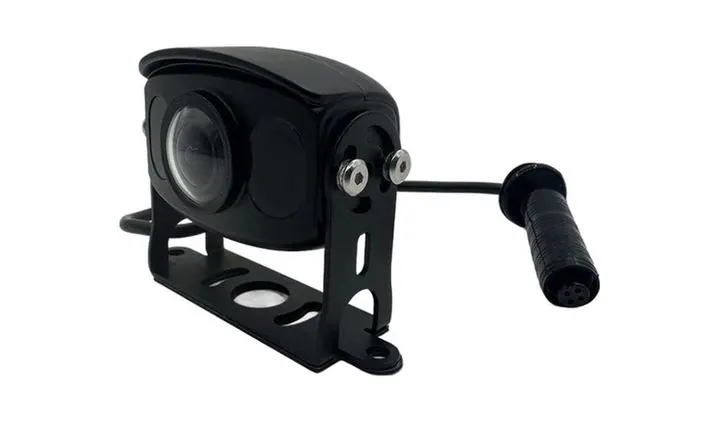

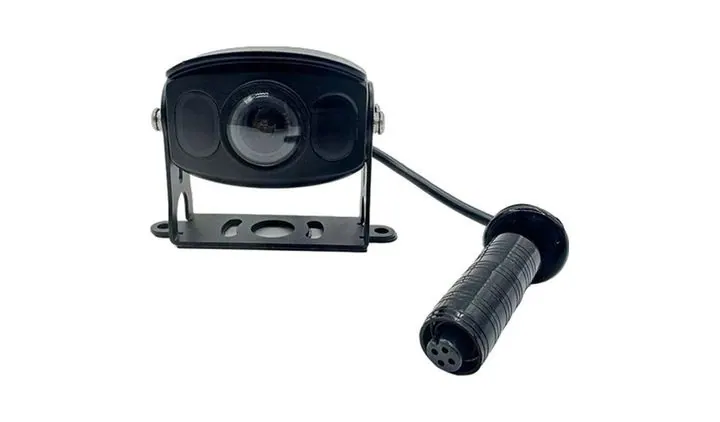

JPC-167 165° ultra-wide angle rear view camera (MV-786, 1080P AHD / IP69K / with third-party test report)

Name: JPC-167 165 — JPC-167 165° ultra-wide angle rear view camera (MV-786, 1080P AHD / IP69K / with third-party test report)
Brand: JFA-CAM

Get a Quote for JPC-167 165 Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

165° horizontal / 100° vertical super wide view - one camera covers the whole rear area, no blind spot left
8mm six-element all-glass lens: clearer and more accurate in color than ordinary plastic lenses, the entire 165° picture is not deformed or fish-eye
The edges of the screen are also clear: installed at the rear of a large vehicle, the left and right lanes can be retracted into the screen at the same time
1080P AHD coaxial high-definition output 1920(H)x1080(V), the picture is clear and delicate, and moving objects are not blurry
2053 solution + 1/2.9" CMOS sensor
The minimum illumination is 0.001Lux (F1.2), which can still produce pictures in darker environments than ordinary rearview cameras
Infrared night vision distance 15 m, automatic IR-Cut: color during the day, automatic conversion to black and white at night, no need to worry about day and night switching
Ceramic lamp beads are not dazzling, the picture is clear at night, and they do not interfere with the driver and vehicles behind
Adaptive digital noise reduction (2D-DNR + 3D-DNR), less noise in dark areas
The tempered curved glass cover protects the lens and is anti-scratch and impact-resistant. The picture will not be blurred after long-term use
IP69K: Anbo Testing issued a third-party test report (report number 18280CC10028901), which passed the actual test according to ISO 20653:2013
Actual measurement conditions: water temperature (80±5)°C, water pressure 8000-10000 kPa (approximately 80-100 bar), flow rate 14-16 L/min, 0°/30°/60°/90° spraying for 30 seconds at each of the four angles - equivalent to high-pressure hot water car washing
Dustproof IP6X passed the same report: no dust inside the sample after 20 cycles
Structural waterproofing (not relying on glue): multi-channel sealing structure, longer life
4mm thick shell + waterproof structure, no leakage for long-term outdoor use
Anti-vibration design: 1.5mm THD polymer shock-absorbing pad + wedge-shaped self-locking screws, which will not loosen or shake on bumpy roads
Attached is a third-party anti-vibration test report
4mm thick high-strength shell: anti-smash, anti-collision, anti-tampering
Surface treatment: electrostatic adsorption spray 300µm coating, 200°C high temperature curing, 288 hours salt spray test, no rust at the seaside or construction site
Working temperature -25~+70°C, humidity 0-90%; attached with third-party high and low temperature test report
Suitable for rear monitoring of large vehicles such as trucks, trailers, special-purpose vehicles (excavators/loaders/dump trucks), sanitation trucks, etc
DC 12V (8-15V wide voltage), power consumption <2.5W
4-pin aviation header: 1 red 12V+ / 2 black 12V- / 3 empty / 4 yellow video signal; video output 1.0Vp-p 75Ω
Directly connected to AHD display/MDVR without changing the entire vehicle circuit
Line length, connectors, silk screen printing and packaging can be custom according to the project

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the resolution and format: AHD 1080P, PAL / NTSC, and match the monitor / MDVR
Confirm the lens angle version: The standard for this model is 165° (1.8mm lens). If you need other angles, please inform us in advance
Confirm whether you need to provide test reports with the goods: IP69K waterproof (report number 18280CC10028901), high and low temperature, and vibration resistance can be provided. It is recommended to include the goods with the bidding/certification projects
Confirm the connector type: default 4-pin aviation connector (RCA optional), which should correspond to the vehicle wiring harness
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Confirm the installation position and bracket form (rear of vehicle/rear of construction machinery), and reserve installation space for the 4mm thick shell
Default specifications: 2053 + 8536H solution / 165° field of view / PAL system / without reversing auxiliary line (no park line); no wide dynamic range (WDR) function, if you need other angles or NTSC, please explain in advance
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
After adjusting the angle, tighten the screws. Do not miss the wedge-shaped self-locking screws or replace them with ordinary screws
Although IP69K is resistant to high-pressure hot water washing, it is still necessary to avoid direct direct impact on the lens and connectors for a long time
If the tempered glass lens cover is dirty, wipe it with a soft cloth. Do not scratch it with a hard object
The construction site is very dusty. Clean the lens and glass cover regularly to avoid fogging of the screen at night
