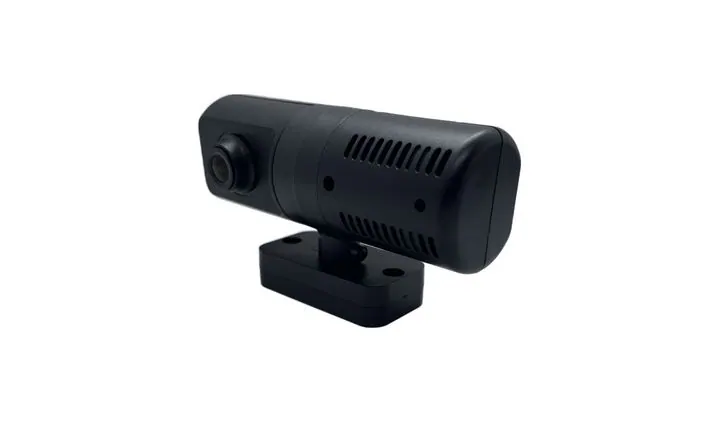

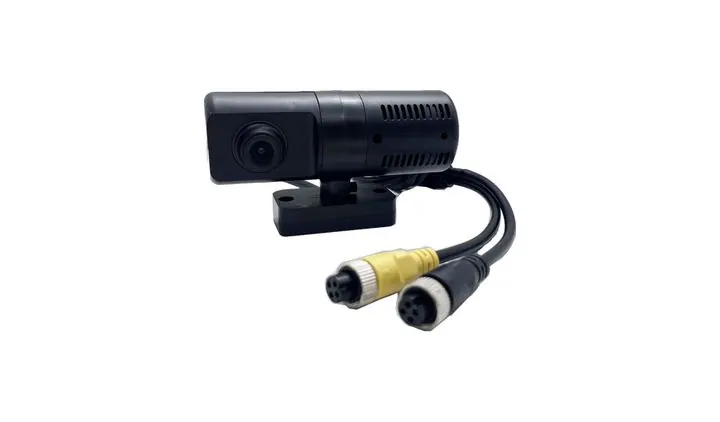

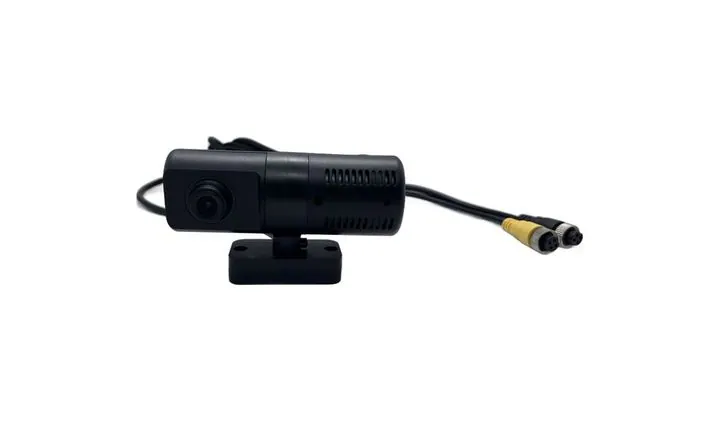

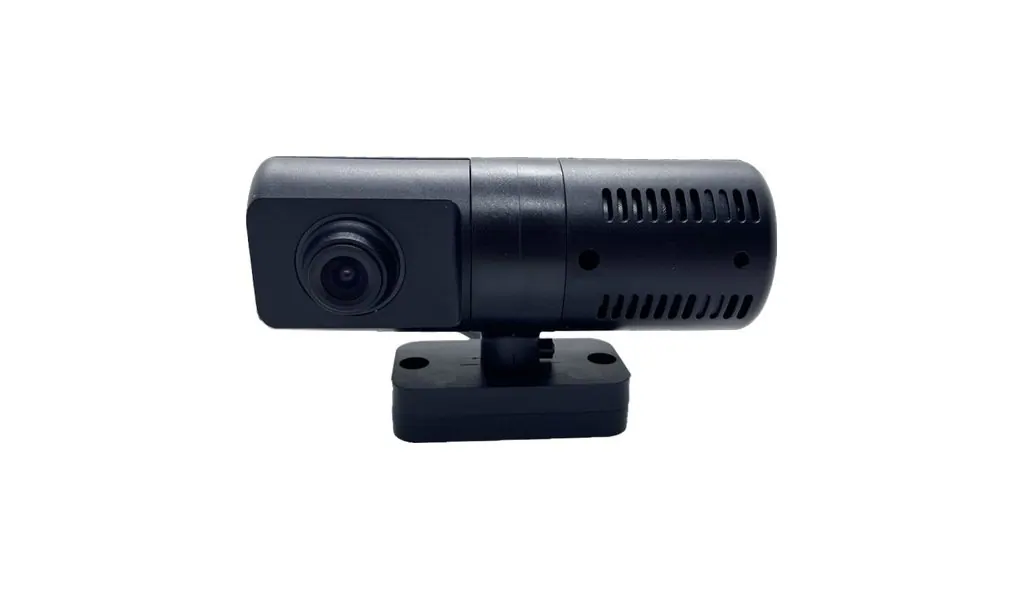

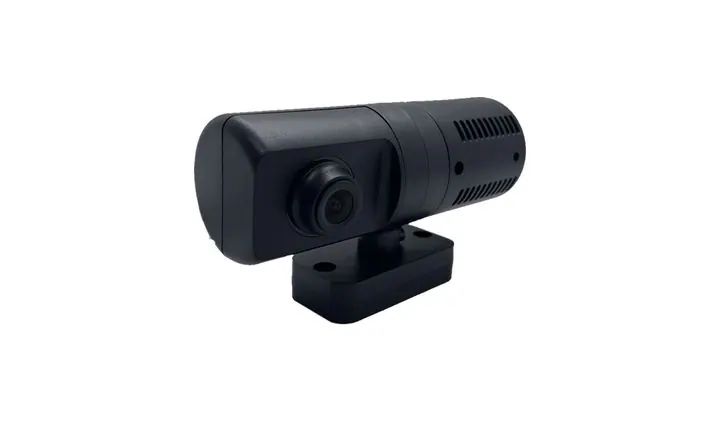

Main image and detail shots of the JPC-144.
JPC-144 dual-lens vehicle camera - 2.1 mm IR lens for the cabin plus a 2.8 mm lens for the road, 1/2.8" IMX307 1080P
JPC-144 dual-lens vehicle camera - 2.1 mm IR lens for the cabin plus a 2.8 mm lens for the road, 1/2.8" IMX307 1080P AHD, built-in microphone
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
JPC-144 datasheet — full specification, ordering notes and installation guidance as a PDF (198 KB). Open it here or ask us to email it with your quotation.
Key features
- Dual-lens camera in one housing: 2.1 mm IR lens for the cabin plus a 2.8 mm lens for the road
- 1/2.8" CMOS IMX307, 2MP 1920(H) x 1080(V), AHD 1080p at 25 / 30 fps
- Inside-view lens: automatic ICR day / night switching with 4 IR LEDs (2 - 3 m) and a built-in microphone
- Front-view lens: colour only, no IR - no windscreen reflection at night
- Minimum illumination 0.001 Lux in colour, 0.0001 Lux B/W, 0 Lux with IR on
- Long transmission: more than 500 m over 75-3 coaxial cable
- 3D digital noise reduction, auto or manual white balance, UTC supported
- 3 m shielded power and video cable with an aviation connector
- Compact black plastic housing 109 x 44.5 x 60.5 mm, bracket fixed with 3M tape
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Signal system: confirm PAL / NTSC to match your monitor or MDVR
- Video output: AHD 1080P as standard (TVI optional) - confirm before ordering
- Cable: 3 m shielded cable as standard; 1 m / 5 m / 10 m on request
- Connector: confirm the aviation plug matches your vehicle harness
- Microphone: the inside-view camera has one as standard - tell us if you do not want it
- Accessories: extension cable and waterproof boot if required
- Quantity, packing (colour box / neutral box) and printing or logo requirements
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Check the supply voltage (DC 12V, +/-20%) and polarity before connecting power
- Fix the main unit with 3M tape on a clean surface, away from heat and heavy vibration
- The inside-view lens has IR LEDs - do not aim it at the windscreen, the IR reflects back and washes the picture out
- Set and tighten both lens angles so they cannot move in service
- Route the cable away from heat sources and sharp sheet metal, and secure it
- Clean the lenses regularly and check the connector for water or corrosion
