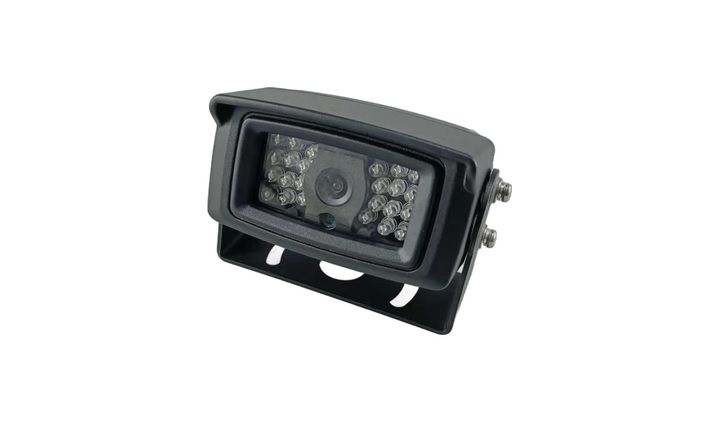

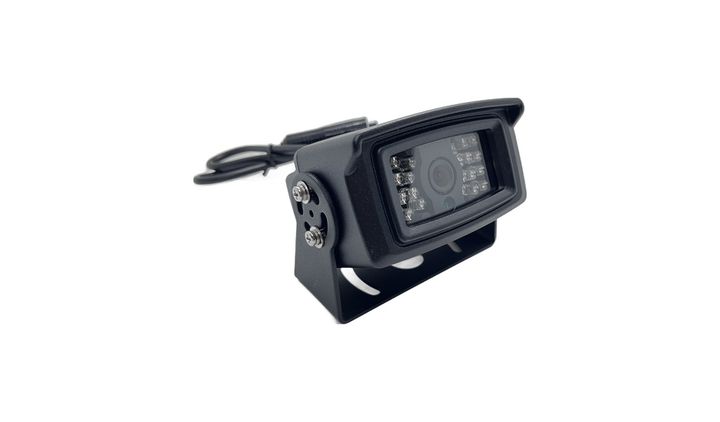

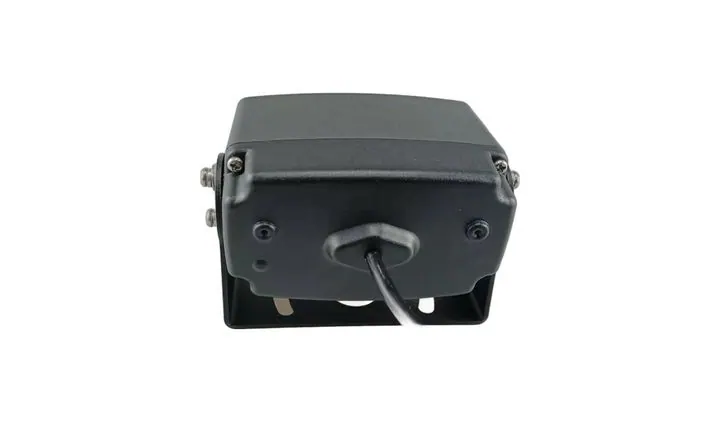

Main image and detail shots of the JPC-141 24.

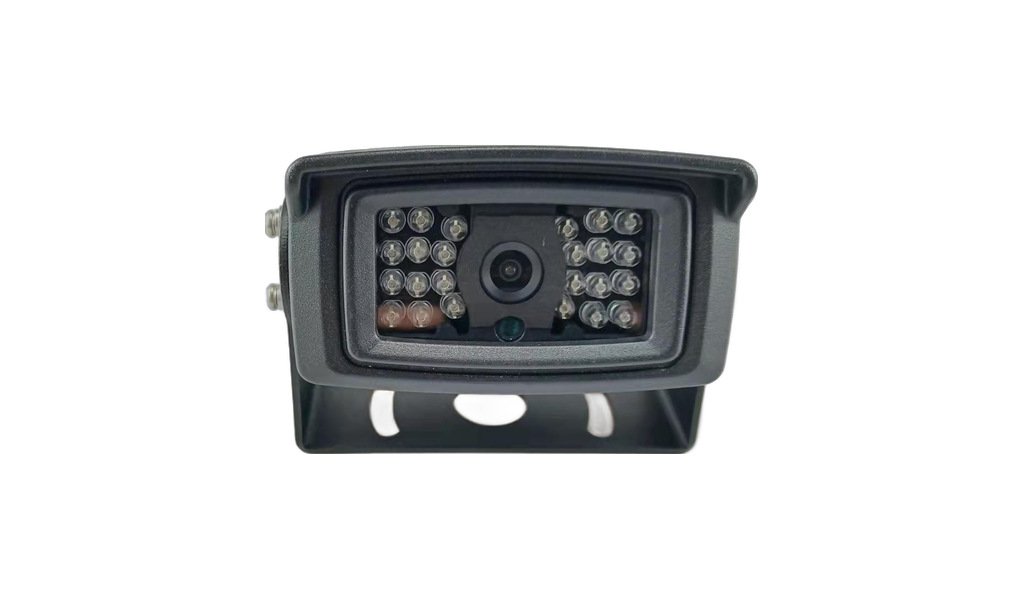

JPC-141 24-light bus camera (IP69K, with test certificate)
Key features
- Bus / coach camera with 24 built-in IR LEDs - long night vision range
- AHD 1080P (1920(H)x1080(V)), 105 degree viewing angle, 2.8 mm lens
- 2053 + 8536H chipset, minimum illumination 0.001 Lux
- IP69K waterproof - with IP69K certification report in the folder
- Power 12V (8V-15V) < 2.5W, working temperature -20°C to +70°C

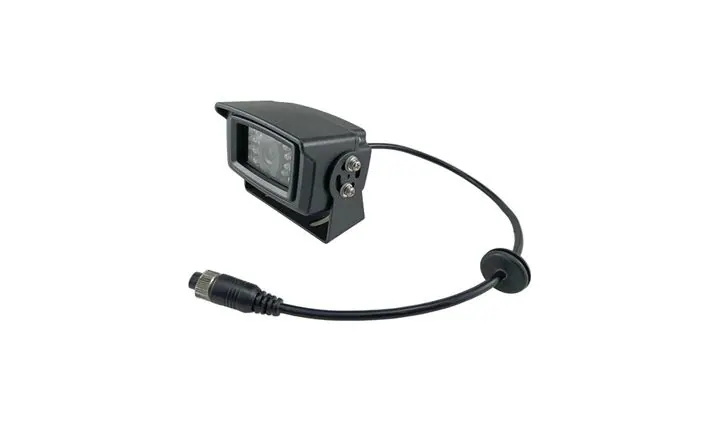

- All-aluminium alloy housing with 4-pin aviation cable
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
- Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
- Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
- Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
- Confirm whether a waterproof boot is required.
- Confirm lens angle and mounting position — side view, rear view or cab.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
- 24-light version and 1080P resolution confirmed
- Confirm whether IP69K test certificate needs to be provided to customers
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
- Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
- Tighten the connector and fit the waterproof boot to keep water out.
- Tighten the screws once the angle is set.
- IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
