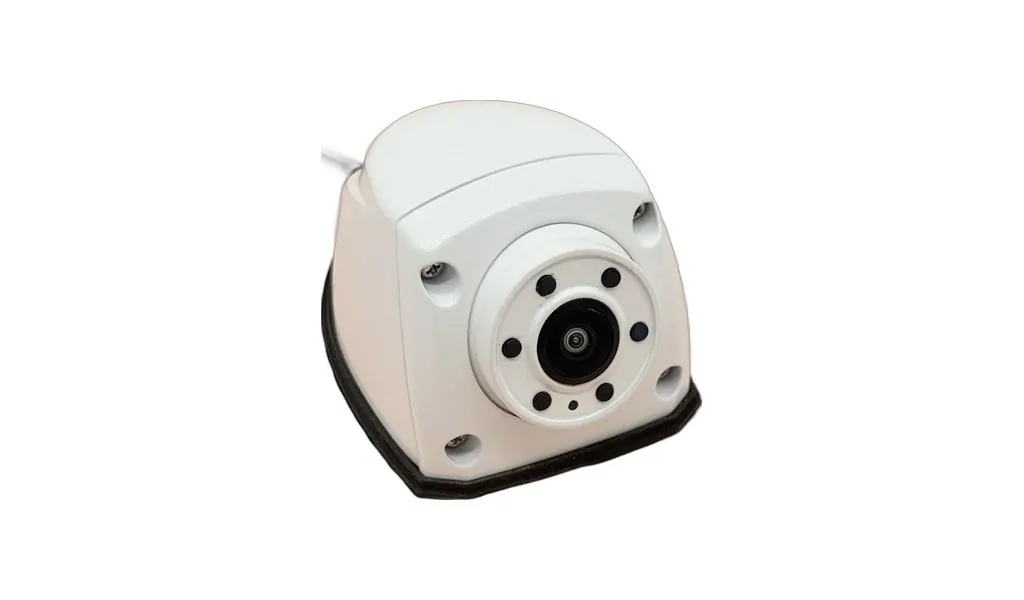

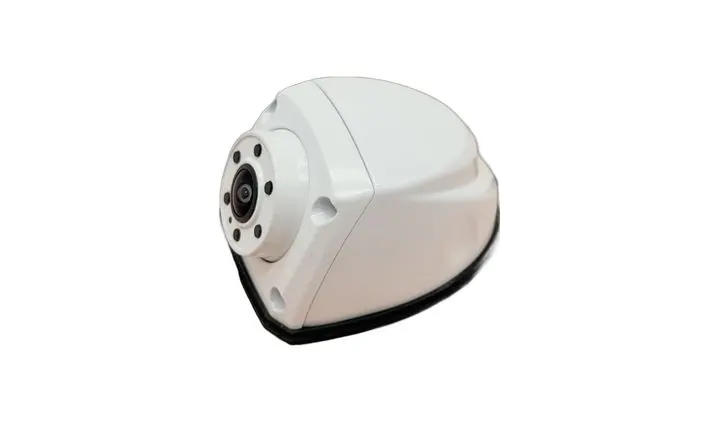

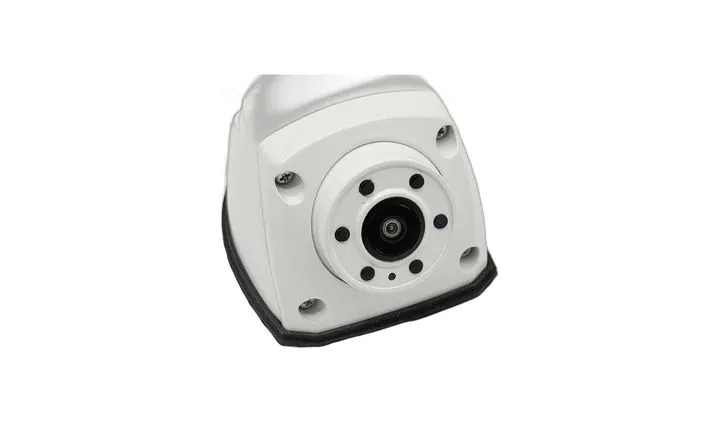

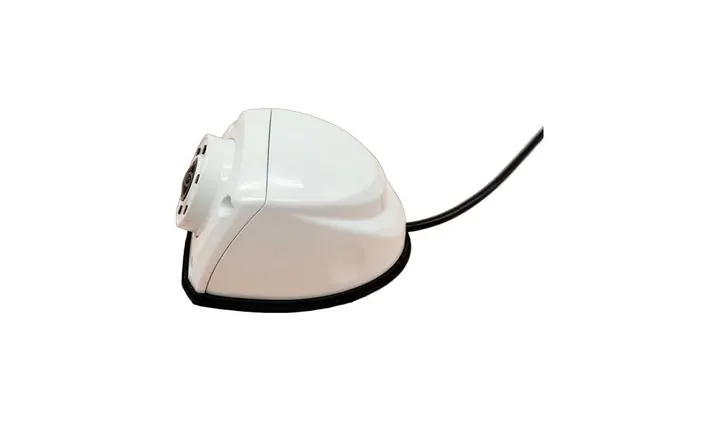

Main image and detail shots of the JPC-125W.
JPC-125W white extra-height side camera, 1080P AHD, 110 degree 2.8 mm lens, 10 m IR, IP69K
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
JPC-125W datasheet — full specification, ordering notes and installation guidance as a PDF (165 KB). Download it here or ask us to email it with your quotation.
Key features
- White painted housing version of the extra-height side camera - matches white truck bodies and fleet livery
- Extra-height side camera housing - lifts above the body line so the side blind spot is not blocked
- 2053 + 8536H chipset colour CMOS, 1920(H) x 1080(V), AHD output
- 110 degree viewing angle with a 2.8 mm lens (105 / 150 / 180 degree versions available)
- IR distance 10 m with automatic IR-cut day / night switching
- Adaptive digital noise reduction, supports UTC
- All-aluminium alloy waterproof housing, anti-demolition design, IP69K
- Power 12V (8V-15V) below 2.5W, working temperature -20°C to +70°C

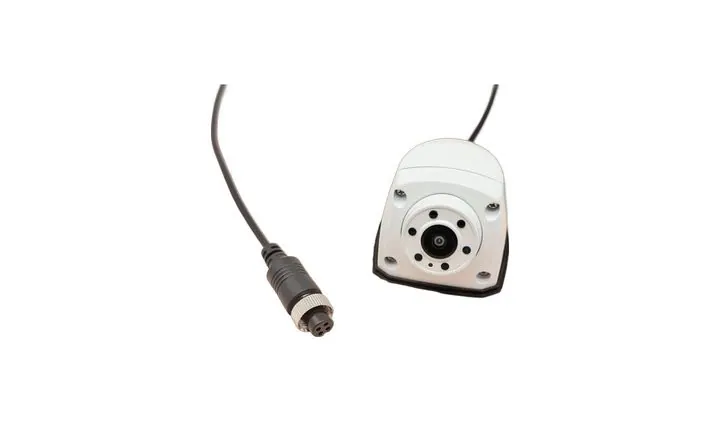

- 4-pin aviation connector, video output 1.0Vp-p 75 ohm
- Multiple bracket heights and lens angles available - confirm the ordering version
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Housing colour: this is the white version (JPC-125W); the metal / black housing is JPC-125-1
- Video system: confirm AHD 1080P / 720P or CVBS, and PAL / NTSC before ordering
- Connector: confirm 4-pin aviation or RCA, plus cable length (standard 0.5 m pigtail; 1 m / 5 m / 10 m available)
- Viewing angle: 110 degree standard, 105 / 150 / 180 degree versions available - confirm before ordering
- Mounting: confirm the bracket height and the mounting position (side / rear / cabin)
- Voltage: confirm the vehicle system - 12V (8V-15V); a 24V version is available on request
- Image mode: confirm mirror or non-mirror image and whether parking guide lines are required
- Quantity, packing (colour box / neutral box) and printing or logo requirements
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Check the supply voltage and polarity before connecting power; wrong wiring can damage the camera
- Keep the waterproof connector tight and seal the joint; do not cut or extend the pigtail
- Route the cable away from heat sources, sharp edges and moving parts, and secure it with clips
- Clean the lens and the IR window with a soft cloth only; avoid high-pressure washing directly at the lens or connector
- Do not open the sealed housing - doing so voids the waterproof rating and the warranty
- Re-tighten the bracket screws after the angle has been set; a loose bracket blurs the image
