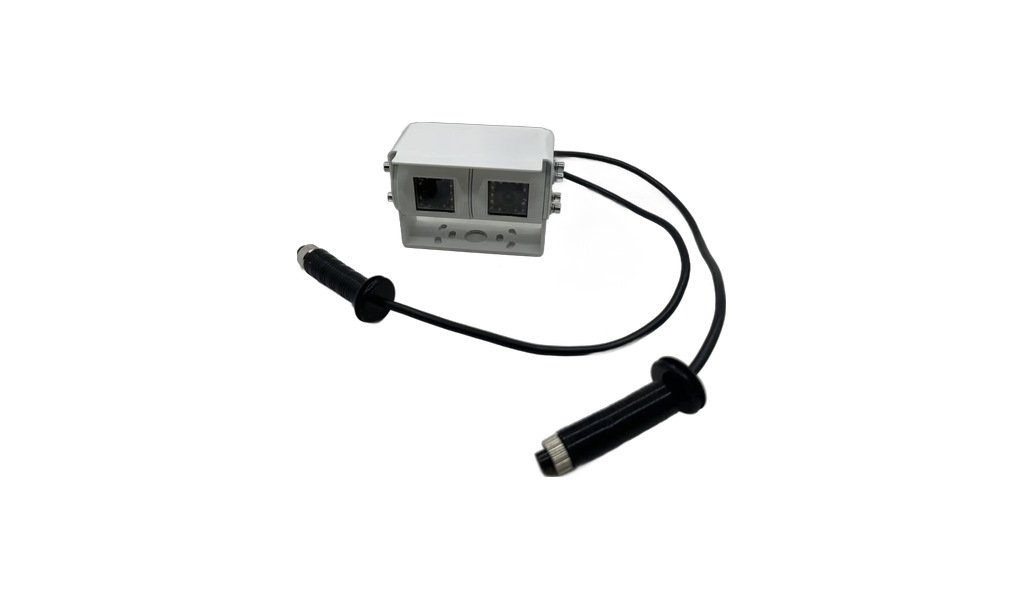

JPC-121-W dual lens rear view camera (white housing / AHD 1080P / PAL / 110°+60° dual lens / mirror image)

Key features

Dual-lens rear camera in one housing: a 110 degree wide lens plus a 60 degree narrow lens
The narrow lens looks far down the road, the wide lens watches the ground right behind the tire
About 180 degree vertical coverage from the two lenses - the rear blind spot is covered with only one mounting position
One camera / one bracket / one cable replaces two single-lens cameras - saves an installation position, a cable run and installation time
AHD 1080P output, 1920(H)x1080(V), PAL system - clear and stable picture on AHD monitors and MDVR
Mirror image as standard, without parking line - the picture is mirrored and no reversing guide line is drawn on it
2053 + 8536H chipset, 1/2.9" CMOS sensor; 0.1 Lux in daylight, 0 Lux with IR
18 pcs 650 nm IR LEDs, night vision distance 15 m with auto IR-cut
3D-DNR / 2D-DNR digital noise reduction; video output 1.0Vp-p 75 ohm

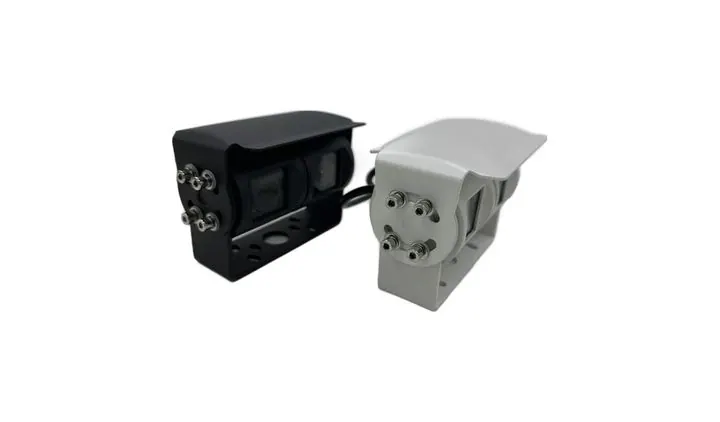

White housing, lens 2.8 mm / 3.6 mm; 4-pin aviation connector as standard (RCA optional)
DC 12 V (8-15 V), current < 500 mA, working temperature -20°C to +70°C
IP68 waterproof housing with 4.5G shock resistance - for trucks, trailers, buses, vans, forklifts and MDVR systems

Points to confirm before production so the unit arrives ready to fit.

Confirm the resolution version: AHD 1080P / PAL is standard; 720P and CVBS versions are made to order.
Confirm image mode. Default is a mirrored image with no parking guide lines; specify in advance if you need a normal image or guide lines.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° + 60° dual lens, PAL, mirrored image with no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm the dual-lens angle combination (110° wide for close range plus 60° narrow for distance) suits the mounting position.

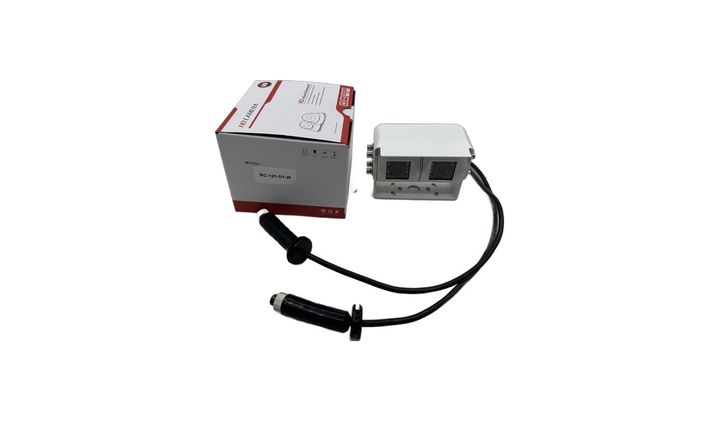

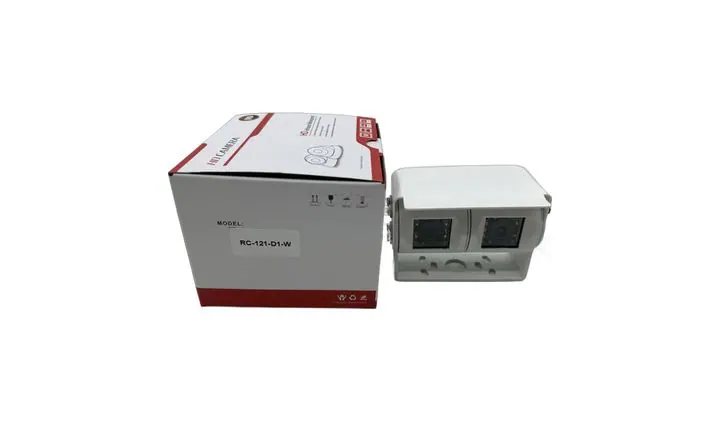

Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
First check the images of the two lenses respectively: the wide angle to see the ground, the small angle to see the distance, and then lock the bracket after confirming that they are correct
IP68 is a water-proof/water-spray-proof level. When washing the car, avoid direct high-pressure water gun directly into the lens and connector for a long time
