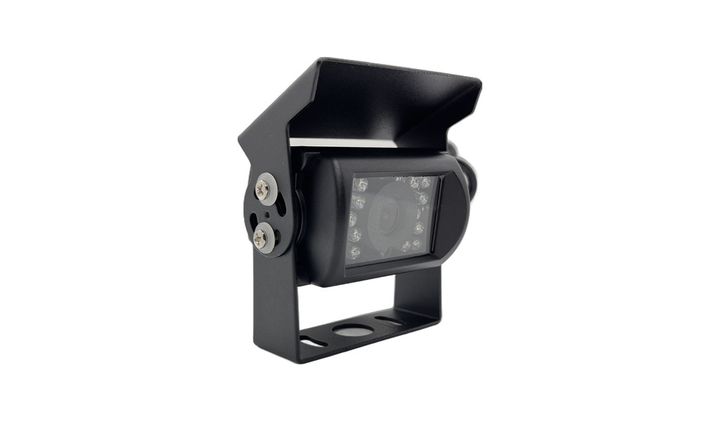

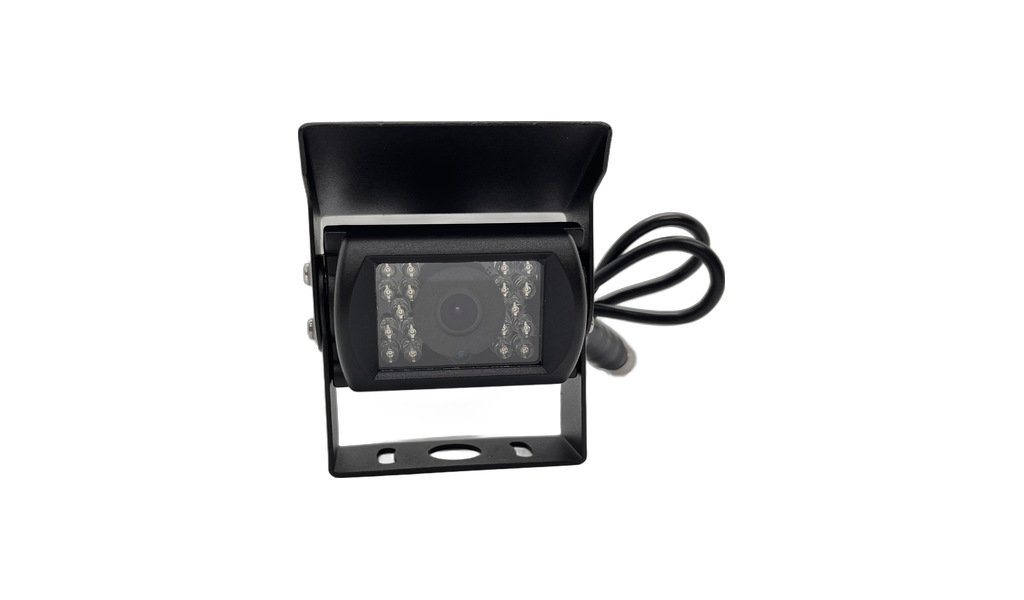

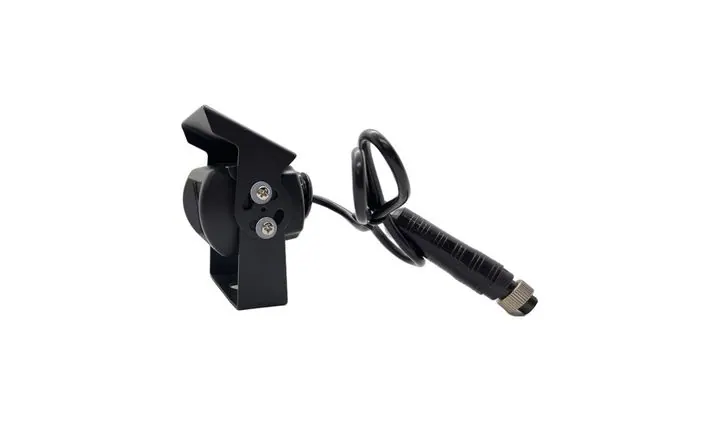

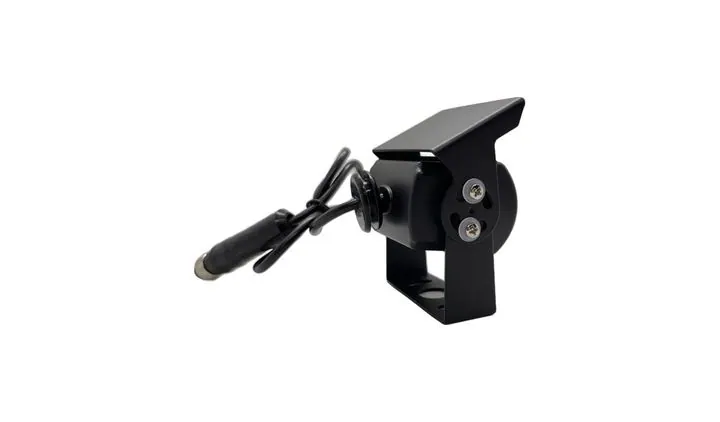

JPC-112 18-light night vision rearview camera (AHD/CVBS optional)

Key features

18 pcs 650nm IR LEDs - strong night vision for reversing and rear monitoring
AHD CMOS 1/2.9" (2053 + 8536H), 720P / 1080P optional
8 mm lens, 110 degree viewing angle; 1.0Vp-p 75 ohm video output
IP69 waterproof, magnetic holder installation, shock resistance 4.5G
DC 12V, current < 300mA; 4-pin aviation connector as standard (RCA optional)
CVBS 480TVL version available (chipset 7446, IP68, IR 15 m) for older monitors
G7-17MM AHD module version available: GC2083 1080P, XC5322 ISP, DC5-18V, 17x17 mm
Working temperature -20°C to +70°C

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.

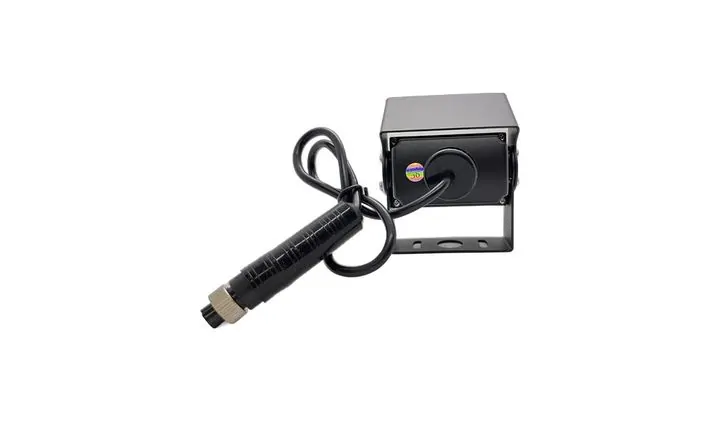

Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm AHD or CVBS version (old monitors can only be equipped with CVBS)
Confirm whether it is the 18-light version or the ordinary infrared version

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
