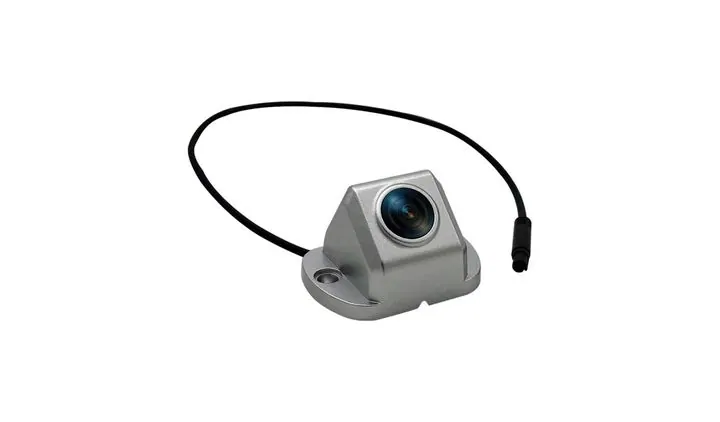

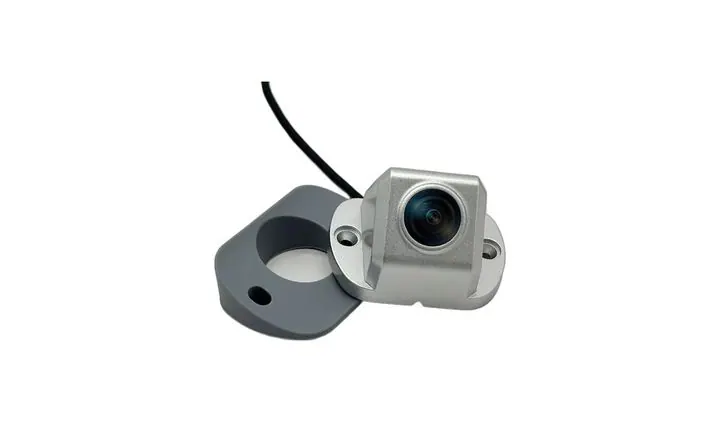

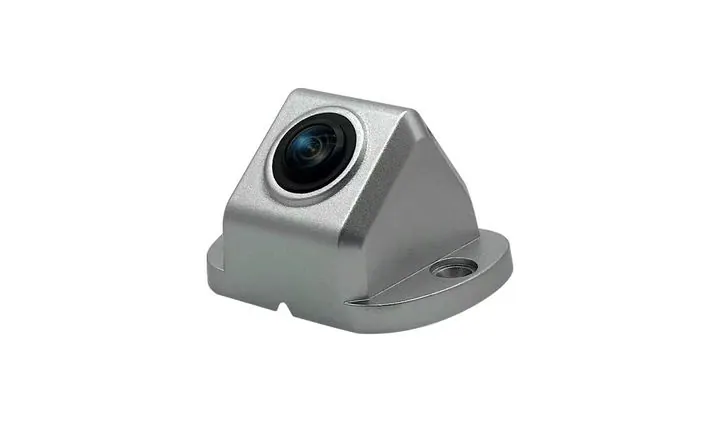

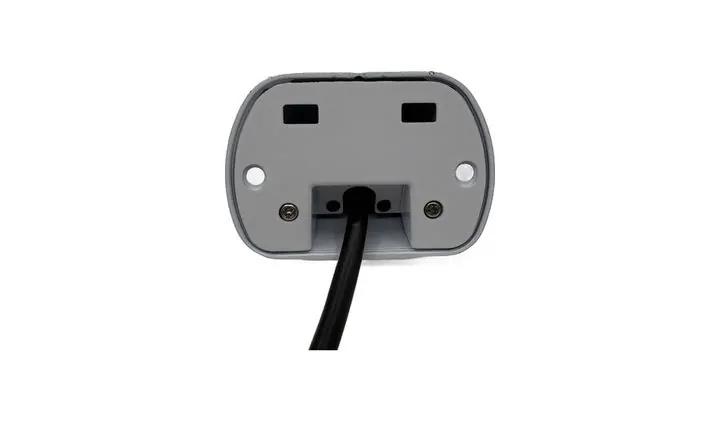

Main image and detail shots of the JPC-102B-W.

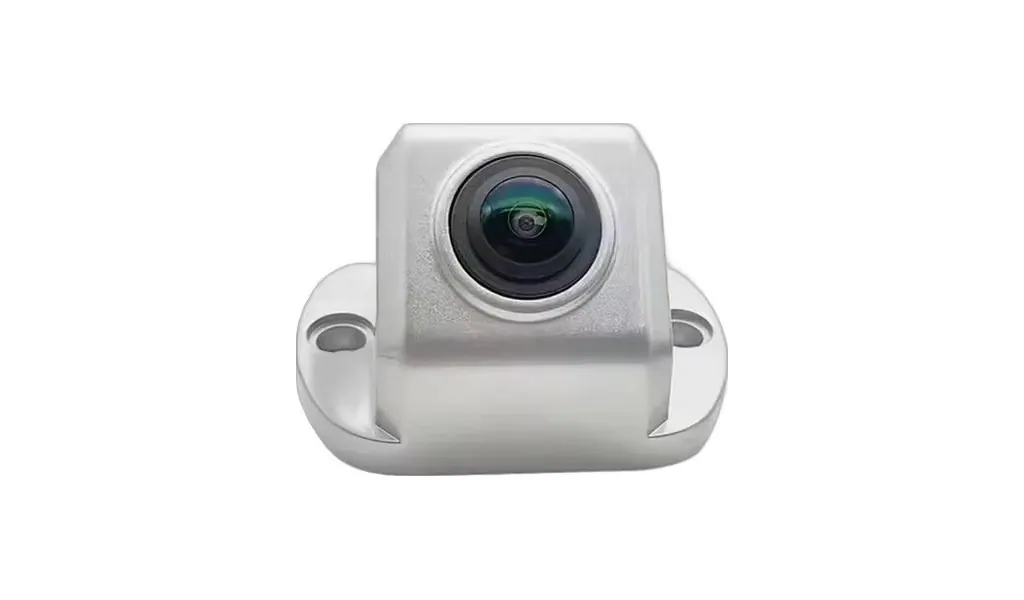

JPC-102B-W side view camera, white all-aluminium housing, 1080P AHD on the 2053 + 8536H platform, 110 degree 2.8 mm
JPC-102B-W side view camera, white all-aluminium housing, 1080P AHD on the 2053 + 8536H platform, 110 degree 2.8 mm lens, IP69K
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
JPC-102B-W datasheet — full specification, ordering notes and installation guidance as a PDF (207 KB). Open it here or ask us to email it with your quotation.
Key features
- Side view camera for trucks, sealed all-aluminium alloy housing in white
- 1/2.9" color CMOS sensor, 2053 + 8536H chipset
- 1080P: 1920(H) x 1080(V), AHD video output, clear and delicate image
- 110 degree wide viewing angle, 2.8 mm lens
- Adaptive digital noise reduction (DNR); no WDR function
- Support UTC function; anti-demolition design
- IP69K waterproof, working temperature -20°C to +70°C
- Power 12V (8V-15V), consumption below 2.5W
- 4-pin aviation cable: 1 red 12V+, 2 white 12V, 4 yellow video signal
- Black housing matches dark truck bodies and existing white fittings
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Housing colour: this is the white version; JPC-102 is the silver one
- Video system: confirm AHD 1080P / 720P or CVBS, and PAL / NTSC
- Connector: 4-pin aviation as standard (RCA optional) - confirm your harness
- Cable length: 0.5 m pigtail as standard; 1 m / 5 m / 10 m on request
- Lens angle and mounting position: confirm the angle and where it is fitted
- Quantity, packing (colour box / neutral box) and printing or logo requirements
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Check the supply voltage (DC 12V, 8-15V) and polarity before connecting power
- Route the cable away from heat sources and sharp sheet metal, and secure it
- Keep the waterproof connector tight and fit the boot to keep water out
- Tighten the bracket screws after the angle has been set
- IP69K covers water jets and immersion; do not hold a pressure washer on the lens
