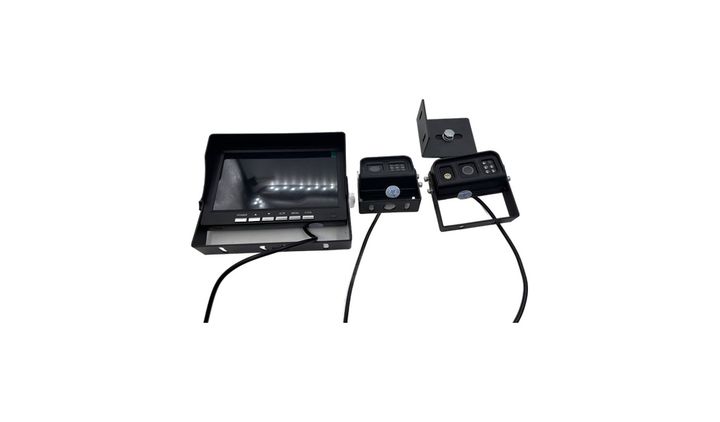

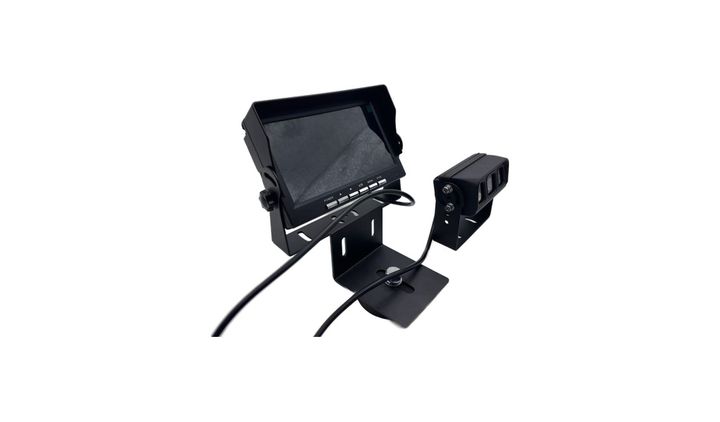

Main image and detail shots of the FWR-701FF 7.
Wireless · FWR
FWR-701FF 7

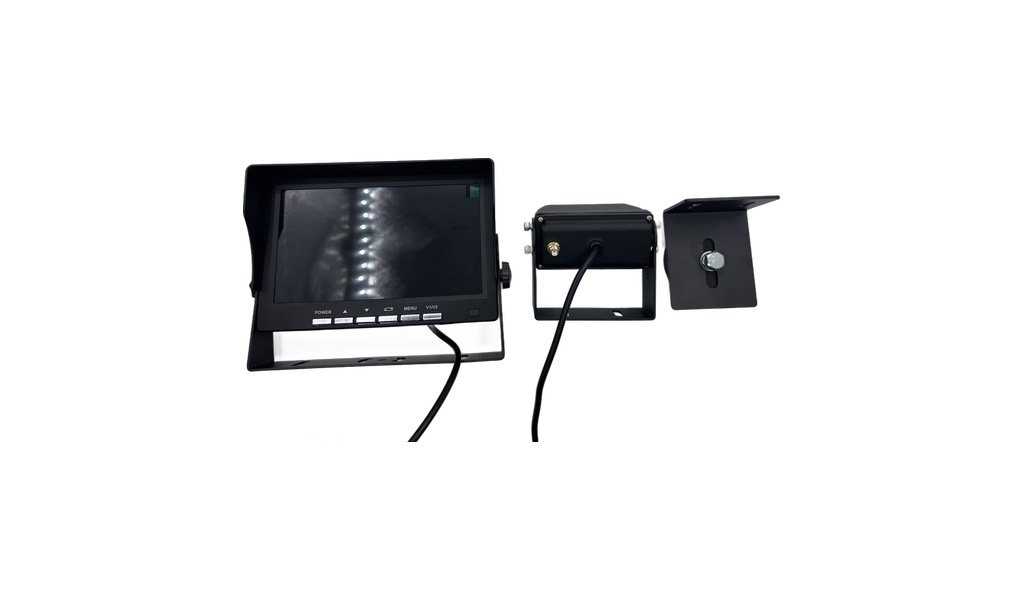

FWR-701FF 7-inch wireless forklift set (green laser positioning + infrared night vision 50m, private model)
Key features
- Green one-character laser precise positioning: The laser hits the front of the fork. The operator can know where the fork is aimed by looking at the screen. The alignment is fast and no collision with goods is possible
- Night vision 50 meters, full color zoom: can see clearly at night/in dark warehouses
- 720P fully digital wireless frequency hopping transmission: no wiring, anti-interference
- Supports 1~4 cameras Simultaneous connection and display, window mode switching (one monitor manages multiple angles)
- Auto-pairing, auto-focus, no settings required, quickly capture the target picture
- Multiple protections: overcurrent, overheating, surge, static electricity, reverse connection
- Wide-voltage DC/DC power supply + main control + RF transceiver + screen driver highly integrated, high image quality, high stability, low latency
- Green one-character laser positioning, laser viewing angle 60°
- Night vision 50 meters, full color zoom
- Wide-angle lens, viewing angle 90°

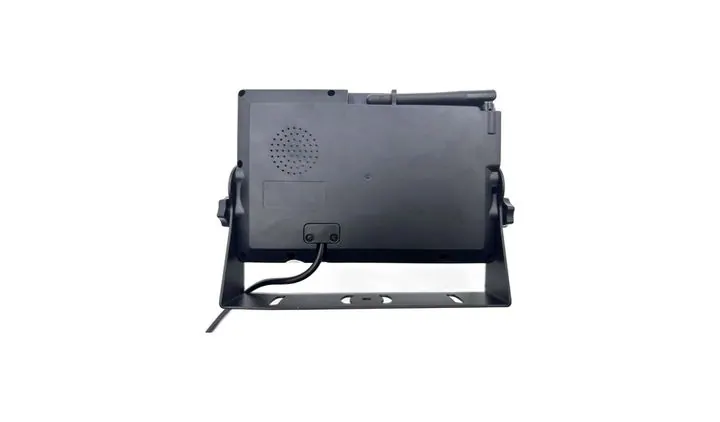

- HD LCD screen, resolution 1920 × 600
- Buttons: ① Power ② Up ③ Down ④ Confirm ⑤ Menu ⑥ Channel
- Supports simultaneous connection and display of 1~4 cameras, window mode switching
- 720P fully digital wireless frequency hopping transmission
- High stability: multiple protections against overcurrent, overheating, surge, static electricity, reverse connection, etc
- Outdoor waterproof, wireless transmission
- Easy to operate: automatic pairing, automatic focusing, no settings required

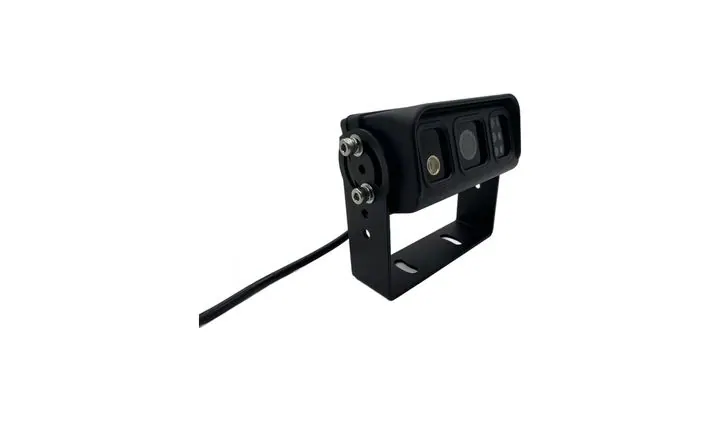

- Digital wireless waterproof camera; transmit power 20dBm
- Image sensor: 1/2.9" color CMOS; effective pixels 1920(H)×1080(V)
- Definition: 720P/1080P
- Laser positioning: green one-word laser; laser viewing angle 60°
- Minimum illumination: 1Lux
- Viewing angle: 90°
- Waterproof grade: IP67; Shockproof grade 5G
- Working voltage: DC12V-24V
- Overall dimensions: 85 × 50 × 43mm
- Cigarette lighter, antenna, power cord, monitor stand (battery can be added according to the project)
- Optional battery version (battery is an independent option in the catalog)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm whether you need laser positioning function (green one-character laser) and laser color/form requirements
- Confirm the number of camera channels: 1 channel / 2 channels / 3 channels / 4 channels (window mode switching)
- Confirm whether a battery version is required (when it is inconvenient for the forklift to draw power)
- Make sure to distinguish between "monitor + camera" and "battery set" quotations (the price in the catalog is divided into two parts: the complete machine and the battery)

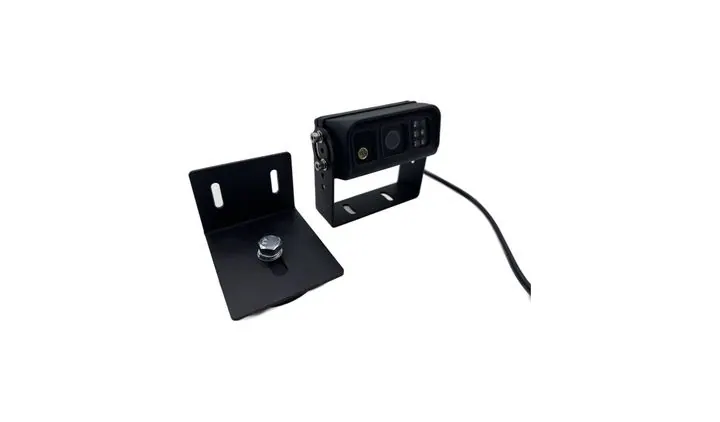

- Confirm the installation method (magnetic/fixed bracket) and installation position of the camera
- Confirm whether you need a demonstration video of the actual effect of night vision 50 meters to show to customers
- Confirm transmission distance requirements and on-site metal shielding conditions
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The laser cannot shine directly into human eyes; the installation angle prevents the laser from scanning into pedestrian areas
- The camera and monitor must be paired successfully before installation
- The transmitter and receiver should avoid large areas of metal obstruction as much as possible
- Before wiring, confirm that the voltage is within the range of DC12V-24V. Do not connect the positive and negative poles reversely
- IP67 waterproof, but when washing the car, avoid direct high-pressure water gun directed at the lens and connector for a long time
- Clean the mirror and laser window regularly; dust and mud will affect laser positioning and picture clarity
- The forklift vibrates a lot, so the bracket screws need to be checked regularly and fixed twice
