Main image and detail shots of the 15. FWR.

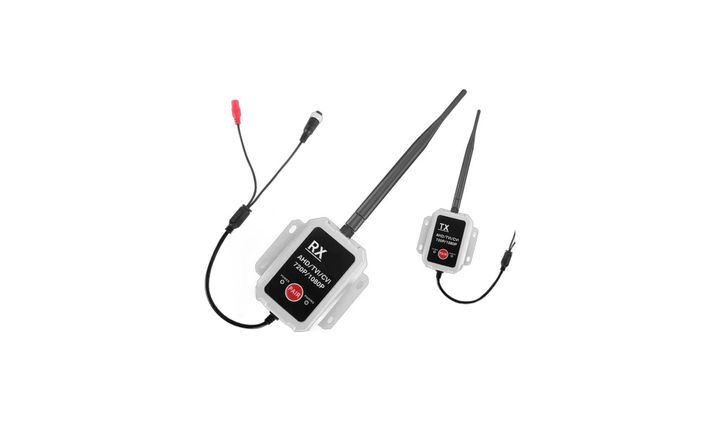

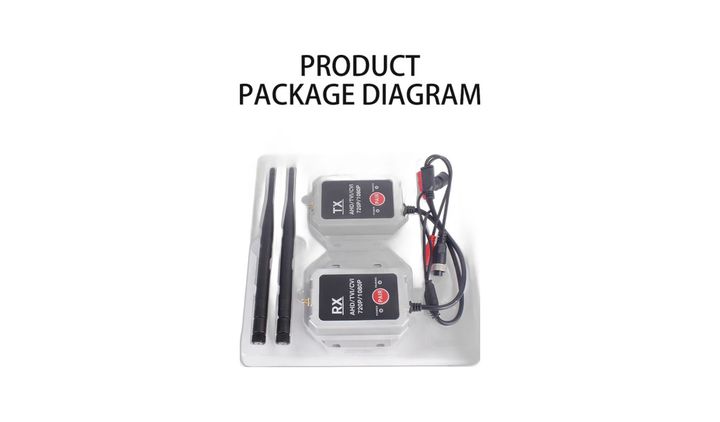

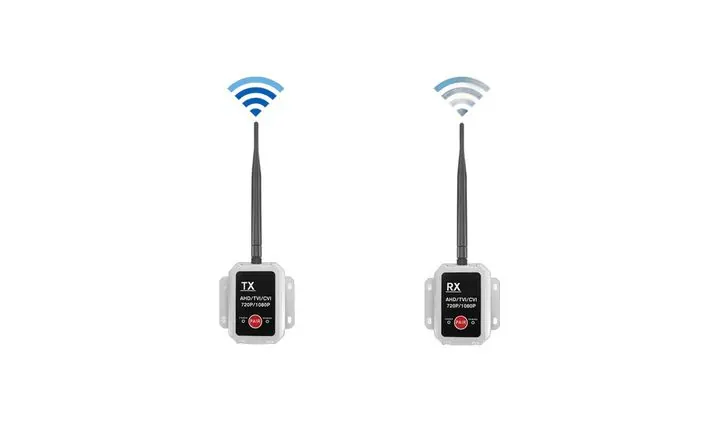

FWR wireless audio and video transmission package (transmitting + receiving, no video cable required, 500m
FWR wireless audio and video transmission package (transmitting + receiving, no video cable required, 500m transmission)
Key features

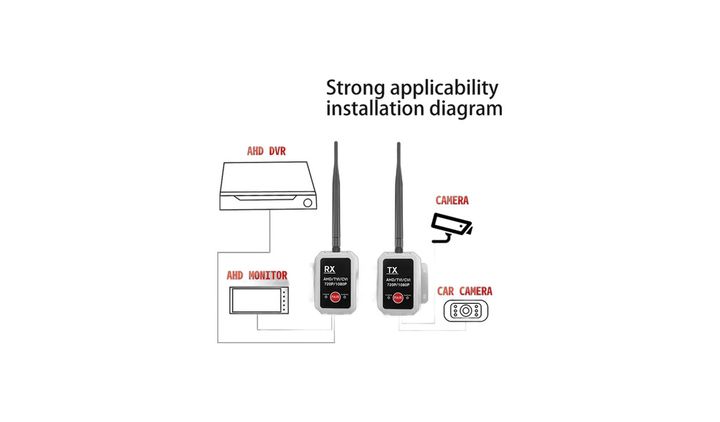

- Wireless audio and video transmitter + receiver package: camera end transmitter, cab end receiver, no need to pull long video cables
- Transmission distance 500 meters (the same series of camera kits is 120m; this model is a long-distance version)
- FHSS frequency hopping spread spectrum, anti-interference; combined with 16QAM / QPSK / BPSK debugging mode, automatically slows down to preserve the picture when the signal is weak
- Broadcast voltage 9V-45V, 12V / 24V models directly connected
- Suitable for trailers, tower cranes/hooks, wheeled machinery and other scenarios where "threads are difficult to pull"
- Video compression H.264; extension FHSS (frequency hopping)
- Transmission distance 500M
- RF transmission rate 3MHz / 6MHz / 12MHz, BER<1E-3
- Receiving sensitivity: -81dBm(Typ.)@12MHz 16QAM; -86dBm(Typ.)@12MHz QPSK (BER<1E-3)
- Resolution 720P 30fps / 1080P 25fps
- Format NTSC / PAL
- The working frequency complies with the 2.4G frequency band; the working humidity is 85%RH
- Power supply 9V-45V (wide voltage, universal for 12V / 24V models)
- The transmitter/receiver current is both 140mA(Typ.)@12V, low power consumption
- Waterproof IP69
- There are two lights on the front of the device: red light + green light
- The red light is always on after powering on
- Press and hold the button for 3 seconds to enter pairing: The red light starts to flash slowly, and the receiving end also enters the pairing state. The red light stops flashing after the pairing is successful
- When the signal transmission is normal, the green light is always on (you will know if the connection is successful by looking at the green light on site)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirmed use: trailer hook/hook/tower crane/other wiring-free scenarios
- Confirm the transmission distance requirement (500m for this model; 120m camera kit is optional for short distance)
- Confirm whether the transmitter is equipped with a camera or an MDVR/monitor; confirm the corresponding connectors and line sequence
- Confirm the voltage (9V-45V) and power supply method (ACC / normal power)
- Confirm whether an antenna is required and whether the antenna is internal or external (external antennas are further away)
- Confirm whether instructions and pairing operation cards need to be provided with the goods
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Turn off the power before installation, follow the instructions for wiring, and do not plug or unplug while the power is on
- After powering on, first check whether the red light is always on; press and hold for 3 seconds to enter pairing. The red light will stop flashing after successful pairing
- Only if the green light is always on, it means the signal is normal; if the green light is flashing or off, check the antenna and wire connection first
- Try to avoid large areas of metal obstruction between the transmitter and the receiver; metal carriages will significantly shorten the distance
- Do not use it beyond the specified voltage range; make sure the positive and negative poles are not reversed before wiring

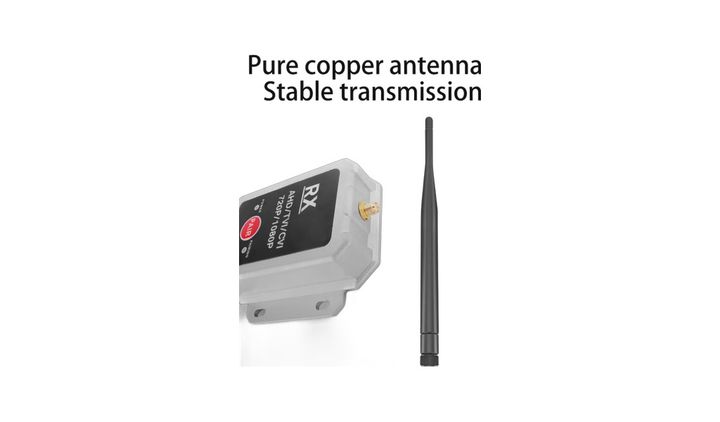

- The antenna interface should be tightened, and the antenna should be kept as far away from metal parts and other high-power wiring harnesses as possible
