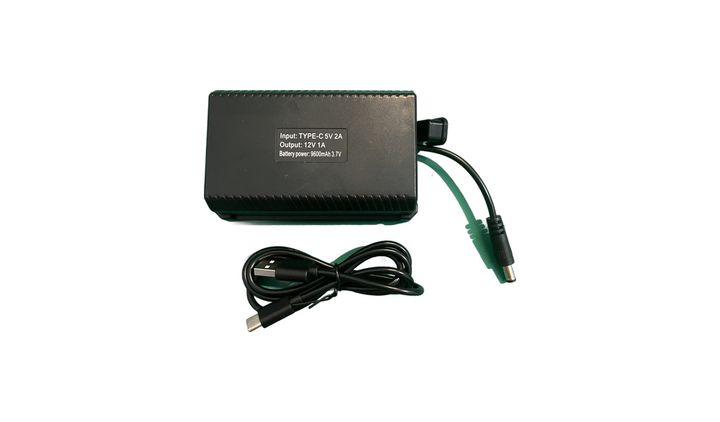

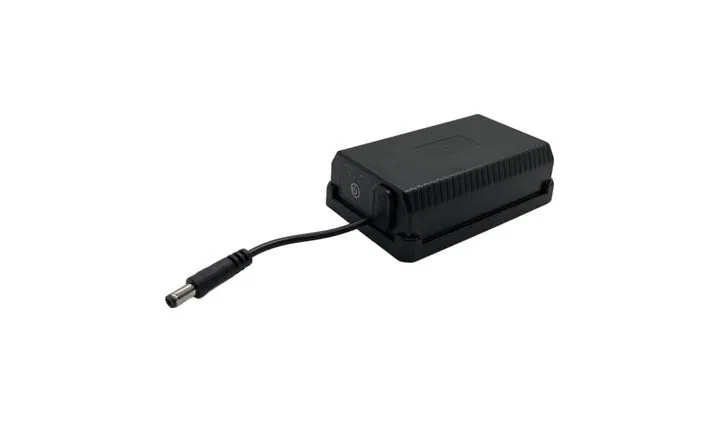

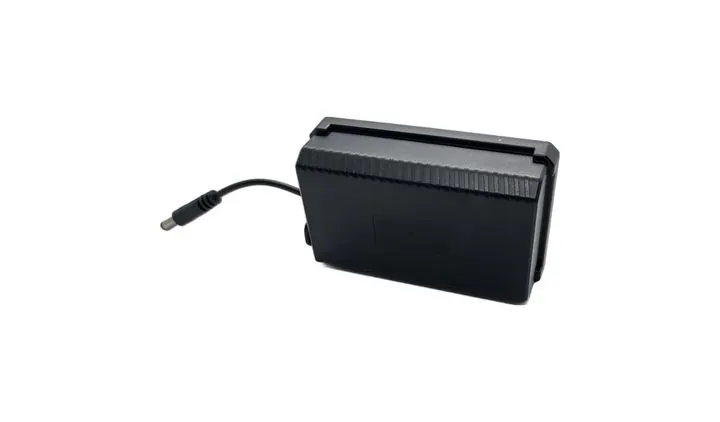

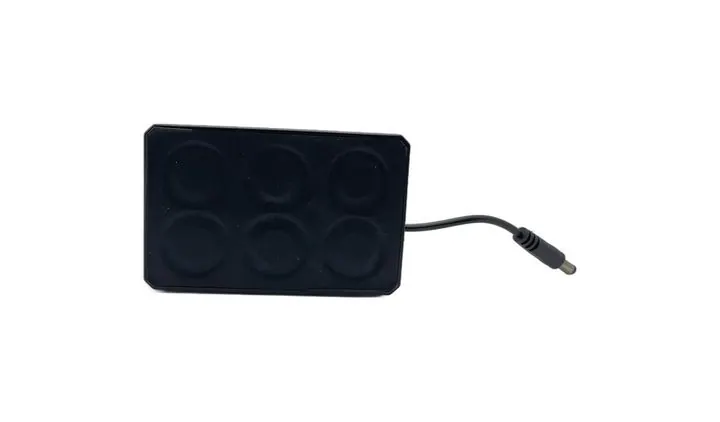

Main image and detail shots of the 9. Battery-1.
Battery-1 special battery for forklift camera (9600mAh / 12V / battery life about 15 hours / IP68)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 9600mAh large capacity, continuous power supply for about 15 hours, you can work all day without charging midway
- 12V output, battery pack specially made for forklifts/vehicle wireless cameras, just install it and use it
- Magnetic installation: directly attached to the car body, no damage to the car body, no need to drill holes, and can be taken away when changing cars
- IP68 waterproof, not afraid of rain, snow or car wash outdoors
- Equipped with UN38.3 / MSDS / 1.2 meter drop / stacking test and other transportation and safety reports (Delanneng battery cells), it can be transported by air express
- Capacity: 9600mAh
- Voltage: 12V
- Battery life: about 15 hours
- Power consumption: 1.2W (corresponding to the camera taking power)
- Working voltage 12-24V (adaptive to 12V / 24V models)
- Power 6W (full package external output capability)
- Specially designed for forklift cameras/wireless vehicle cameras
- Installation method: magnetic mount (does not damage the car body and is easy to load and unload)
- Waterproof level: IP68
- Appearance: black
- Working temperature -20~+70°C
- Battery core: Delangneng INR18650-3200
- The catalog includes: UN38.3 report and summary, MSDS, 1.2 meter drop report, stacking test report
- Air/Express shipping can be provided directly
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the device voltage and current requirements (this model has 12V output, suitable for forklifts/vehicle wireless cameras)
- Confirm the required battery life (about 15 hours for 9600mAh; a second battery pack is required for longer battery life)
- Confirm the output interface type and cable length, and whether a DC cable is required
- Confirm whether you need to provide UN38.3 / MSDS and other transportation documents with the goods (required for air freight and express delivery)
- Confirm whether the magnetic base is suitable for the customer's car body (needs a flat iron surface)
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Charging must be carried out above 0°C (charging at low temperatures will damage the battery)
- Only about 30% of the battery can be released at most at minus 20°C (The battery life will be significantly shortened in low temperature environments. Please inform the customer in advance when using it in cold areas)
- The magnetic mount surface must be a flat iron surface. Wipe off oil and dirt before adsorption
- Do not drop, hit, or approach fire or heat sources; do not disassemble by yourself
- When not in use for a long time, fully charge it before storing it, and recharge it regularly to avoid over-discharge damage
- Avoid metal objects coming into contact with the charging and discharging sockets to prevent short circuits
