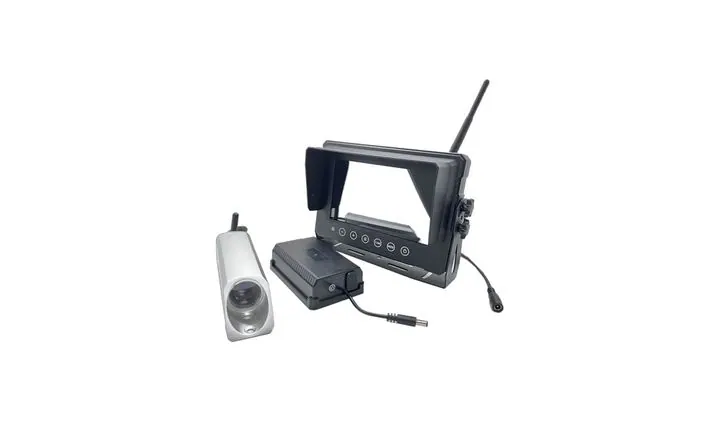

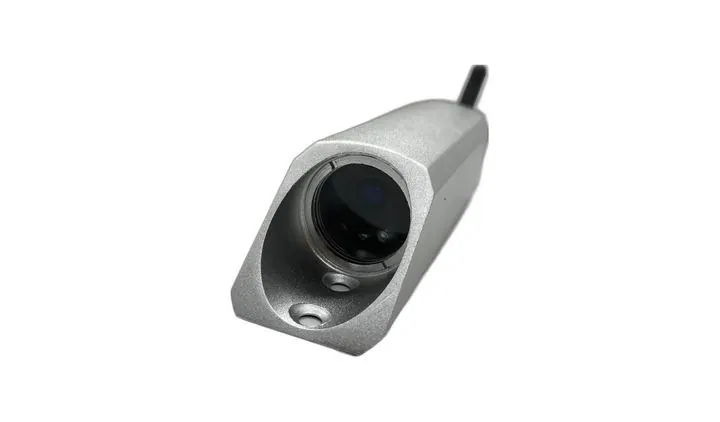

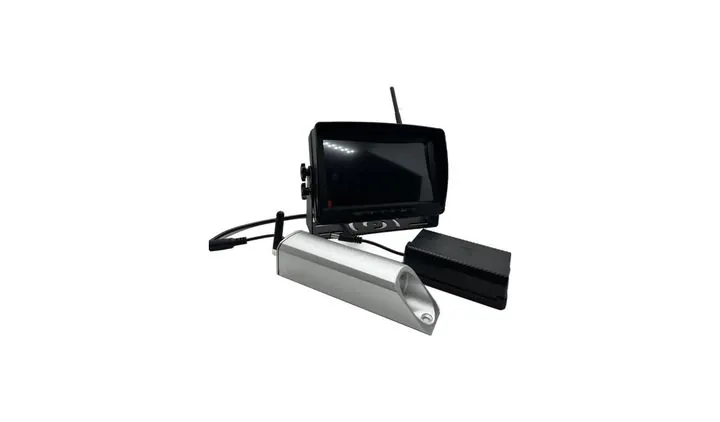

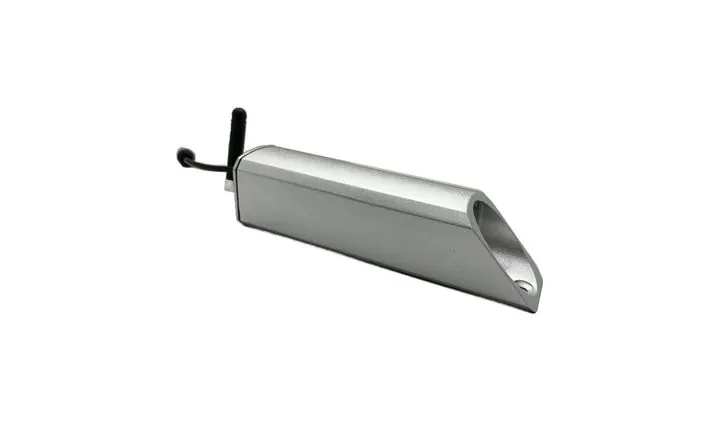

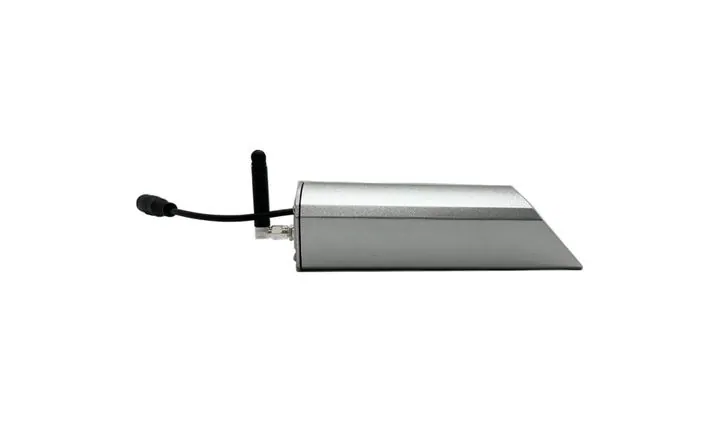

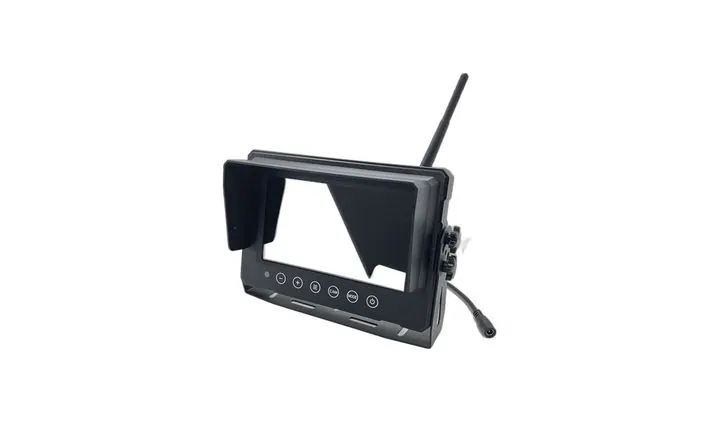

Main image and detail shots of the 4. FWR-701F.
Wireless · FWR
4. FWR-701F
FWR-701F 7-inch forklift wireless camera set (magnetic installation / 120m transmission / IP69K)
Key features
- Magnetic installation: The camera is directly attached to the forklift overhead guard/car body. No drilling or dismantling of the vehicle is required. It can be moved at any time when changing vehicles
- Wireless connection: No need to pull the video cable from the rear of the forklift to the cab, the amount of wiring is almost zero
- Transmission distance 120 meters (unobstructed), enough for use in factories and warehouses
- The camera is IP69K waterproof and can be used in forklift car washes and rainy and snowy days
- Supports manual/automatic pairing, no need for professional debugging on site
- 7-inch wireless display, brightness 500cd/m², wide voltage DC9-35V
- Type: Magnetic wireless camera for forklifts
- Effective pixels: 720P
- Viewing angle: 55° (when looking at the fork/cargo, the viewing angle is narrowed for a clearer view)
- Function: waterproof, night vision, reversing auxiliary line
- Waterproof level: IP69K
- Transmission distance (unobstructed): 120m (Max)
- Signal-to-noise ratio 38dB; automatic white balance
- Transmit power: FCC ≤26dBm / CE ≤20dBm / MIC ≤10dBm
- Working temperature -20~+70°C, humidity RH 95% MAX
- Voltage 12V
- Supports manual and automatic pairing
- Screen: LCD / TFT, brightness 500 cd/m², contrast ratio 500:1
- Type: Portable, flexible installation
- Connection: Wireless
- Video input: 1.0Vp-p 75Ω; format PAL / NTSC
- Imaging chip: 1/3" color CMOS
- Working frequency range: 2400-2510MHz
- Working voltage: DC9-35V (wide voltage, 12V / 24V universal for forklifts)
- Working temperature -20~+70°C, storage -30~+80°C
- Support multi-language menu
- Forklift forward/reverse assist (look at the fork, look at the blind spot)
- Wireless monitoring of forklifts, stackers, and warehouse handling equipment
- Fleets at ports, logistics parks, and factory workshops
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the model (forklift/stacker/other) + whether you need to see the fork (55°) or the blind spot (wider angle)
- Confirm the camera installation method: magnetic mount (this model) or fixed bracket
- Confirm whether the transmission distance is sufficient (120m without obstruction; if there is a large area of metal obstruction, it needs to be evaluated on site)
- Confirm monitor size and power supply: 7 inches + DC9-35V
- Confirm whether you need to add a battery pack (when it is inconvenient for the forklift to obtain power) - the battery in the catalog is an independent option
- Check if you need extension cords, antennas, and spare magnetic bases
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The magnetic mount surface must be a flat iron surface; wipe away oil and dirt before adsorption
- The camera and monitor must be paired successfully first and then fixed to avoid finding no picture after installation
- Try to avoid large areas of metal obstruction between the transmitter and the receiver
- IP69K waterproof, but when washing the car, avoid direct high-pressure water gun directed at the lens and connector for a long time
- Before wiring, confirm that the voltage is within the range of DC9-35V. Do not connect the positive and negative poles reversely
- Regularly check whether the magnetic mount is strong. The forklift vibrates greatly. It is recommended to install a safety rope/tie for secondary fixation
