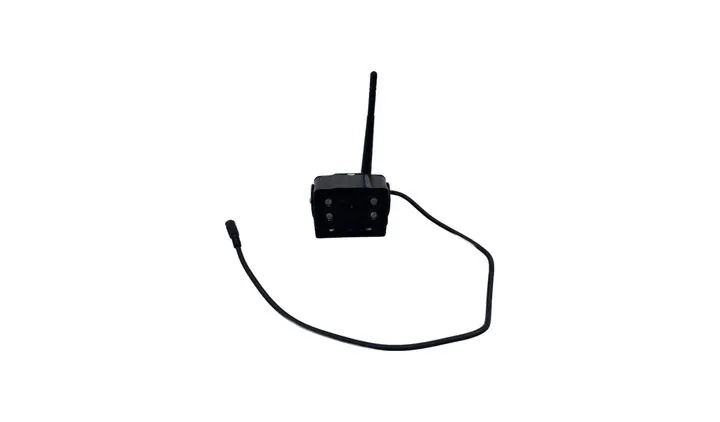

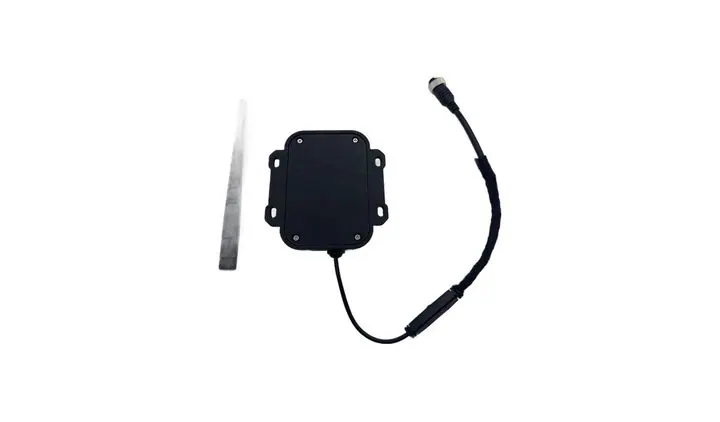

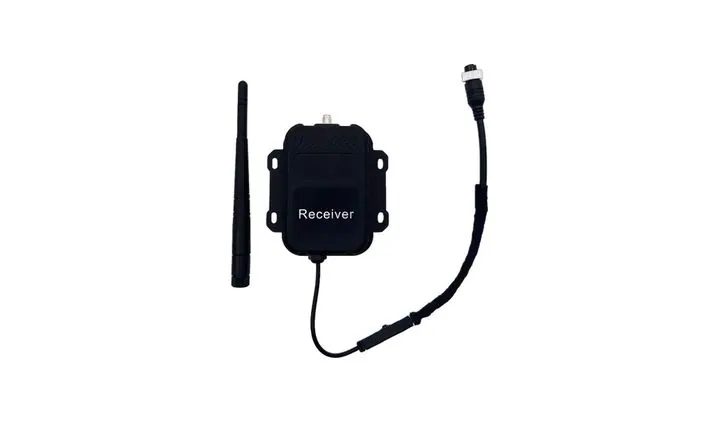

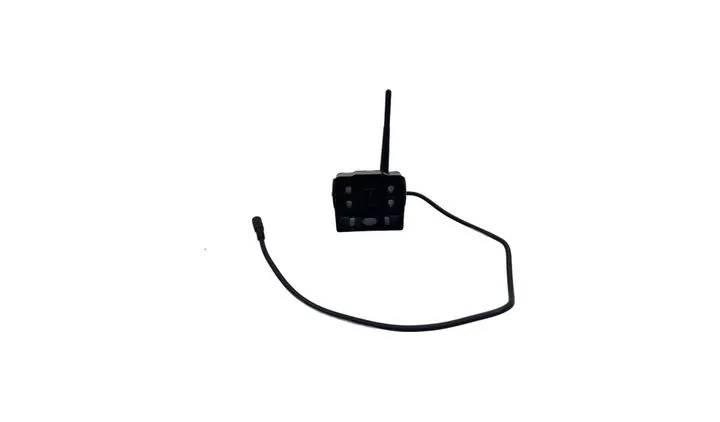

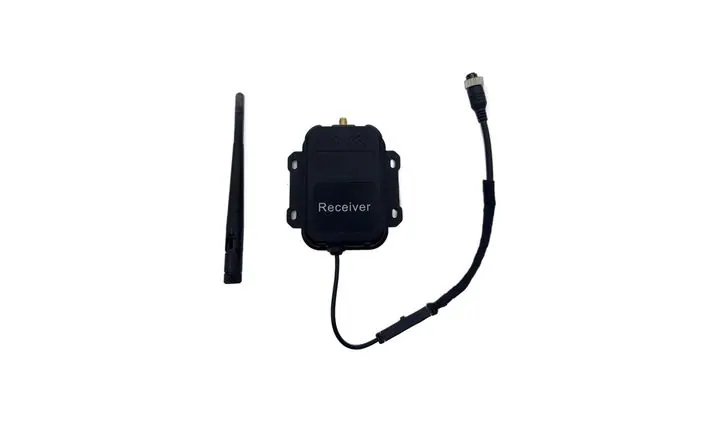

Main image and detail shots of the 17. FWR-139.
FWR-139 Wireless Camera + Receiver Kit (720P Starlight Night Vision / IP69 / 120m Transmission)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- Wireless camera + receiver set, no video cable needed; Transmission distance 120 meters
- Starlight-level infrared camera (1/4" CMOS starlight infrared), minimum illumination 0.5Lux, pictures at night
- IP69 waterproof, suitable for vehicle working conditions; input format compatible AHD / CVI / TVI 1080P, 720P
- Available with 9V-45V wide voltage power supply; the battery version has a built-in 9600mAh and a battery life of about 15 hours
- Supports manual/automatic pairing, no professional settings are required on site
- Image sensor: CMOS 1/4" Starlight Infrared
- Effective pixels: 1280×720P (1080P optional)
- Viewing angle: 110°(H) × 60°(V)
- Video format: PAL/NTSC
- Waterproof: IP69; minimum illumination 0.5Lux
- Power supply DC12-36V
- Dimensions 110 × 70 × 73mm; weight 650g
- Universal camera version: dimensions 80 × 70 × 60mm, weight 300g
- Battery capacity 9600mAh
- Charging: DC 5.5 interface, 12-24V input, fully charged in about 6 hours
- Battery life: about 15 hours
- Suitable for trailers/dumping/temporary installation scenarios where it is inconvenient to connect to the power supply
- Dimensions 100 × 70 × 24mm; weight 120g
- Power supply 9V-45V, TX / RX current are about 140mA (Typ.)@12V
- Working frequency 2400-2483.5MHz (2.4G frequency band)
- Transmission distance 120M
- Spread spectrum mode FHSS; debugging mode 16QAM / QPSK / BPSK
- Transmit power TX Power = 24dBm ± 1dBm
- RF rate 3MHz / 6MHz / 12MHz
- Video compression H.264; resolution 720P 30fps
- Camera operating temperature -20~+70°C (another mark is -35~+70°C), storage -30~+80°C (another mark -40~+80°C)
- Working humidity 85%RH
- Fits: Wireless rear view/side view of trailers, trucks, forklifts, and construction machinery
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm version: normal power supply version or battery version (9600mAh, battery life about 15 hours)
- Confirm camera version: infrared version (110°) or universal camera version (300g small model)
- Confirmed resolution: Currently only 720P, there is no 1080P version for the time being (Customers who want 1080P must confirm with the factory first)
- Confirm whether the receiving end is connected to a monitor or MDVR, as well as the corresponding connectors and line sequence
- Confirm the voltage (9V-45V / DC12-36V) and power supply method (ACC / normal power)
- Confirm whether the transmission distance is sufficient (120m; for further distance, choose the 500m long-distance package)
- Check if extension cords, antennas and mounting brackets are needed
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Turn off the power before installation; follow the wiring instructions and make sure the positive and negative poles are not reversed
- The camera and receiver must be paired before use; if pairing fails, check the distance and antenna first
- The transmitter and receiver should avoid large areas of metal obstruction. Metal carriages will significantly shorten the transmission distance
- Version with battery: Charge above 0°C (see battery precautions for details), do not store it until it is not used for a long time
- IP69 waterproof, but when washing the car, avoid direct high-pressure water gun directed at the lens and connector for a long time
- Clean the lens regularly. Mud and dirt will affect night vision
