Main image and detail shots of the 6. FWR-1002-30.
Wireless · FWR
6. FWR-1002-30

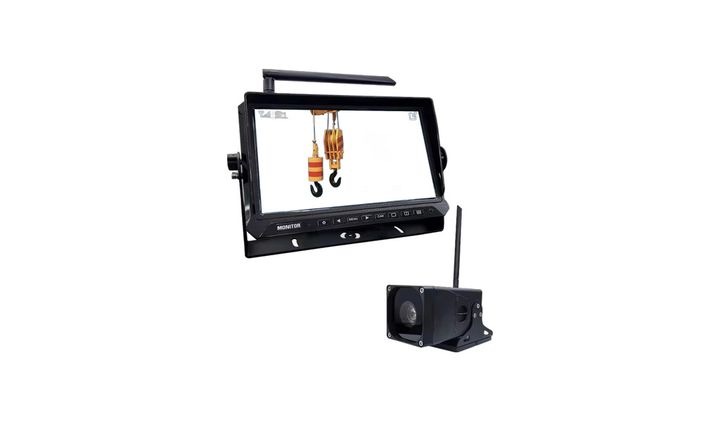

FWR-1002-30 30x optical zoom wireless hook monitoring set (10.1-inch monitor + 30× zoom camera)
Key features
- 30x optical zoom + auto focus (screen display
- Wireless image transmission, no need to follow the cable: The camera and the monitor are connected wirelessly, and the rotating structures such as the tower crane and the telescopic arm of the crawler crane are no longer bound by cables, eliminating cable bending and wear
- The operator does not need to go back and forth to command, and the hoisting positioning is more accurate and safer
- Optional double-pedal zoom controller: Zoom in with the left foot, zoom in with the right foot, zoom when stepping on it, keep your hands on the operating handle
- IP69K all-metal body, -40~70°C wide temperature, suitable for harsh construction site environments
- Image sensor: 1/2.8" CMOS, 1080P (1920×1080)
- Optical zoom 30x + auto focus (Screen display X30 / AF)
- Wireless transmission: digital wireless video transmission, camera with antenna, supports one-to-many expansion

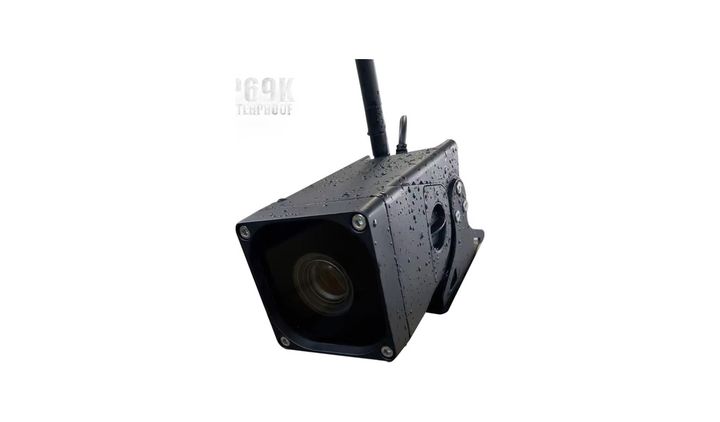

- Shell: full metal body (anti-collision and impact resistance)
- Waterproof and dustproof: IP69K (resistant to high-pressure water washing, heavy rain and construction site dust)
- Ambient temperature: about -40~+70°C
- Power supply: DC12-24V

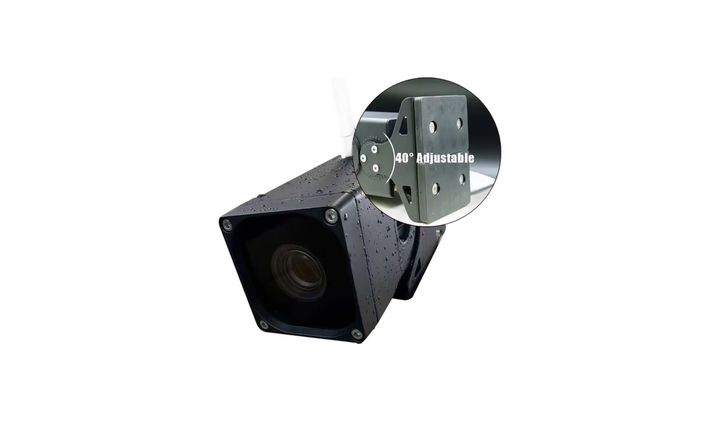

- Installation: metal bracket, adjustable tilt (with angle scale)
- Dimensions: Approx. 85 × 185 × 83mm
- Screen: 10.1-inch LCD (7-inch optional in the same series), 1024×600 (16:9)
- Comes with sunshade: You can see clearly even under strong light
- Wireless reception: support 1 pair 1 / 1 pair 2 / 1 pair 4 camera
- Display mode: single screen/dual screen/multi-screen, loop preview
- Image quality adjustment: brightness/contrast/hue/volume, support image flipping
- Video storage: supports SD card loop recording (optional)
- Power supply: DC12-36V wide voltage
- Dimensions: Approx. 257 × 168 × 65mm (10.1-inch model)
- Dual Foot Zoom Controller (left foot to zoom out/right foot to zoom in)

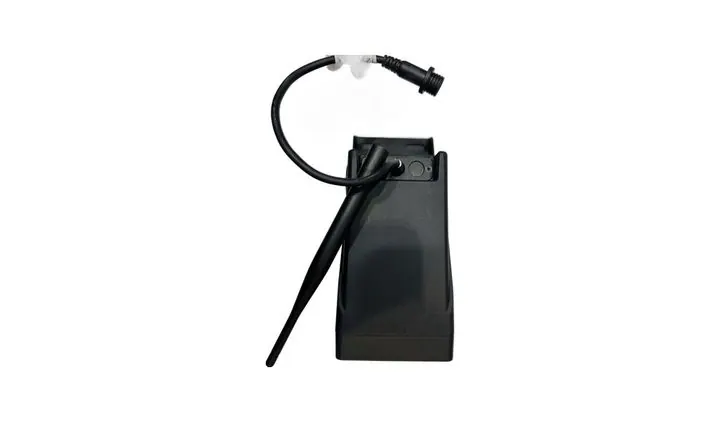

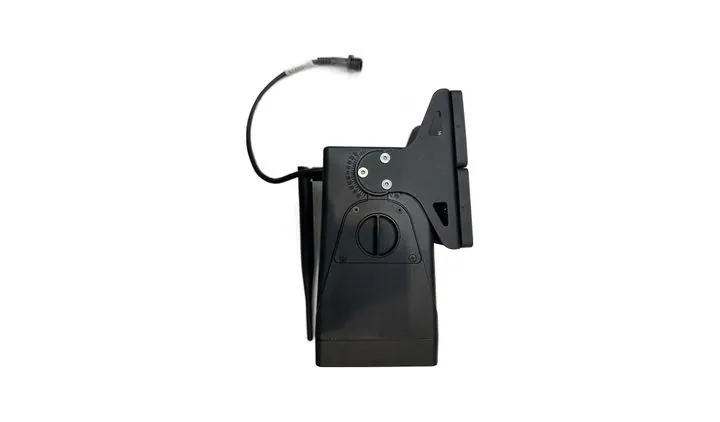

- Remote control battery pack (DC12V) - independent power supply for the hook end camera
- Rear/side wireless cameras (system up to 1 to 4)
- 7-inch monitor version
- Tower crane hook monitoring · Crawler crane / truck crane / truck crane operation observation
- Port portal crane and ship unloader · Bridge erecting machine · Pile driver
- Long-distance visualization operations of other lifting and construction machinery
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the model: crane type (tower crane/crawler crane/truck crane/port machinery) and installation location
- Confirm whether you need Double Foot Zoom Controller (optional)
- Confirm the power supply method of the camera: mechanical power (DC12-24V) or remote control battery pack
- Confirm if rear/side wireless cameras need to be expanded (up to 1 to 4)
- Confirm monitor size: 10.1-inch (this model) or 7-inch version
- Confirm whether you need SD card recording function and card capacity
- Confirm whether the wireless transmission distance meets the working conditions (on-site occlusion needs to be evaluated)
- Confirm the accessories list: antenna, bracket, power cord, cigarette lighter cord, etc
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The camera mounting bracket must be locked. The lifting equipment will vibrate greatly. It is recommended to add secondary fixation
- The antenna interface should be tightened and the antenna should be kept as far away from metal structures and other high-power wiring harnesses as possible
- Try to avoid large areas of metal obstruction between the transmitter and the receiver; if the distance is exceeded or the obstruction is serious, the picture will be lost
- The power supply voltage must be within the calibrated range (monitor DC12-36V, camera DC12-24V), and do not connect the positive and negative poles reversely
- IP69K waterproof, but when washing the car/rinsing equipment, avoid direct high-pressure water gun directed at the lens and connectors for a long time
- The zoom lens and housing should be cleaned regularly; the construction site is dusty and a dirty mirror will significantly affect the clarity after zooming
- The foot controller wiring harness is fixed to prevent it from being stepped on on the cab floor
