Main image and detail shots of the PTZ.

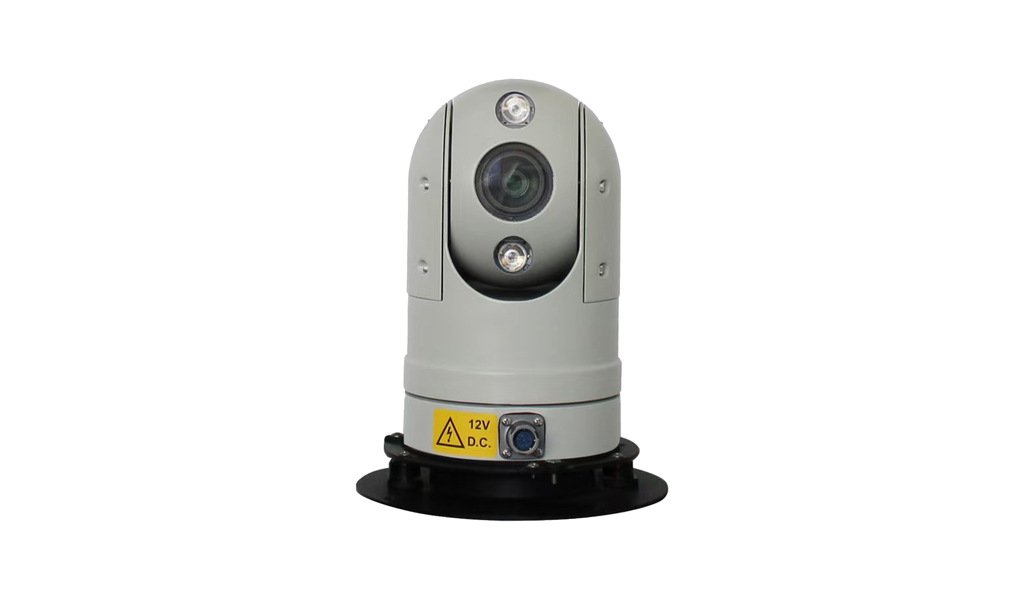

PTZ car PTZ camera (20x optical zoom/AHD 1080P/IP67 all metal)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 20x optical zoom with 4.7-112.8mm motorized lens: precision inspection of high-voltage insulators and towers
- 2MP 1/2.8 inch low-light CMOS, AHD-H 1080P coaxial HD output, clear and delicate image
- 360 degree continuous horizontal rotation; vertical range 0-90 degree; 256 presets; preset speed 300°/s
- Digital wide dynamic, fog penetration and strong light suppression
- Integrated glass heating for defogging plus built-in temperature control device
- 2 x high-power OSRAM LED array lights, night vision range up to 100m
- All-metal armored shell: anti-corrosion, dustproof and anti-impact, IP67 waterproof
- Precision motor drive: low speed, stable, smooth operation without jitter
- Strong magnets for portable, quick deployment on engineering vehicles or metal structures
- Upright installation with shock-absorber fixed points for all-weather vehicle monitoring
- Industrial-grade components suitable for extremely bad weather
- Control interface: RS485; can be controlled by joystick / keyboard / monitor menu
- Power supply DC11V - DC24V; dimensions Φ126 x 214 mm, weight about 3 kg
- AHD output, can work together with MDVR (per supplier note)

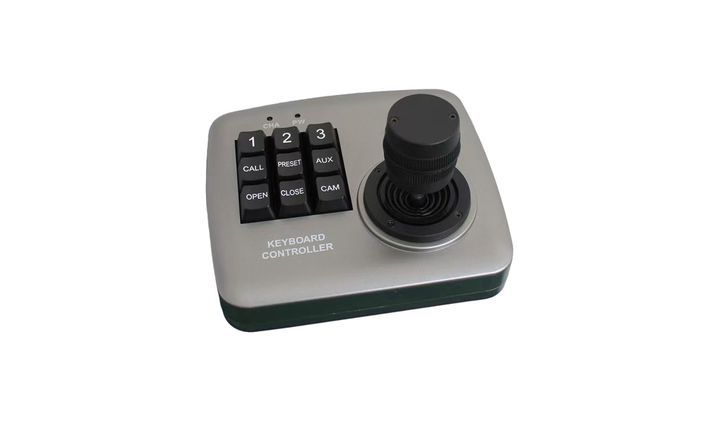

- Optional keyboard (with screen / without screen) and bracket for a complete set
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the control method: joystick / controller with screen / keyboard without screen / display menu / RS485 keyboard (such as K022)
- Confirm the number of gimbals and controllers (keyboards) and whether brackets are required
- Confirm the power supply method (DC11V/DC24V) and wire harness length
- Confirm the output format (AHD 1080P) and which MDVR/monitor it is paired with
- Confirm the installation method (roof/pole/magnetic mount) and whether a vibration-absorbing base is required
- Confirm whether special requirements such as anti-fog heating, wipers, etc. are needed
- Confirm whether the PTZ control protocol is compatible with the customer’s existing host
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- There should be no obstructions within the rotation range of the gimbal, otherwise the mechanism will be jammed
- Do not forcefully rotate the gimbal with your hands to avoid damaging the motor and limiter
- Before installing the magnetic mount, make sure that the suction surface is flat, clean, and firm. You must confirm again before driving

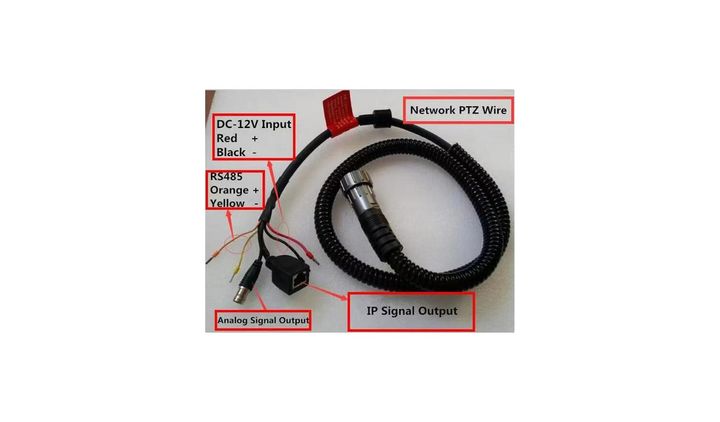

- RS485 control line A/B cannot be connected reversely, otherwise control will not be possible
- Regularly check the sealing and drainage of the ball cover to avoid fogging due to water ingress
- Rain, snow, and mud will affect the gimbal gears and lens imaging, so clean them up promptly after operation
- For long-term outdoor use, pay attention to lightning protection and moisture-proof, and make sure the wiring port is waterproof
Specification guides for this kind of product
Written by our engineers for buyers comparing specifications, not slogans.
MDVR Buying Guide: How to Specify a Mobile DVR
How to choose a mobile DVR: channel count, SD versus hard drive, H.264 versus H.265, GPS and 4G, temperature ratings, UPS power and how much footage to keep.
The Wiring Mistake That Kills Monitors in MDVR Installations — And the Zero-Cost Fix
Why monitors fail months after an MDVR installation: power feed through the shared aviation cable, and the wiring change that isolates the two.
25, 30, 50 or 60 fps: What Actually Limits a Vehicle Camera’s Frame Rate
Why a camera that can run at 60 fps ships at 25, what the analogue and processor limits are, and how to check a frame rate claim.
Other models in this range
MDVR-504 (MR9504E-B1 / 9504E) 4-channel 1080P car video recorder (dual SD card player)
4-channel 1080P mobile DVR with SD card storage (card machine), no hard disk
View details

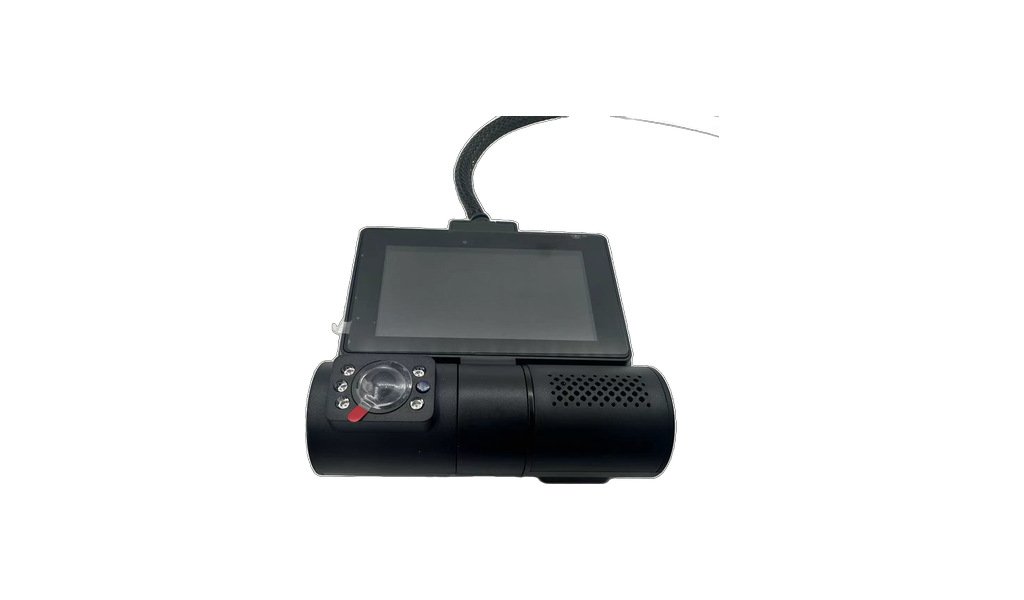

JFD-W17 (G56) 4G dual-lens touch screen recorder (front 1080P + rear 1080P / 3-inch touch screen)
4G mini dual-lens dash cam with 3 inch touch screen (640 x 360)
View details
JFD-W18 (P85) 4G dual lens recorder (2K + 1080P / 3-inch screen / Cloudspirit)
Dual-lens 4G dash cam: 2K + 1080P dual recording
View details

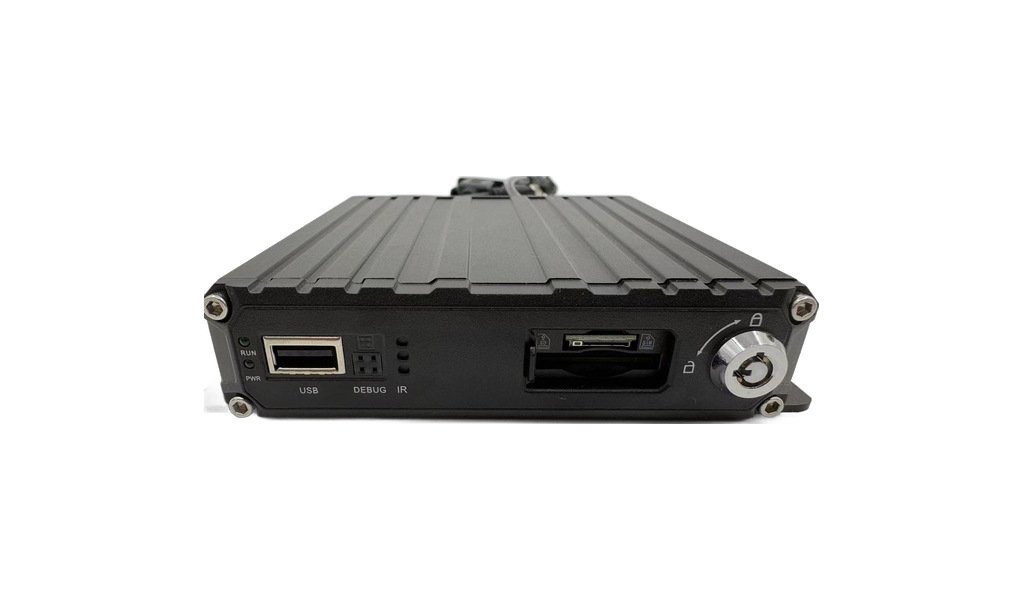

MDVR-504EC (MR9504EC / 9504EC) 4-channel 1080P wide-voltage car video recorder (single SD card player)
4-channel 1080P SD mobile DVR with single SD card slot, no hard disk
View details

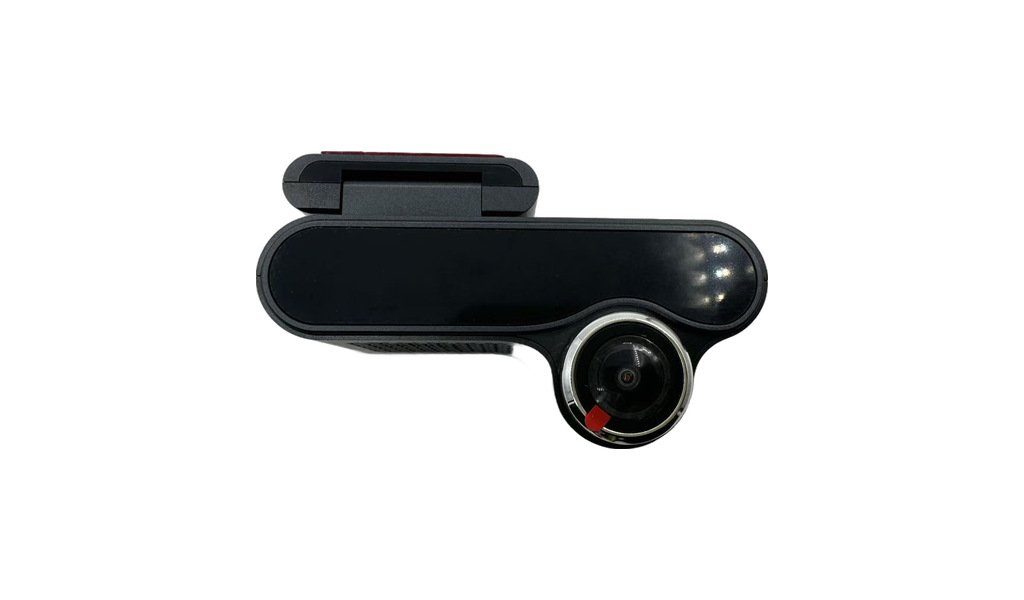

JFD-W20 4G radar cloud recorder (front and rear 24GHz millimeter wave radar + cloud platform / UboxPro)
2K + 1K dual-lens dash cam with 4G remote view, GPS + LBS base-station positioning
View details

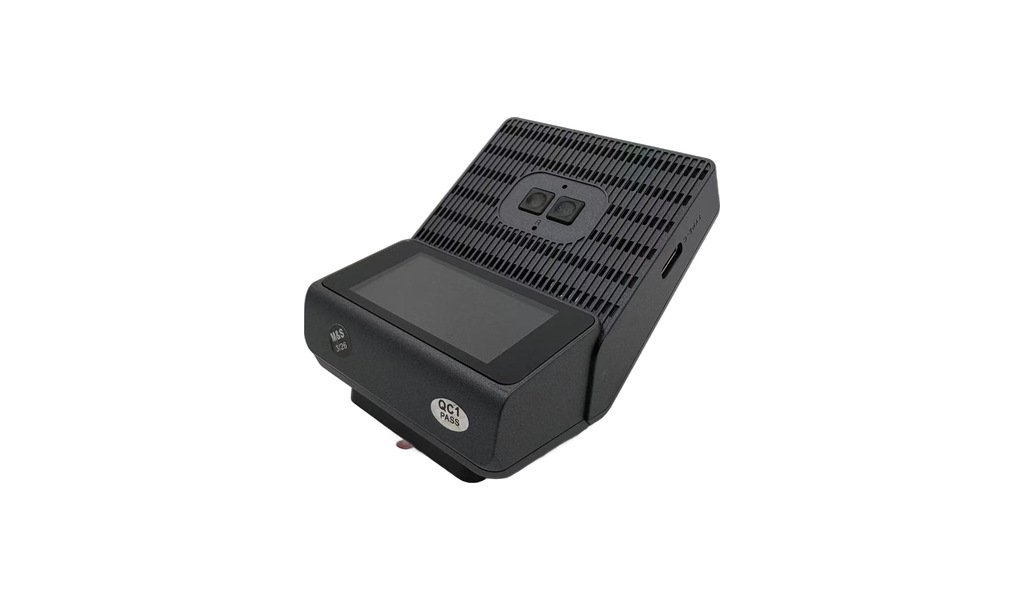

JFD-W21 (P87) 4G dual lens 2K + 1080P mini recorder (2-inch screen / Cloudspirit)
