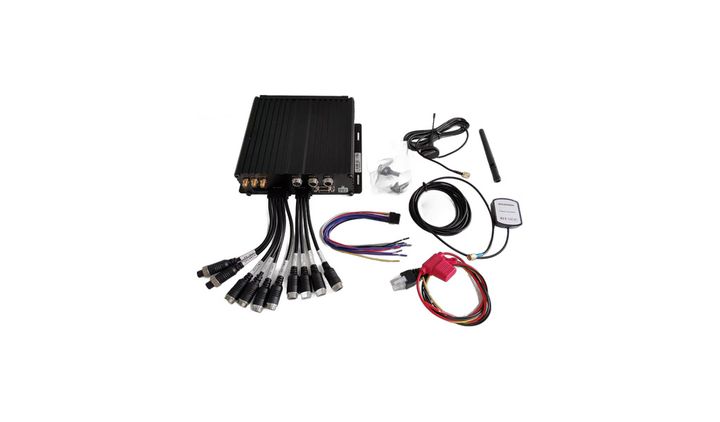

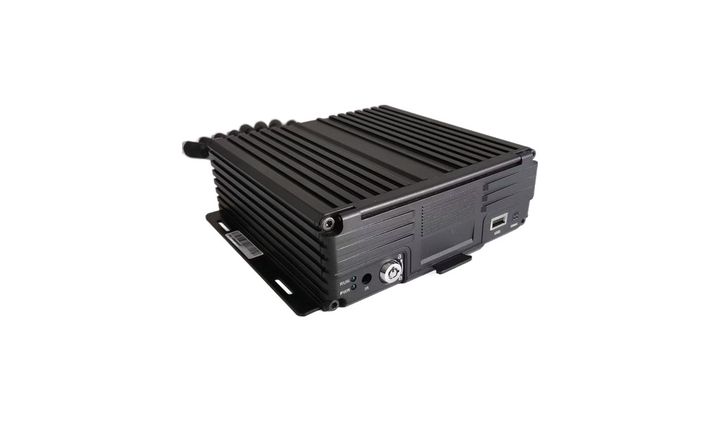

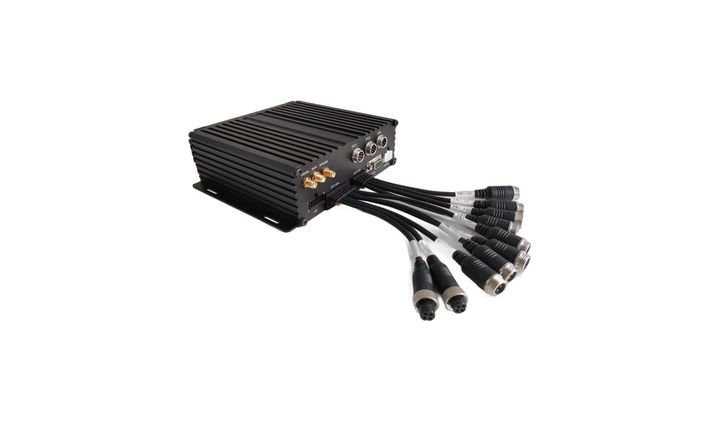

Main image and detail shots of the MDVR-708C.
Recording · MDVR & JFD
MDVR-708C
MDVR-708C (MR9708C / 9708C) 8-channel 1080N hard drive vehicle video recorder (five-in-one)
Key features
- 8-channel mobile DVR with 2.5 inch hard disk / SSD storage
- Built-in Hisilicon high-performance image processor, H.265 standard (about half the storage of H.264) with H.264 also supported
- 8CH 1080N AHD / TVI / CVI / CVBS + IPC five-in-one video input, strong compatibility
- 8+1 real-time preview and storage; 1, 2, 3, 4, 9 split display
- 1 CH synchronized AV output + 1 CH VGA output
- Storage: 2.5 inch HDD / SSD up to 2TB, plus 1 SDXC card up to 256GB (English SPEC lists 512GB, to be confirmed)
- Automatic hard disk heating for cold-start conditions
- Disaster-recovery interface and UPS power input support
- Built-in supercapacitor: no data loss or disk damage on abnormal power outage
- Special file management with data encryption; proprietary bad-track detection keeps recording continuous and extends disk life
- Wide voltage DC 8-36V / 9-32V professional vehicle power design with under-voltage, short-circuit and reverse-connection protection
- Smart power management: low-voltage shutdown, low consumption after flame-out
- Built-in G-sensor for real-time monitoring of vehicle driving behaviour
- Supports 4CH 360 degree splicing (360 panoramic splicing)
- Independent voice intercom; supports ultrasonic fuel level sensor
- Image horizontal / vertical mirror adjustment and 90 / 180 / 270 degree rotation
- Interfaces: 8ch M12-4 aviation camera input + 1 x 6-pin aviation network port, 4 alarm inputs, 1 alarm output, 1 LVTTL UART, 1 USB 2.0, IPC (4ch M12-6)
- GNSS GPS / BD / GLONASS, 3G / 4G (CDMA / EVDO / GPRS / WCDMA / FDD LTE / TDD LTE), WiFi 802.11b/g/n 2.4GHz
- Supports timed GPS position upload in standby, meeting JT/T794
- Power: standby 3mA, max 30W (@12V 2.5A / @24V 1.25A)
- Housing 162 x 180 x 50.5 mm (English SPEC 143.8 x 187 x 55.6 mm)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This model is an 8-way hard drive. Please confirm whether it needs a 2.5-inch hard drive/SSD and its capacity (maximum 2TB)
- The two working voltage documents are marked 8-36V and 9-32V respectively. Please confirm with the factory before placing an order
- SD card capacity: Write 256G for parameter in this directory, and 512G for factory English SPEC. Please confirm before placing an order
- Confirm the number of channels: 8 channels are standard configuration. Do you need to add IPC channels?
- Not equipped with remote control by default
- Confirm options: 4G, GPS/Beidou, WiFi, disaster recovery interface, UPS, ultrasonic oil sensor, 360 panoramic stitching, voice intercom
- Confirm the ministry standard agreement (JT/T808-2011/2019, JT/T1076, JT/T1078) and platform docking, and who provides the SIM card

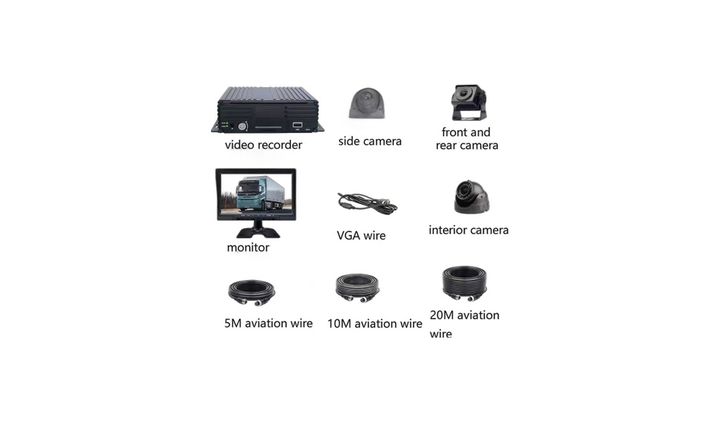

- Confirm the number of cameras, cable length and connector type (8-way aviation connector + 1-way 6-core aviation connector)
- Confirm power source (ACC or permanent live) and whether delayed shutdown is required.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The power supply is 8-36V; a dedicated vehicle power cord must be used. The red wire is normally powered, the orange wire is ACC, and the black wire is grounded. The positive and negative poles cannot be reversed
- The hard disk model must be installed horizontally and fixedly, with an inclination angle of no more than 45 degrees, and vibration damping must be done, otherwise the life of the hard disk will be shortened
- The host must be installed in a waterproof, shockproof, and interference-proof location, away from the air outlet of the air conditioner
- The hard disk and SD card should be regularly checked for health status and video coverage, and important videos should be backed up in a timely manner
- Disconnect the power before inserting or removing the hard drive, SD card or SIM card.
- 8-way camera wiring harness and power cord are routed separately to avoid picture interference and snowflakes
- When powering on for the first time in a low-temperature environment, wait for the hard disk to heat up before checking the video
- The fuse of the fuse must be above 10A; the diameter of the extension cord should be no less than 1.5mm²
