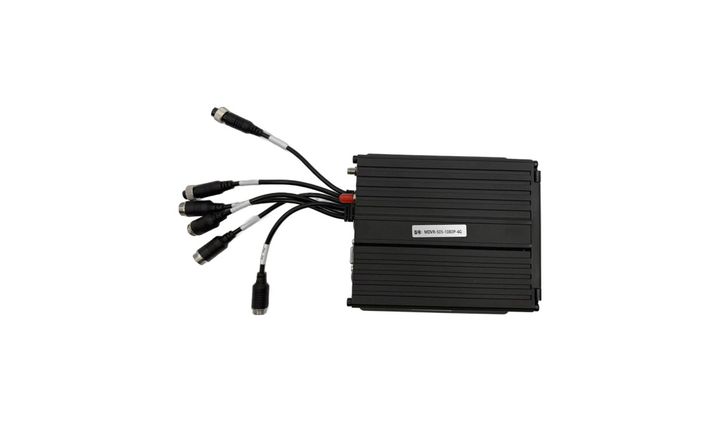

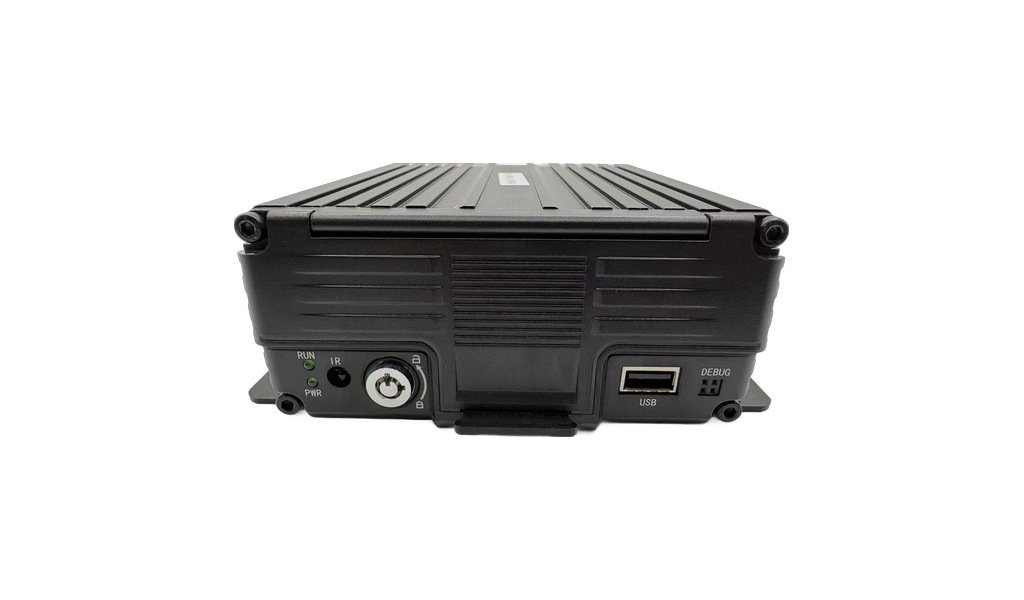

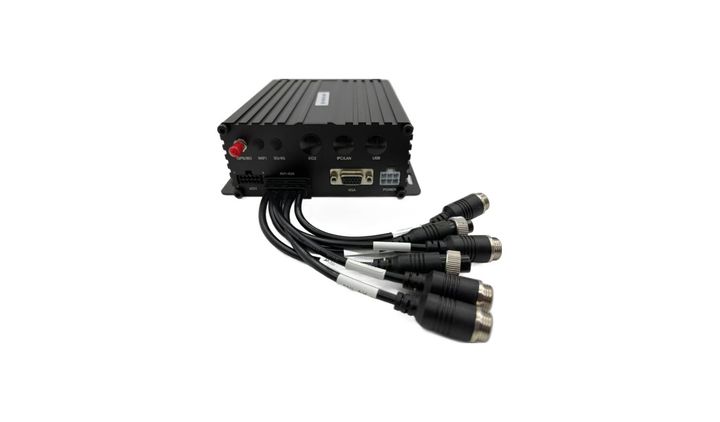

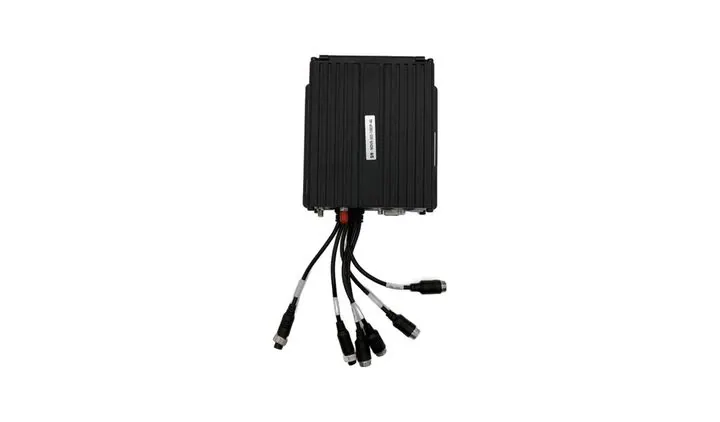

Main image and detail shots of the MDVR-704C.
MDVR-704C (MR9704C / 9704C) 4-channel 720P hard drive vehicle video recorder (five-in-one)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 4-channel mobile DVR with 2.5 inch hard disk / SSD storage
- H.265 / H.264 encoding, high compression ratio
- 4CH 720P AHD / TVI / CVI / CVBS five-in-one video input (AHD / TVI / CVI / analog)
- 4CH 720P real-time decoding, local 4-channel playback, single / quad display
- 1 CH VGA video output + 1 CH aviation AV output
- Storage: SD card up to 512G plus 2.5 inch HDD / SSD (interface definition lists up to 4TB, parameter table 2TB, to be confirmed)
- 9-32V DC wide-voltage professional in-vehicle power design with under-voltage / short / reverse-plug protection
- Smart power management: low-voltage shutdown, standby only 4mA @12V
- Built-in supercapacitor to avoid data loss and disk damage on sudden power outage
- Proprietary hard disk bad-track detection: continuous recording and longer disk life
- Recording quality class 1-6 selectable; audio and video synchronized recording (G.711A / G.711U / G.726)
- 4 alarm inputs, 1 alarm output, 1 LVTTL UART, 1 USB 2.0 (USB stick / mouse)
- GNSS GPS / BD / GLONASS optional with antenna detection; built-in 4G netcom; WiFi 802.11b/g/n 2.4GHz optional
- IPC interface: 6-pin M-12 aviation connector
- Reversing image ranging assistance; image horizontal / vertical mirror adjustment
- Unique GPS drift suppression algorithm; OSD in Chinese / English, mouse operation
- Metal housing 162 x 153 x 52 mm; typical consumption AVG 6.24W (without peripherals)
- Also available in a local version without 4G and without GPS
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm whether you want the version with 4G/GPS or the local version "without 4G without GPS"
- The resolution of this model is 720P / 960H / D1 (4-channel 720P real-time); if you need 1080P, please choose 8-channel 708C or other models
- Hard drive capacity: The parameter table says the maximum 2.5-inch hard drive is 2TB, and the interface description says the maximum is 4TB. Please confirm before placing an order
- Not equipped with remote control by default
- Confirm options: SD card capacity, IPC camera, WiFi, GPS antenna, TTS speaker
- Confirm the ministry’s standard agreement and platform docking, and who will provide the SIM card?
- Confirm the number of cameras, cable length and connector type (4-way aviation connector)
- Confirm power source (ACC or permanent live) and whether delayed shutdown is required.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The power supply is 9-32V; the red wire is connected to normal power, the orange wire is connected to ACC, and the black wire is grounded. The positive and negative poles cannot be reversed
- The hard disk model must be installed horizontally and fixedly and well damped to avoid long-term strong vibrations that shorten the life of the hard disk
- The host must be installed in a waterproof, shockproof, and interference-proof location, away from the air outlet of the air conditioner and the audio-visual equipment in the car
- Disconnect the power before inserting or removing the hard drive, SD card or SIM card.
- The camera wiring harness and power cord should be routed separately to avoid image interference and snowflakes
- Regularly check the hard disk health status, recording time and loop coverage, and back up important videos in a timely manner
- Unused channels must be deactivated in the menu to avoid video loss alarms
- The fuse of the fuse must be above 10A; the diameter of the extension cord should be no less than 1.5mm²
