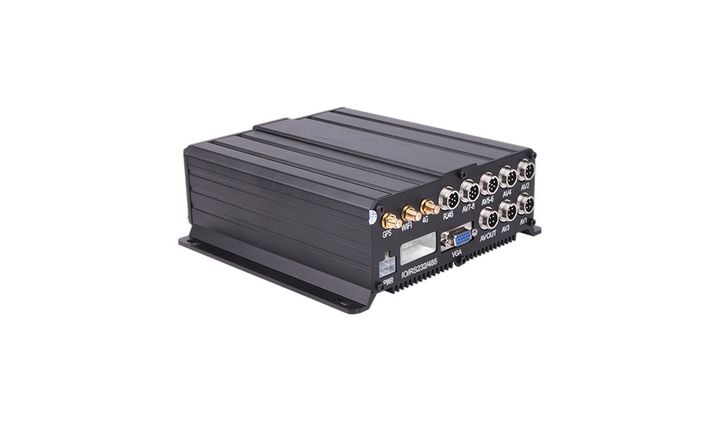

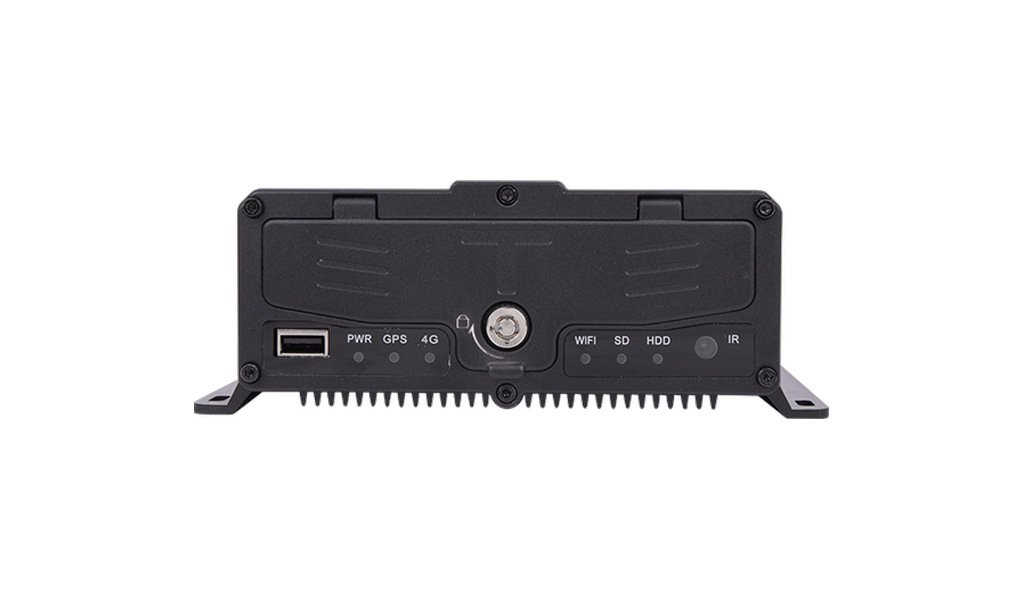

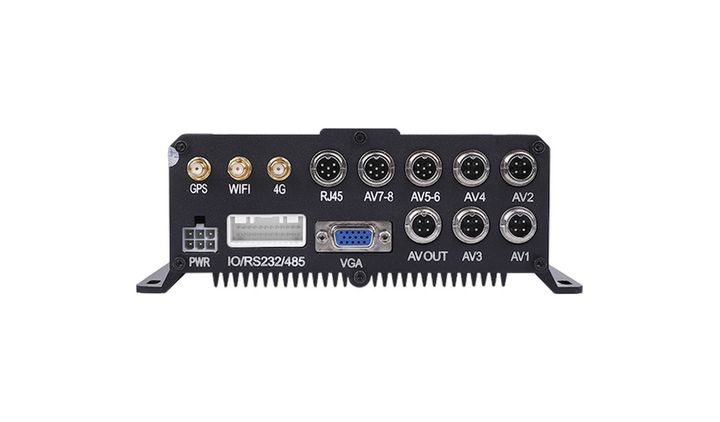

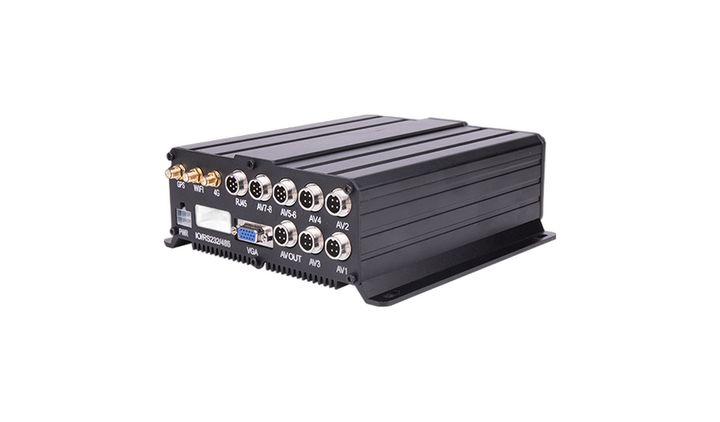

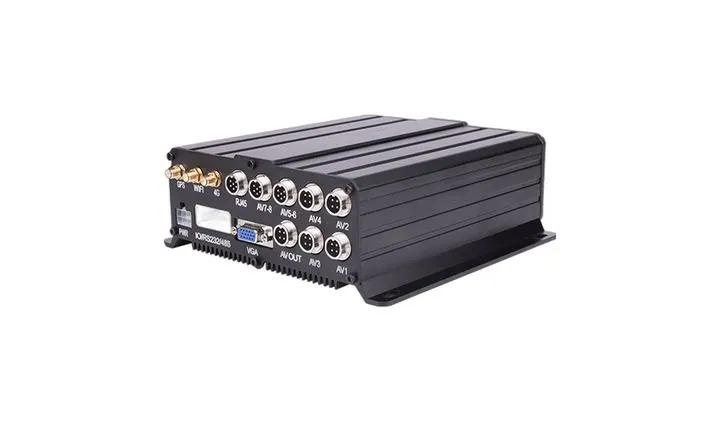

Main image and detail shots of the MDVR-286L.
Recording · MDVR & JFD
MDVR-286L
MDVR-286L (MV-286L) 8-channel AI hard disk vehicle video recorder (AHD output / ADAS+DMS+BSD)
Key features
- 4 / 8 channel versions, HD resolution supports 1080P*30FPS, 720P*30FPS and D1
- H.265 & H.264 codec: high compression ratio, saves storage space and transmission bandwidth
- One SATA hard disk (up to 4TB) + one SD card (up to 512G) + 1 USB interface
- Built-in AI intelligent algorithm: ADAS, DMS, BSD detection
- BSD supports up to 4 channels and the detection area is adjustable
- Optional 360 bird view (4-channel splicing display)
- AHD video output option plus VGA / CVBS, with full screen and 4 / 9 channel split
- ARM Cortex A7 4-core @1.2GHz with 8Gb DDR4
- 6-channel IO alarm input, 2 x RS232 (card reader / fuel sensor) + 1 x RS485 (PTZ)
- 1 x 10M/100M adaptive network port supporting TCP/IP, FTP, DDNS
- Optional 4G / 5G (TDD-LTE / FDD-LTE) and WiFi 802.11b/g/n; optional GPS / BD positioning
- Built-in 3-axis acceleration and 3-axis gyroscope sensor
- Voice intercom interface; can connect a multi-function control panel (12V output + RS232)
- Special file system improves disk read / write efficiency for more stable recording
- Industrial design with aluminium alloy housing: firm structure and good heat dissipation
- Platform access: JT/T808-2011, JT/T808-2019, JT/T1076-2016, JT/T1078-2016
- Supports mobile App, PC client and platform software for preview and configuration
- 9-36V wide voltage input with overload / under-voltage / short-circuit / reverse protection, timed switch and delayed shutdown
- Consumption under 8W (without peripherals); working temperature -10°C to +70°C
- Housing 195 x 183 x 60 mm, net weight 1.6 kg
- Can work without an external speaker and with the inner buzzer only
- Used in mines and construction projects for long-time operation
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm whether it is a 4-channel or 8-channel version (video input 4CH / 8CH CVBS)
- Confirm the hard drive capacity (SATA maximum 4TB) and whether it needs to be shipped with the product; SD card maximum 512G
- Confirm the number of AI channels: BSD has a maximum of 4 channels, DMS/ADAS is additional, and options are calculated based on the number of channels
- Confirm if 4G/5G, GPS antenna and SIM card are required (and who provides them)
- Confirm whether you need external audible and visual alarms, internal speakers, intercom handles, and multi-function control panels
- Confirm platform connection (JT/T808, JT/T1076, JT/T1078) and server
- Confirm the number of cameras, cable length and connector type
- Confirm the power-taking method (ACC/normal power) and delayed shutdown
- Confirm whether you need English AI alarm voice (upgrade file available)
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Supply is 9–36V: red to permanent live, orange to ACC, black to ground. Never reverse the polarity.
- The hard disk model must be installed horizontally and fixedly with vibration damping to avoid long-term vibration damage to the hard disk
- The host is installed in a waterproof, shockproof and interference-proof position, away from the air outlet of the air conditioner
- Disconnect the power before inserting or removing the hard drive, SD card or SIM card.
- The AI camera is installed and calibrated according to the angle in the instruction manual (DMS is aimed at the driver, BSD is aimed at the blind spot on the side of the car), otherwise the alarm will not be accurate
- The BSD detection area is adjustable and can be adjusted according to the actual vehicle model after installation to reduce false alarms and false negatives
- Do not adjust the alarm volume in the car to 0, otherwise the driver will not be able to hear the alarm; the overspeed alarm threshold also needs to be set according to project requirements
- The AI alarm voice can be upgraded through a USB flash drive: put the upgrade file in the root directory of the FAT32 format USB flash drive, insert the front panel USB when the computer is turned on, wait 1-2 minutes for automatic upgrade and restart
- Regularly check the recording time, picture, hard disk health status and loop coverage, and back up important videos in a timely manner
