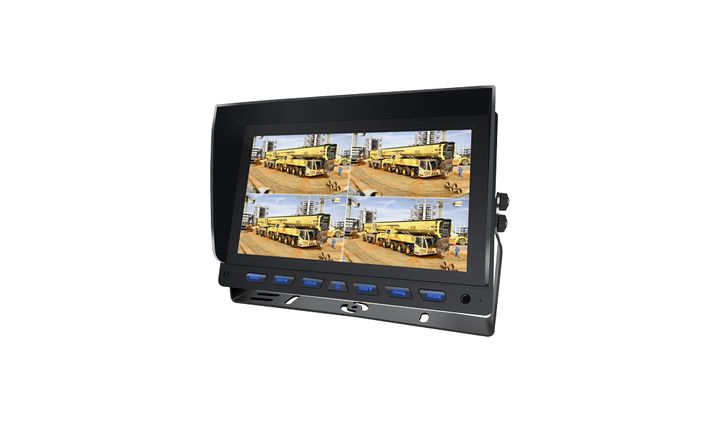

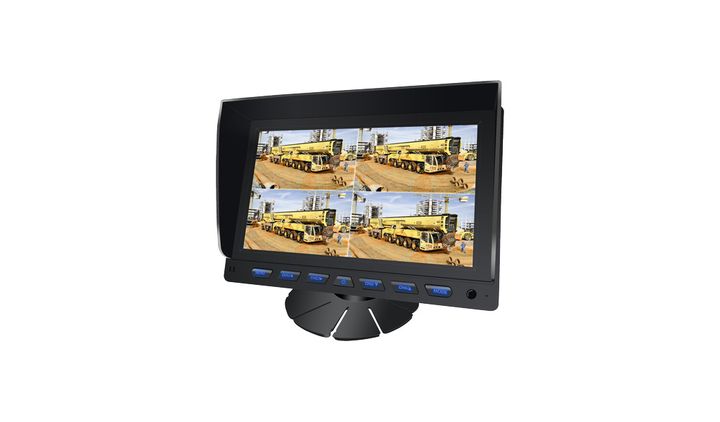

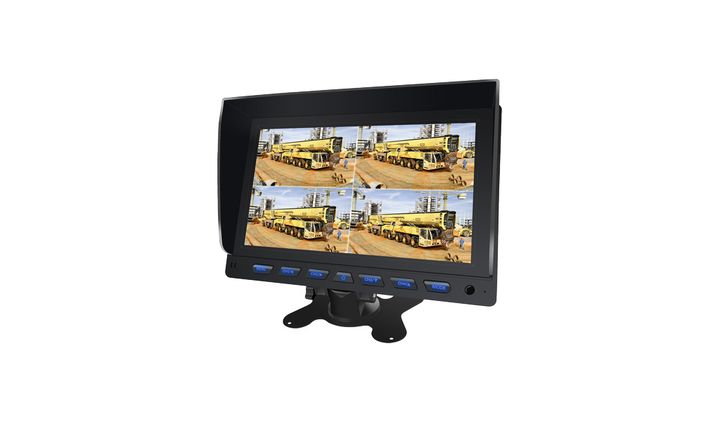

Main image and detail shots of the JPM-906Q 9.
Display Range · JPM
JPM-906Q 9

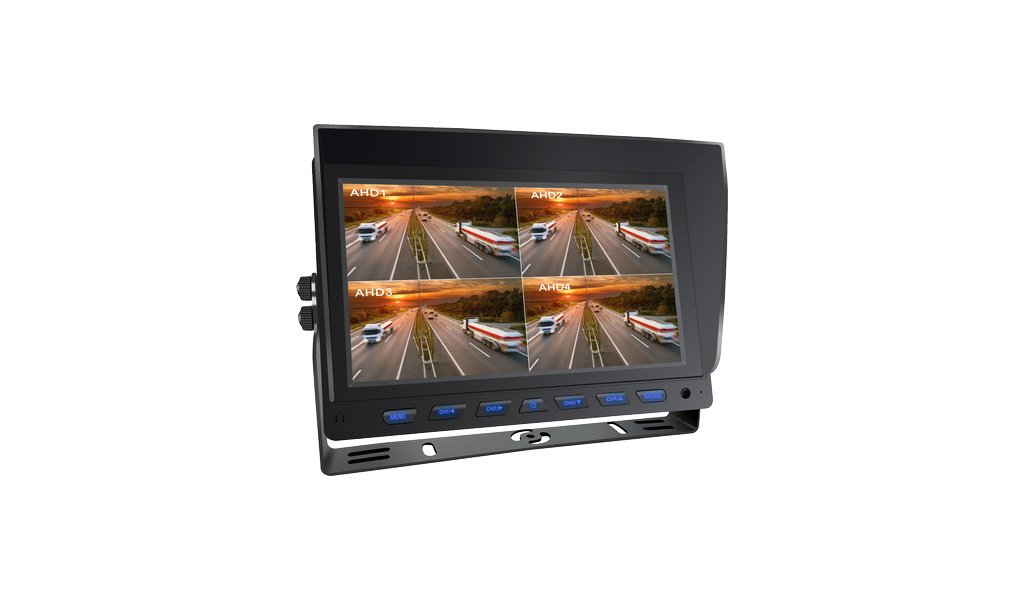

JPM-906Q 9-inch quad AHD monitor (built-in DVR/quad recording/12 split modes/support 256G)
Key features
- Built-in DVR: Four-channel video recording at the same time, saved as four independent files at the same time - one machine with "monitor + video recorder"
- Video files can be locked for protection, locked files will not be overwritten or deleted by loops (useful for dispute evidence collection)
- SD card automatically overwrites in cycles and can also be deleted manually; supports high-speed cards up to 256G
- DVR recording resolution 1280×720P, H.264 compression; with parking time-lapse recording function
- 9-inch screen, resolution 1024 × R.G.B × 600
- LED backlight, brightness 600-700 cd/㎡; built-in light sensor, automatically adjusts brightness day and night
- Viewing angle: 85° left and right, 85° up and down
- Four AHD inputs: full screen/2 pictures/3 pictures/4 pictures adjustable; supports AHD 720P/960P/1080P and CVBS mixed input
- 12 split modes: can be cut into two, three or four parts, H-shaped arrangement, each screen can be displayed independently
- PAL / NTSC auto switching
- Four-way trigger, priority order V2 > V1 > V3 > V4: Automatically switch to the corresponding screen when engaging reverse gear/turning the steering wheel
- 4 channels can independently adjust the left and right/up and down flip mirror: side view, rear view, and front view can be adjusted with one machine
- Built-in speaker + one audio input; four audio functions optional
- OSD menu: reversing scale line, mirror image/original image, reversing delay, lock button, multi-language
- Input DC12-36V (voltage above 13V is required when working with a camera)
- Output +11.5V / 3A, can directly power the camera
- Power consumption: normal operation < 5W (excluding screen and camera)
- High and low voltage protection + short circuit protection
- Working temperature -20~+70°C, storage temperature -30~+80°C
- 9-inch model body 230 × 155 × 27mm (including sunshade 74mm); headrest frame 251 × 176 × 27mm
- Comes standard with metal U-shaped bracket + detachable sun visor (906 U-shaped bracket and framed dimensional drawing are included in the catalog)
- Optional installation methods: butterfly / fan / suction cup / universal / embedded, headrest frame
- Optional connectors: RCA / 4-pin aviation connector
- Optional configuration: Six AHD inputs (trigger priority V2>V1>V3>V4>V5>V6)
- Fits: buses, trucks, trailers, construction machinery, mining, special vehicles
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm channel count: 4 channels standard, with a 6-channel version available (trigger priority V2 > V1 > V3 > V4 > V5 > V6).
- Confirm screen size: 7 inches (706Q) / 9 inches (906Q, this model) / 10.1 inches (1016Q)
- Confirm video input: AHD 720P / 960P / 1080P and CVBS, with mixed input supported.
- Confirm whether DVR recording is required, the SD card capacity (256GB maximum on a high-speed card) and whether the card ships with the unit.
- Confirm audio requirements: one audio channel standard, four channels optional.
- Confirm the trigger priority order (V2 > V1 > V3 > V4) suits how the customer works.
- Confirm voltage (DC 12–36V) and power source (ACC or permanent live). With cameras connected the supply must be above 13V.
- Confirm connector type (RCA or 4-pin aviation) and cable length.
- Confirm bracket and mounting method. U-bracket is standard; butterfly, fan, suction, swivel, flush-mount and headrest-frame options are available.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is within DC 12–36V and never reverse the polarity.
- With cameras connected the supply must be above 13V, or the cameras may be underpowered.
- It is recommended to use a high-speed SD card for recording, with a maximum size of 256G; regularly check whether the card is full or damaged
- Lock important recordings — locked files are not overwritten by loop recording.
- Connect the trigger wires to the reversing and indicator signals, then test each one after installation.
- Set the mirroring (horizontal and vertical) for each of the four channels to match how that camera is mounted.
- 12 split modes are set according to customer usage habits, and frequently used modes are set as the default screen
- Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
- Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
- Clean the screen and sun hood with a soft cloth — never alcohol or anything abrasive.
