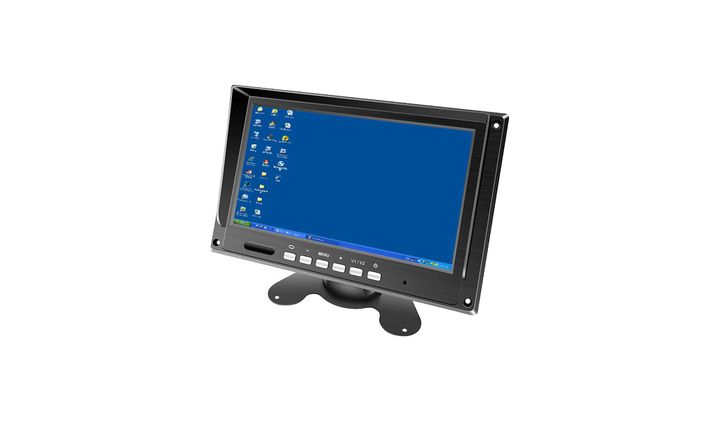

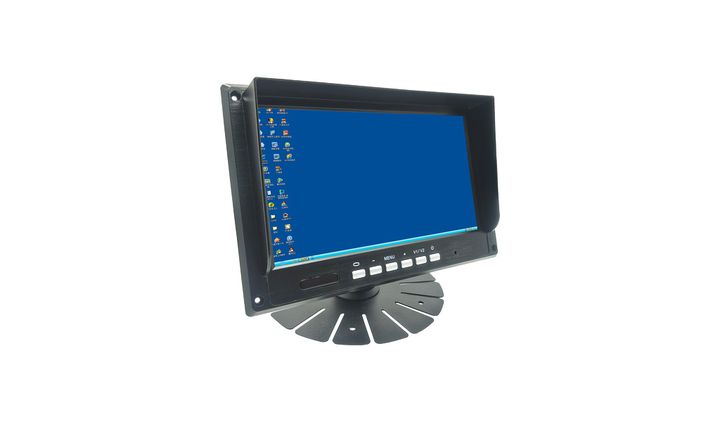

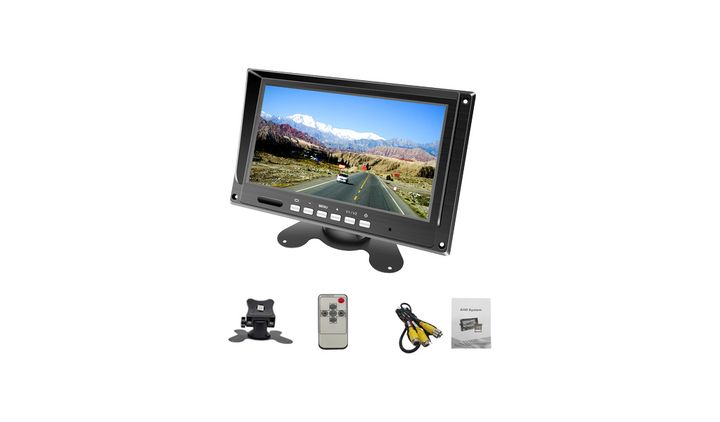

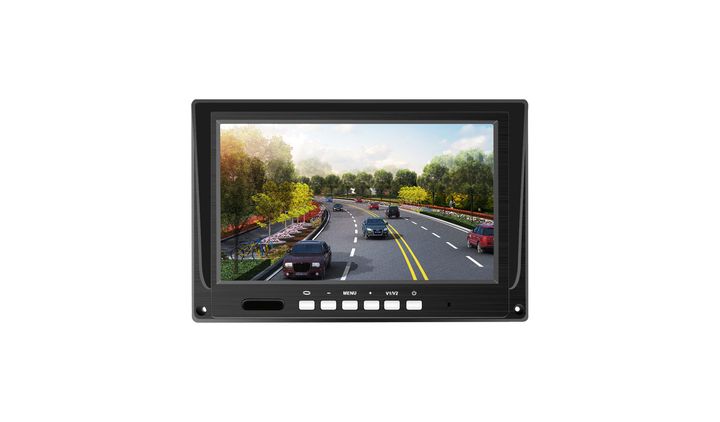

Main image and detail shots of the JPM-710.

Display Range · JPM

JPM-710

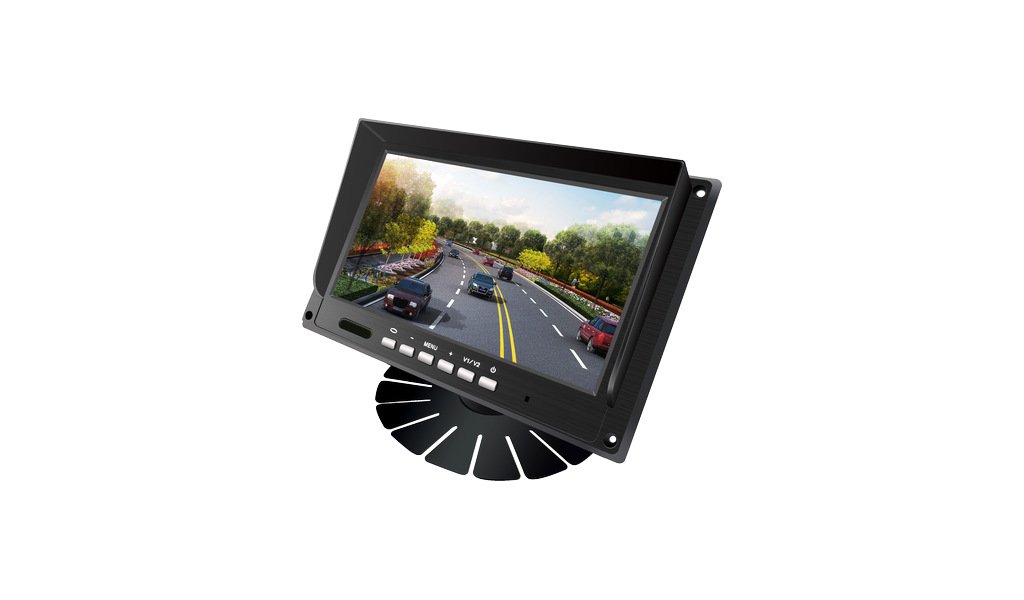

JPM-710 car display (1024×600 / 2-channel AHD input single screen / 12-24V / 220×107.2×15mm)

Key features

Resolution 1024 × R.G.B × 600, clear picture
LED backlight, brightness 500 cd/㎡: can be seen clearly even outdoors during the day
Viewing angle range: left/right 85°, up 85°, down 85°
Appearance color: black
Dimensions 220 × 107.2 × 15mm (including 33mm bracket): ultra-thin and low, can be installed on the instrument panel and takes up no space
2 AHD video inputs, single image display (two cameras can be connected, one of which is displayed on the screen)
Support 720P / 960P / 1080P, compatible with CVBS / AHD
Automatically switches to V2 when reversing, with built-in reversing reference line (reversing scale)
PAL / NTSC auto switching
Power supply 12-24V (powered by vehicle battery), common for 12V models and 24V models
Comes with 12V output, can directly power the camera
Optional connectors: RCA / 4-pin aviation connector
Optional configuration: single-head interface version (video + 12V power supply integrated), can be directly connected to MDVR
The bracket is fixed and installed on the instrument panel
Fits: trucks, trailers, buses, special-purpose vehicles, RVs

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format: 1024 × RGB × 600 with PAL / NTSC auto-switching.
Confirm voltage (12–24V) and power source (ACC or permanent live).
Confirm video input: 2-channel AHD with single-image display, supporting 720P / 960P / 1080P and CVBS / AHD.
Confirm whether a reverse trigger wire and parking reference lines are required.
Confirm connector type (RCA or 4-pin aviation), cable length and whether an extension is required.
Confirm how the unit connects to the MDVR. If it only ever works with an MDVR, a single male or female connector carrying video and 12V together is cheaper. If it is sometimes used with a camera and sometimes with an MDVR, we supply a 30 cm female-to-female aviation lead.
Confirm bracket and mounting position.
Confirm whether a complete kit with a camera is required, and which camera model.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is within 12–24V and never reverse the polarity.
Connect ACC to the ignition switch to avoid draining the battery.
Connect the trigger wire to the reversing lamp signal, then confirm the display switches to V2 when reverse is engaged.
Set the parking guide lines to match the actual mounting height so they do not mislead the driver.
Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
Clean the screen with a soft cloth — never alcohol or anything abrasive.

Vehicle Monitors

Working voltage DC 12-36V: 12V / 24V models can be connected directly without a step-down module

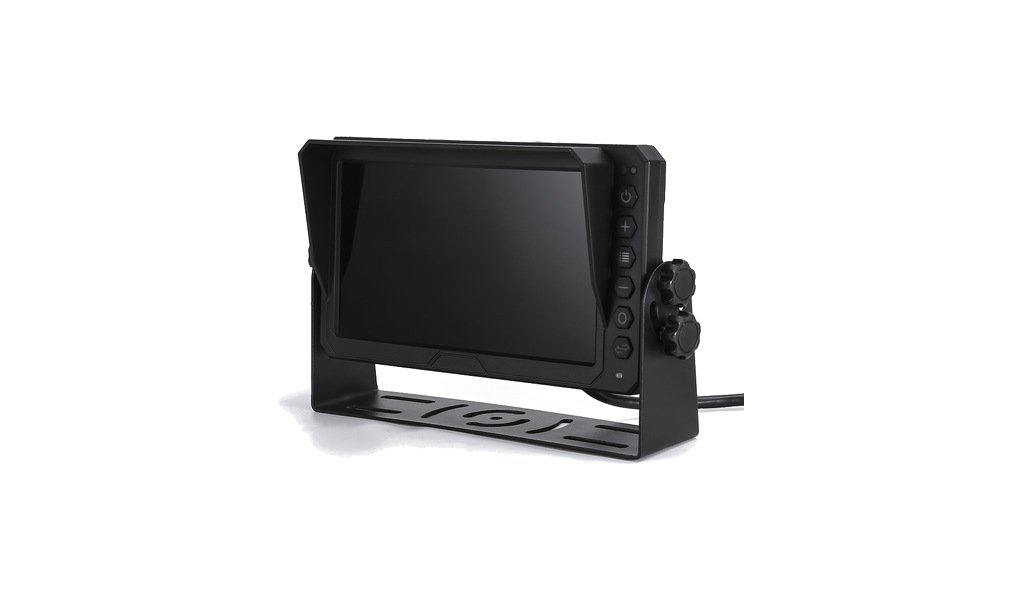

7-inch screen, resolution 1024 × R.G.B × 600, delicate picture

7-inch digital screen, 16:9 ratio, resolution 1024 × R.G.B × 600

7-inch IPS high-definition high-brightness digital screen, 1024(H)×600(V), brightness 600, brushed panel

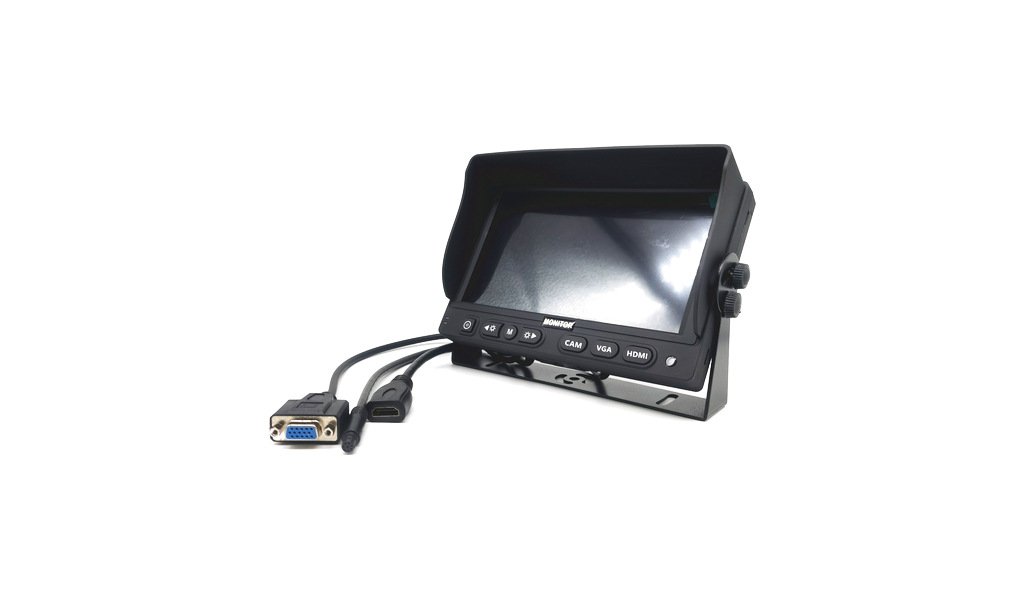

Most in-vehicle MDVR/hard disk video recorders have VGA output. This model can be directly connected to the VGA port of the MDVR

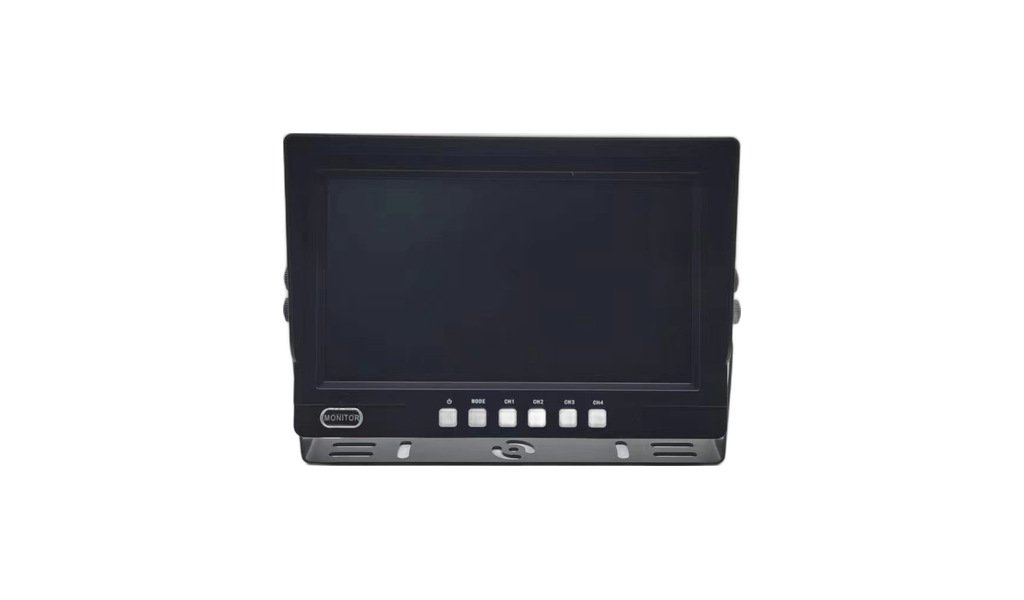

9-inch screen, resolution 1024 × R.G.B × 600, delicate picture
