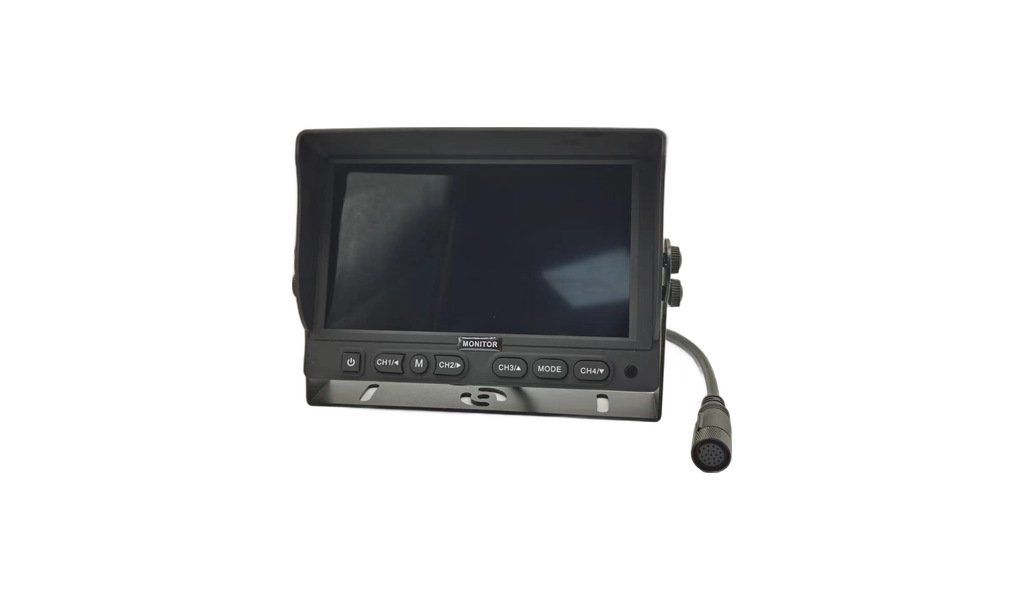

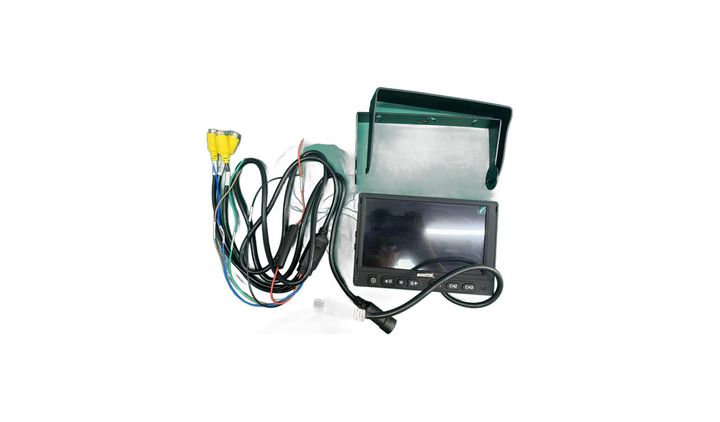

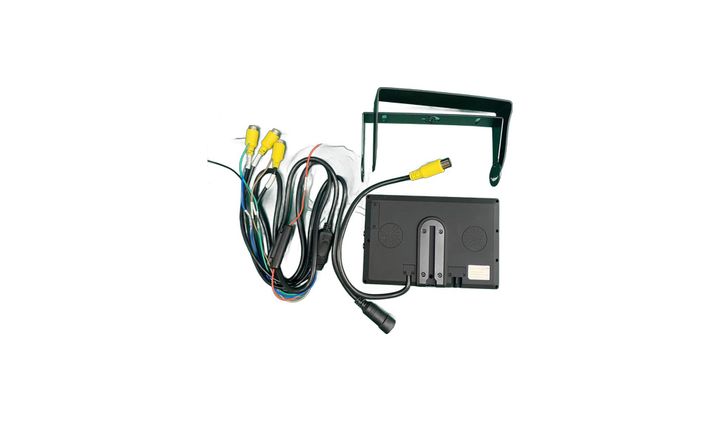

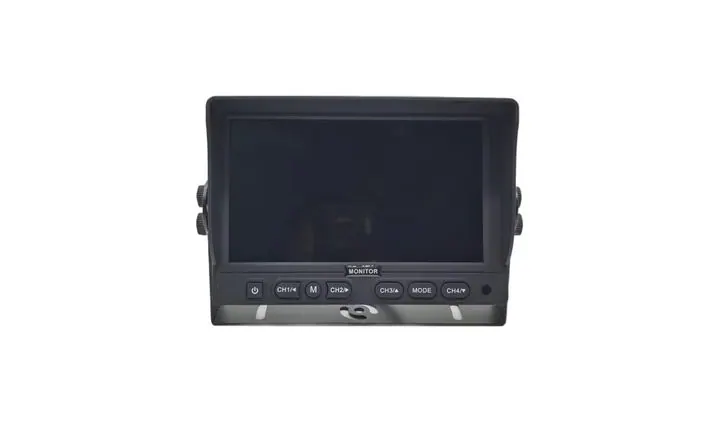

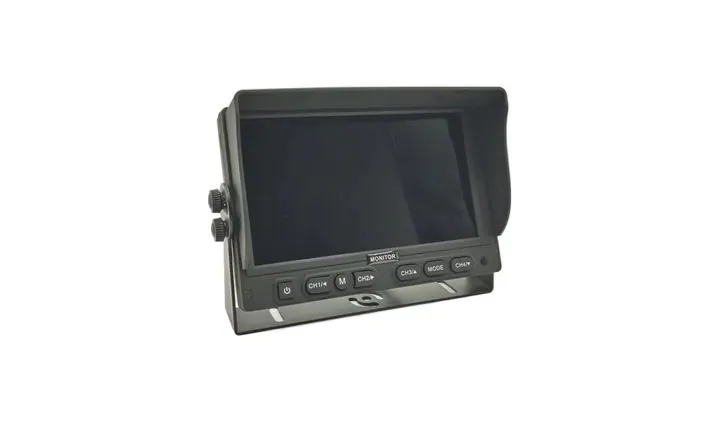

Main image and detail shots of the JPM-709.
JPM-709/712 three-way vehicle display
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 3-channel monitor with split and full screen modes
- AHD / CVBS input, separate trigger per channel
- Wide voltage for 12V / 24V vehicles
- For trucks and buses needing 3 camera views (rear + 2 sides)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm screen size, channel count (1/2/3/4) and resolution (AHD 1080P / 720P / CVBS), matched to the cameras.
- Confirm voltage range (12–36V) and power source (ACC or permanent live).
- Confirm signal inputs (AHD / CVBS / VGA / HDMI) and format (PAL / NTSC).
- Confirm cable length, connector type (4-pin aviation or RCA) and whether an extension is required.
- Confirm how the unit connects to the MDVR. If it only ever works with an MDVR, a single male or female connector is cheaper. If it is sometimes used with a camera and sometimes with an MDVR, we supply a 30 cm female-to-female aviation lead.
- Confirm function requirements: auto-switch to the reversing view, split screen, recording, touch control.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the voltage and never reverse the polarity. Connect ACC to the ignition switch so the battery is not drained.
- Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
- Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
- Clean the screen with a soft cloth — never alcohol or anything abrasive.
- Functions such as reverse priority and screen splitting must be set up and tested before delivery
