JPM-706S 7

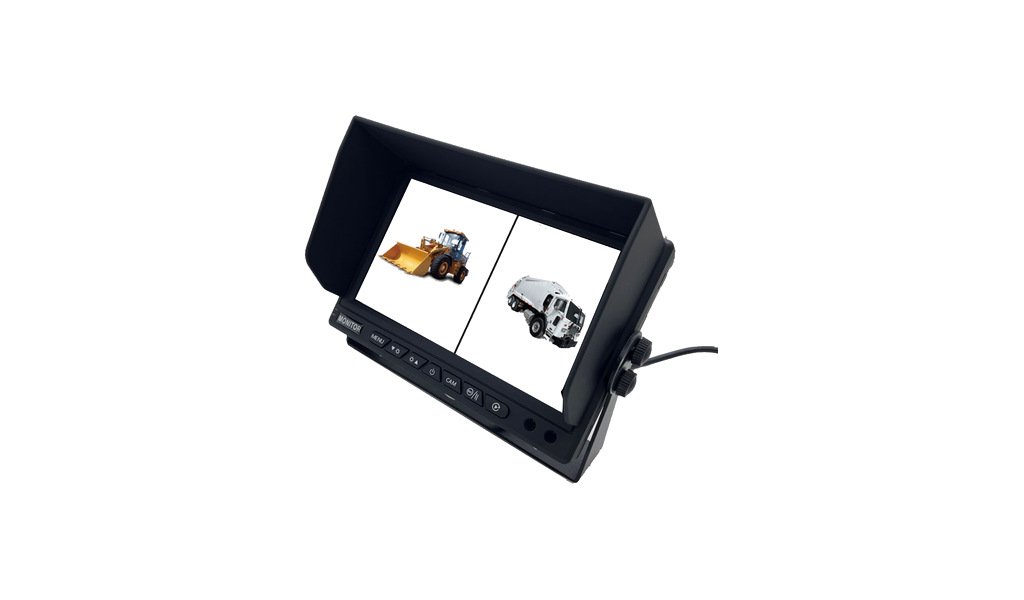

JPM-706S 7-inch dual-channel AHD display (1024×600 / 2 inputs / with video + lock button / 24-hour parking monitoring)

  • 7-inch screen, resolution 1024 × R.G.B × 600
  • 2 channels of AHD high-definition input, single-screen/two-split display switchable
  • Split one screen into two and watch two cameras at the same time: rear view + side blind spots, or blind spots on the left and right sides, solved by one machine
  • Reverse trigger: Automatically switch to reverse screen when engaging reverse gear

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPM-706S selling points

Two inputs, split viewing, recording lock and a separate 24-hour parking option.

JPM-706S is a 7-inch 1024 x RGB x 600 monitor with two mixed AHD/CVBS inputs, single/two-split/PIP views and V2 > V1 reverse priority. It accepts DC 12-36V; DVR recording, file lock and 24-hour parking are confirmed by the ordered build, not inferred from a sibling model.

JPM-706S diagram showing two AHD or CVBS camera inputs, single two-split and PIP views, and V2 reverse priority
01. Two inputs and selectable views

Two camera inputs feed selectable single, two-split or PIP views. V2 has reverse priority so the reversing camera becomes active.

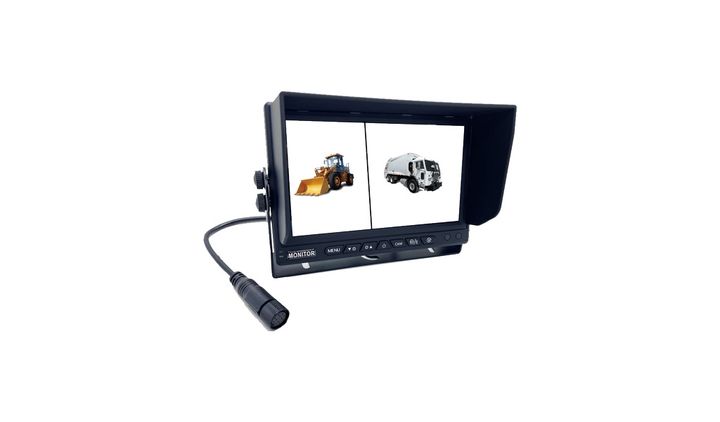

JPM-706S exact-model front, sun visor and physical keypad
02. Exact-model front and keypad

Exact JPM-706S housing, sun visor and physical controls.

JPM-706S diagram showing two live inputs, optional DVR recording, SD storage, file lock and constant-power parking option
03. Recording, lock and parking option

The DVR build records H.264 at 1280 x 720P; selected files can be locked. The 24-hour parking build requires constant power.

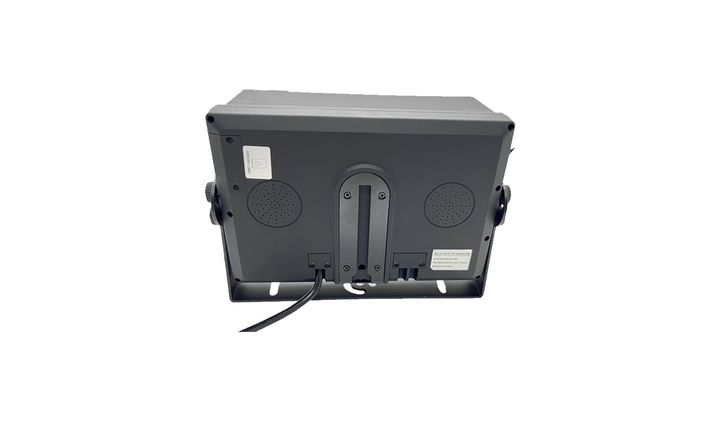

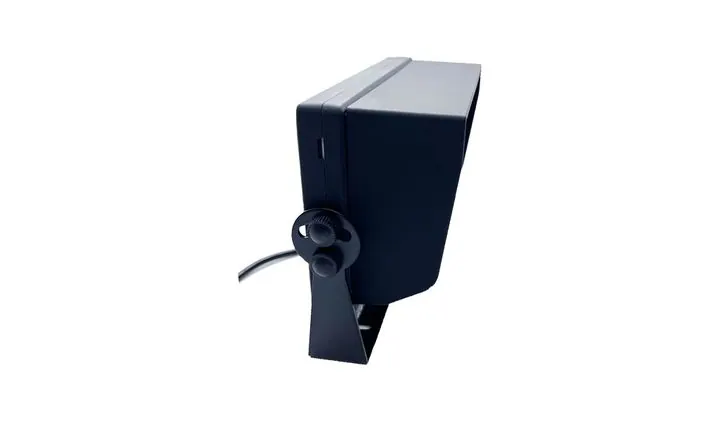

JPM-706S exact-model rear casting, mounting rail and connector lead
04. Exact-model rear housing

Rear housing, mounting rail and connector lead from the exact source folder.

01

Dual-channel split display

Silent exact-source excerpt showing two AHD inputs in split view; visual demonstration only.

02

Recording lock control

Silent exact-source excerpt showing the lock workflow; locked files remain outside loop-overwrite deletion.

03

Exact-model operation overview

Silent exact-model overview from the JPM-706S source folder; confirm the ordered recording and parking build.

JPM-706S 7 product features

  • 7-inch screen, resolution 1024 × R.G.B × 600
  • 2 channels of AHD high-definition input, single-screen/two-split display switchable
  • Split one screen into two and watch two cameras at the same time: rear view + side blind spots, or blind spots on the left and right sides, solved by one machine
  • Reverse trigger: Automatically switch to reverse screen when engaging reverse gear
  • PAL / NTSC auto switching
  • With video recording function: two channels of video can be recorded and stored (there are recording demonstration videos in the directory)
  • With lock button: Important videos can be locked with one click. After locking, they will not be overwritten or deleted by loop (useful for dispute evidence collection)
  • There is a 24-hour parking monitoring version: with constant power supply, continuous monitoring can also be done during parking
  • 706 physical keys (706KEY) operation, can be pressed even with gloves on
  • The menu language can be custom: Chinese/Russian version is available (default Chinese)
  • Support mirror/original image switching, reversing ruler line
  • Commonly used items such as brightness, contrast, volume, and language can be adjusted in the menu
  • Input DC12-36V: universal for 12V / 24V models
  • Can power the camera
  • Working temperature -20~+70°C, storage temperature -30~+80°C
  • 706 platform standard housing, equipped with metal U-shaped bracket + sunshade
  • Optional installation methods: butterfly / fan / suction cup / universal / embedded
  • Connector optional: 4-pin aviation header / RCA
  • Fits: trucks, trailers, buses, special-purpose vehicles, RVs

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm screen mode: 2 inputs, single screen/dual split
  • Confirm the camera type: AHD 720P / 960P / 1080P (whether it needs to be compatible with CVBS), it must match this machine
  • Confirm whether the recording function is required and the SD card capacity (the maximum capacity is confirmed by the factory)
  • Confirm whether you need the 24-hour parking monitoring version (normal power supply)
  • Confirm menu language (Chinese/Russian/Others, can be custom according to firmware)
  • Confirm voltage (DC 12–36V) and power source (ACC or permanent live).
  • Confirm connector type (4-pin aviation or RCA), cable length and whether an extension is required.
  • Confirm the docking method with MDVR: only work directly with MDVR → You can use a single female connector or a single male connector, which is cheaper; sometimes it connects to the camera, sometimes it connects to the MDVR → We provide a 30cm female-to-female aviation cable (this machine has video recording, confirm whether you need to connect an external MDVR)
  • Confirm the bracket and installation method (U-shaped standard; butterfly / fan / suction cup / universal / embedded optional)
  • Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Before wiring, confirm the supply is within DC 12–36V and never reverse the polarity.
  • The connection method of ACC/normal power determines whether 24-hour parking monitoring is enabled: 24-hour recording will only be possible if the power is connected to normal power. Be careful not to drain the battery
  • Remember to press the lock button to lock important videos. The locked files will not be overwritten or deleted by loop
  • The trigger line is connected to the reversing light signal; after installation, test whether the reverse gear can be automatically switched
  • The two divided images are adjusted to the mirror image/original image according to the installation direction of each camera
  • Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
  • Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
  • Clean the screen with a soft cloth — never alcohol or anything abrasive.
