JPM-706Q 7-inch four-channel AHD vehicle monitor (4 AHD inputs / mixed CVBS / V2 reverse priority)

  • The monitor comes with a DVR: four channels of video can be recorded at the same time and saved into four independent files at the same time - one machine can be used as a "monitor + video recorder"
  • Video files can be locked for protection: locked files will not be overwritten or deleted by loops (useful for dispute evidence collection)
  • The SD card is automatically cycled and overwritten, and can also be deleted manually; it supports a maximum of 256G, and it is recommended to use a 10-speed high-speed card
  • DVR recording resolution 1280×720P, H.264 compression mode

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPM-706Q selling points

Four cameras. One compact control screen.

The JPM-706Q is a 7-inch four-input monitor. AHD 720P, 960P, 1080P and CVBS sources can be mixed, each channel can be mirrored independently, and V2 has first priority when a trigger activates.

JPM-706Q technical selling-point illustration showing documented 7-inch monitor controls and specifications
01. Input and control map

The JPM-706Q is a 7-inch four-input monitor. AHD 720P, 960P, 1080P and CVBS sources can be mixed, each channel can be mirrored independently, and V2 has first priority when a trigger activates. 4 AHD inputs. Trigger priority: V2 > V1 > V3 > V4.

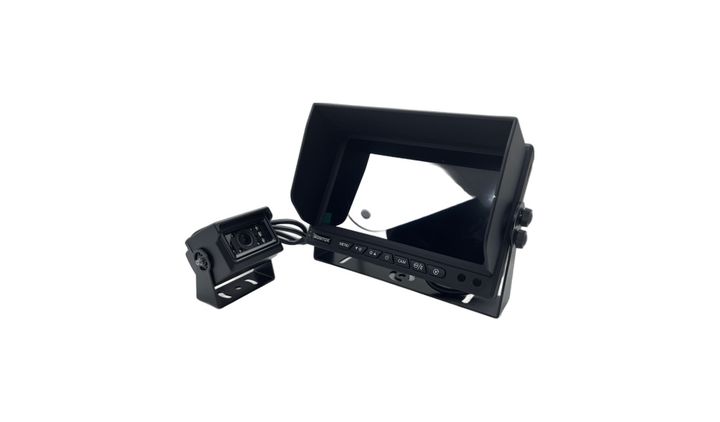

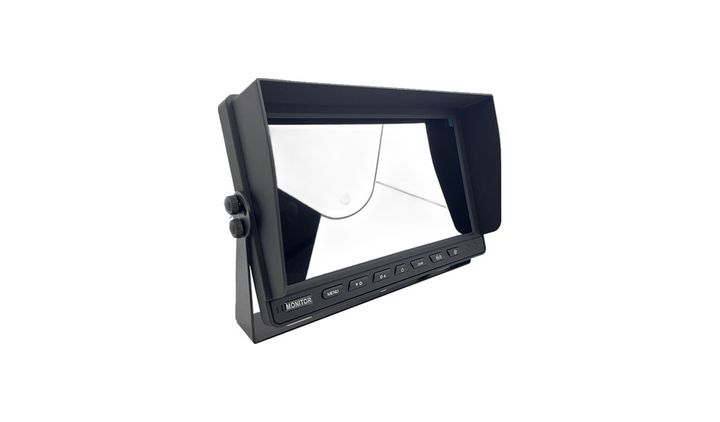

JPM-706Q exact-model source photograph showing 01. exact-model product assembly and visible construction

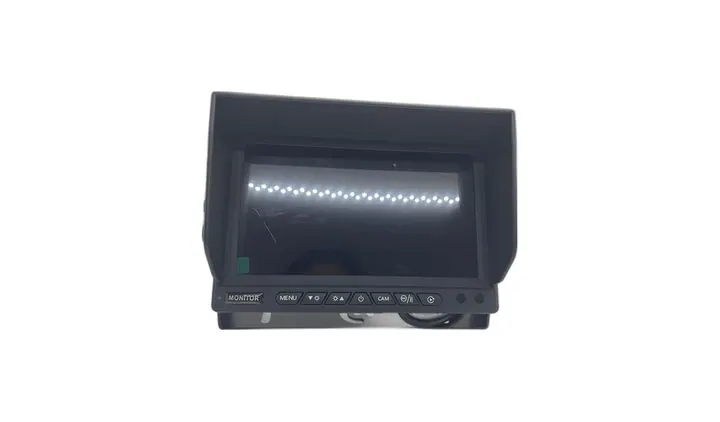

01. Exact-model product assembly

JPM-706Q 7-inch housing, controls, bracket and cable lead.

JPM-706Q technical selling-point illustration showing documented 7-inch monitor controls and specifications
02. Recording or protection map

When the ordered build includes the DVR, four channels can be stored as four independent H.264 files. Manual file locking protects selected clips from loop overwrite; the monitor accepts DC 12-36V and supplies camera power from an 11.5V / 3A output.

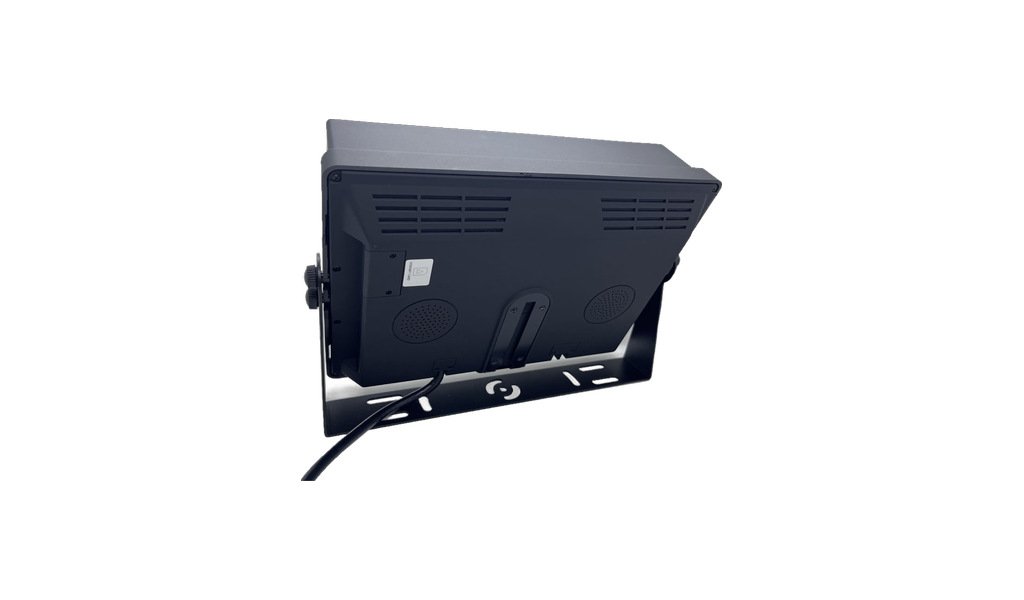

JPM-706Q exact-model source photograph showing 02. package and interface set and visible construction
02. Package and interface set

Exact-model monitor, sun visor, remote, power lead and camera breakout wiring.

01

Touch-control demonstration

Visual demonstration of the touch interface from the exact four-channel source set.

02

Four-channel installation overview

Visual installation overview; not a calibrated electrical or environmental test.

JPM-706Q 7 product features

  • The monitor comes with a DVR: four channels of video can be recorded at the same time and saved into four independent files at the same time - one machine can be used as a "monitor + video recorder"
  • Video files can be locked for protection: locked files will not be overwritten or deleted by loops (useful for dispute evidence collection)
  • The SD card is automatically cycled and overwritten, and can also be deleted manually; it supports a maximum of 256G, and it is recommended to use a 10-speed high-speed card
  • DVR recording resolution 1280×720P, H.264 compression mode
  • It has parking time-lapse video function: it can also record in time-lapse mode during parking
  • 7-inch screen, resolution 1024 × R.G.B × 600
  • LED backlight, brightness 600-700 cd/㎡: can be seen clearly even outdoors during the day
  • Viewing angle range: up/down 85°, left/right 85°
  • 4-channel AHD video input, 1/2/3/4 picture display adjustable
  • Supports AHD 720P / 960P / 1080P and CVBS multiple video mixed inputs (different cameras can be mixed together)
  • Quad-split and multiple split modes, each screen can be adjusted individually
  • Light sensing function: automatically adjusts screen brightness day and night
  • PAL / NTSC auto switching
  • Four-way trigger, priority order V2 > V1 > V3 > V4: Automatically switch to the corresponding screen when engaging reverse gear/turning the steering wheel
  • 4 channels can independently adjust the left and right/up and down flip mirror: side view, rear view, and front view can be adjusted with one machine
  • Built-in speaker + one audio input (V1)
  • Four audio inputs optional (all four channels have sound)
  • Reverse scale line, mirror image/original image, reversing delay setting, multi-language, etc
  • After the menu is set up, test it one by one before delivery
  • Input voltage DC12-36V (when equipped with a camera, the working voltage is required to be above 13V)
  • Output 11.5V/3A, can directly power the camera
  • High and low voltage protection + reverse phase protection (positive and negative poles will not burn if connected reversely)
  • Anti-shock pulse 60V/3A
  • Working temperature -20~+70°C, storage temperature -30~+80°C
  • Black rubber paint casing
  • Standard configuration: metal U-shaped bracket + removable sun visor
  • Optional installation methods: butterfly / fan / suction cup / universal / embedded
  • Connector optional: 4-pin aviation header / RCA
  • Dimensions: Body 180 × 121 × 26mm (including sunshade 75mm); frame size 203 × 143 × 30mm

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm screen mode: 4 inputs, 1/2/3/4 split and multiple sub-modes adjustable
  • Confirm the camera type: AHD 720P / 960P / 1080P / CVBS (supports mixed input), which must match this machine
  • Confirm the voltage (DC12-36V) and power supply method (ACC / normal power); when using a camera, the working voltage must be above 13V
  • Confirm audio requirements: One audio input is standard, four audio inputs are optional
  • Confirm whether the trigger priority sequence (V2 > V1 > V3 > V4) is in line with customer usage habits
  • Confirm the recording requirements: SD card capacity (maximum 256G, 10-speed high-speed card recommended), whether parking time-lapse recording is required
  • Confirm the docking method with MDVR: only work directly with MDVR → You can use a single female or single male connector, which is cheaper; sometimes it connects to the camera, sometimes it connects to the MDVR → We provide a 30cm female-to-female aviation cable (this machine has a built-in DVR, confirm whether you need to connect an external MDVR)
  • Confirm the bracket and installation method (U-shaped standard; butterfly / fan / suction cup / universal / embedded optional)
  • Confirm the connector type (4-pin aviation connector/RCA) and cable length
  • Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Before wiring, make sure the voltage is within the range of DC12-36V. Do not connect the positive and negative poles reversely (there is reverse phase protection, but you still need to connect them with the correct polarity)
  • With cameras connected the supply must be above 13V, or the cameras may be underpowered.
  • The SD card used for recording is recommended to be a 10-speed high-speed card, with a maximum size of 256G; regularly check whether the card is full or damaged
  • Lock important recordings — locked files are not overwritten by loop recording.
  • Connect the trigger wires to the reversing and indicator signals, then test each one after installation.
  • Set the mirroring (horizontal and vertical) for each of the four channels to match how that camera is mounted.
  • Mount the monitor where it does not block the driver's view, and fix the bracket securely so vibration cannot loosen it.
  • Secure the cable clear of hot surfaces and sharp edges, and tighten the connector.
  • Clean the screen and sun hood with a soft cloth — never alcohol or anything abrasive.
