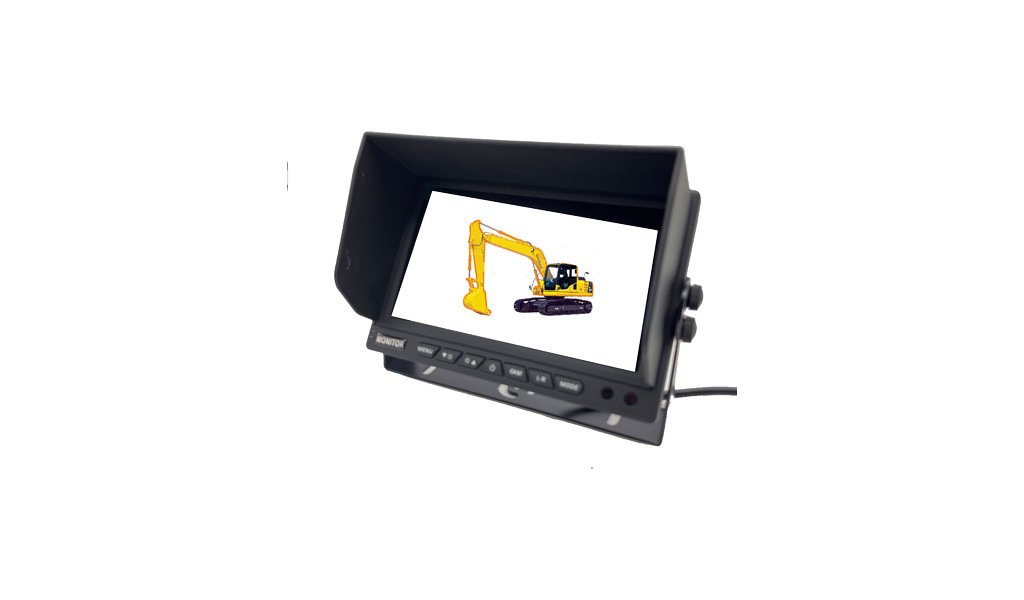

JPM-706 7-inch single-channel vehicle monitor (CVBS / AHD / menu mirror / light sensor)

7-inch single-channel vehicle monitor for truck, trailer, bus and engineering-vehicle applications, with CVBS/AHD input, menu normal-mirror image, automatic light sensing and a reverse trigger.

  • 7-inch vehicle monitor with a single-channel picture area
  • One video input supports CVBS or AHD sources; confirm the format at order
  • The menu switches the displayed image between normal and mirror modes
  • The 706AHD version supports normal / mirror selection directly in the menu

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPM-706 7 selling points

One input, menu-selected image direction and practical light control.

These exact-model diagrams explain the approved single-channel CVBS/AHD input, menu normal/mirror image, automatic light sensing and order-specific connection path. The source-folder hardware view is visual construction evidence only; no chipset, waterproof, recording or performance value is inferred from it.

JPM-706 single-channel diagram showing one CVBS or AHD camera input, one display image and menu-selected normal or mirror mode
01. Single input and mirror mode

One video input supports CVBS or AHD; the menu switches the single displayed image between normal and mirror modes.

JPM-706 diagram showing automatic light sensing, menu brightness and contrast, seven languages and reverse guide-line control
02. Light sensing and menu control

The light sensor adjusts screen brightness automatically; brightness, contrast, image mode, guide lines and language remain menu-controlled.

JPM-706 connection diagram showing 12V or 24V vehicle variants, reverse trigger, RCA or four-pin aviation connector and bracket mounting
03. Order-specific connection path

Confirm the 12V or 24V variant, RCA or 4-pin aviation connector, cable and pin-out, reverse input and bracket position at order.

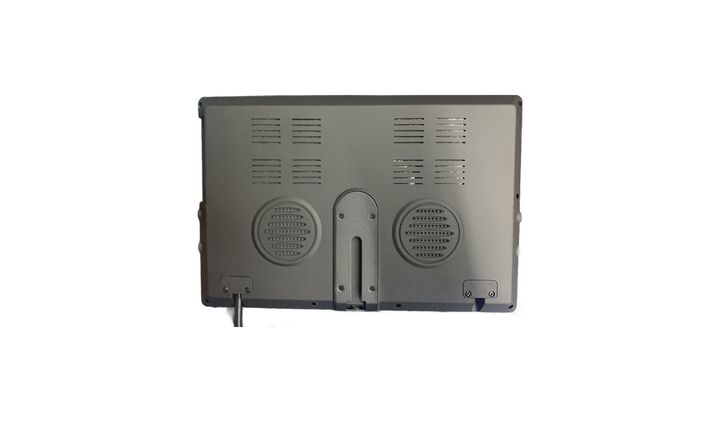

Exact-model JPM-706 source photograph showing rear housing and board-side hardware for visual construction review
04. Exact-model hardware view

Exact-model source photograph documents visible rear-housing and board-side hardware. It does not establish an IC, protection or performance value.

01

Hardware and connector handling

Silent 15-second excerpt from the exact JPM-706 source folder; visual construction evidence only.

02

Construction comparison excerpt

Silent second excerpt from the same exact-model source folder; not a calibrated test or certification.

JPM-706 7 product features

  • 7-inch vehicle monitor with a single-channel picture area
  • One video input supports CVBS or AHD sources; confirm the format at order
  • The menu switches the displayed image between normal and mirror modes
  • The 706AHD version supports normal / mirror selection directly in the menu
  • Rear, side and front mounting directions can be corrected without rewiring
  • A light sensor automatically adjusts screen brightness to the ambient light
  • Brightness and contrast remain adjustable through the menu
  • A reverse-gear trigger automatically switches to the reversing view
  • The reverse guide line can be switched on or off through the menu
  • The menu includes image mode, guide line, brightness, contrast and language
  • Seven selectable menu languages are available; confirm the default language
  • Select the 12V or 24V vehicle variant for the installation
  • RCA or 4-pin aviation connector choices are confirmed with the order
  • The monitor is bracket-mounted for dashboard or sun-visor positioning
  • Truck, trailer, bus, engineering-vehicle and RV applications are supported
  • A user manual with wiring and menu-setting instructions is supplied

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm exact JPM-706; do not substitute a different channel, recording or CarPlay version
  • Confirm whether the camera is CVBS or AHD and identify the AHD resolution tier
  • Confirm the 12V or 24V monitor variant and ACC or permanent supply method
  • Confirm reverse-trigger and menu-controlled guide-line requirements
  • Confirm RCA or 4-pin aviation connector, cable length and any extension
  • Confirm the camera or MDVR interface and required male or female termination
  • Confirm bracket form and dashboard or sun-visor installation position
  • Confirm required menu language, camera kit, packaging and quantity

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Confirm rated voltage and polarity before power is applied; never use an overvoltage supply
  • Connect ACC to ignition where used to avoid battery drain
  • Connect the reverse trigger to the reversing-lamp signal and test the switch
  • Adjust guide lines for the installed camera and display height
  • Set normal or mirror image for the rear, side or front mounting direction
  • Mount clear of the driver sight line and secure the bracket against vibration
  • Route cables away from heat, sharp edges and moving parts and tighten the connector
  • Clean the screen with a soft cloth only; do not use alcohol or abrasive cleaners
