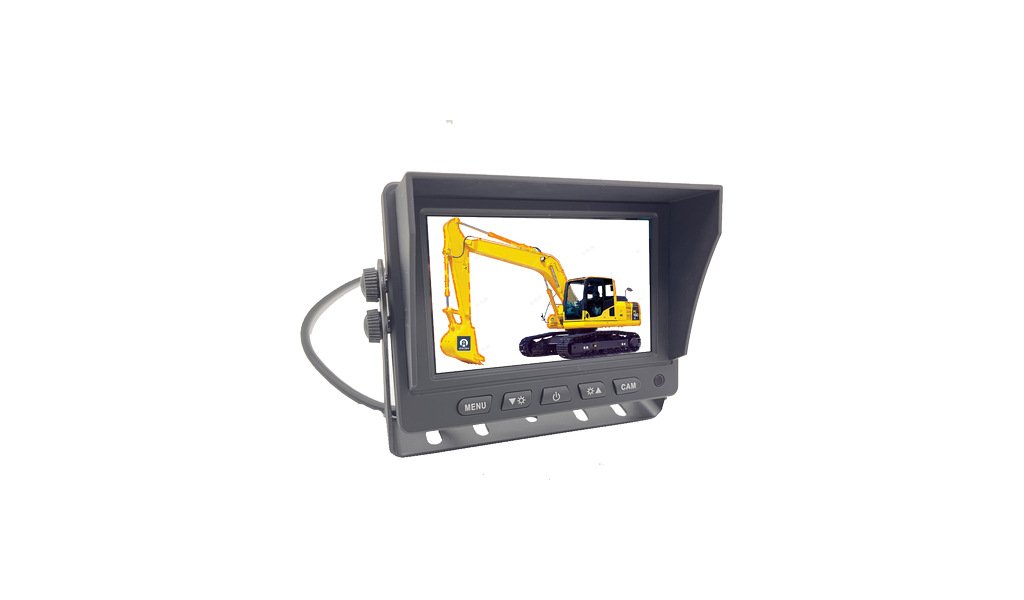

JPM-506 5-inch vehicle monitor (800 x RGB x 480 / standard 2-video + 2-audio + 1-trigger / optional 3-video + 3-trigger / 9-36V DC)

A 5-inch 16:9 single-image vehicle monitor. The exact JPM-506 parameter sheet defines two video inputs, two audio inputs and one reverse trigger as standard, with an optional three-video and three-trigger build, 9-36V DC input, 12V camera supply output and PAL / NTSC automatic operation.

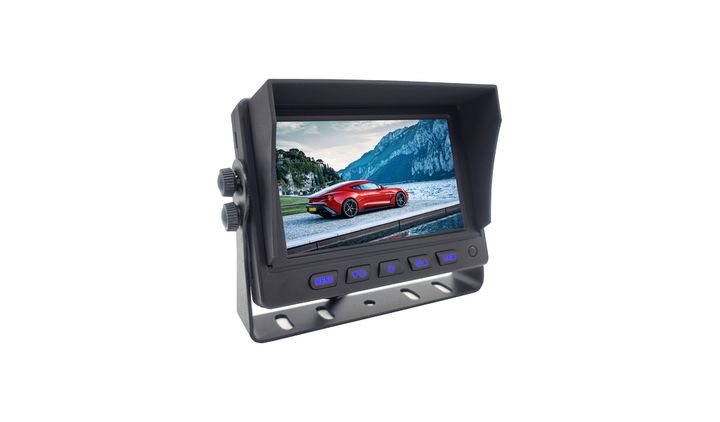

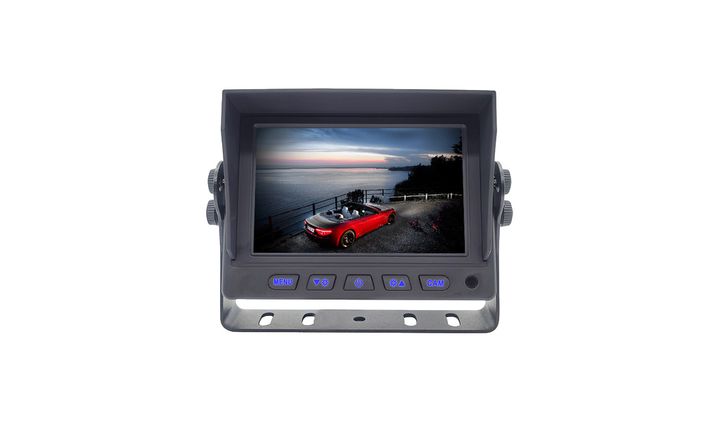

  • 5-inch 16:9 high-brightness digital display with LED backlight
  • Resolution 800 x RGB x 480; stated brightness 500 cd/m2
  • Viewing angle: 70 degrees left and right, 50 degrees up and 70 degrees down
  • Black rubber-coat housing, U-type bracket and detachable sunshade

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPM-506 selling points

Two video inputs as standard, three as an option, on one 5-inch screen.

These exact-model diagrams explain the standard and optional input builds, the confirmed display angles, and the 9-36V vehicle power path. The two clips below are short silent excerpts from the exact JPM-506 source folder; the customer-logo clip is deliberately excluded.

JPM-506 input diagram showing two video inputs as standard, three as optional, and a single 5-inch picture area
01. Standard and optional input builds

The standard JPM-506 provides two video inputs, two audio inputs and one reverse trigger; the optional build provides three video inputs, two audio inputs and three reverse triggers.

JPM-506 display diagram showing 5-inch 16:9 size, 800 by RGB by 480 resolution, LED 500 cd/m2 and viewing angles
02. Display and viewing angle

5-inch 16:9 display, 800 x RGB x 480 resolution, LED 500 cd/m2 and viewing angles of 70 degrees left/right, 50 degrees up and 70 degrees down.

JPM-506 power diagram showing 9-36V DC input, 12V output, 5W consumption, temperature range and 140 by 102 by 26 mm body
03. Vehicle power and mounting

9-36V DC input and 12V output, 5W consumption, 140 x 102 x 26(56) mm envelope and -20 to +70 C working range.

01

Exact JPM-506 source clip 1

Short silent H.264 excerpt from the exact JPM-506 source folder; original audio is not published.

02

Exact JPM-506 source clip 2

Short silent H.264 excerpt from the exact JPM-506 source folder; original audio is not published.

JPM-506 product features

  • 5-inch 16:9 high-brightness digital display with LED backlight
  • Resolution 800 x RGB x 480; stated brightness 500 cd/m2
  • Viewing angle: 70 degrees left and right, 50 degrees up and 70 degrees down
  • Black rubber-coat housing, U-type bracket and detachable sunshade
  • Dimensions 140 x 102 x 26 mm; the source records 26(56) mm
  • Standard build: 2 video inputs, 2 audio inputs and 1 reverse trigger
  • Optional build: 3 video inputs, 2 audio inputs and 3 reverse triggers
  • Single-image display: the selected source uses the 5-inch picture area
  • Reverse delay setting and parking guide lines from the linked SD-506 source sheet
  • PAL and NTSC automatic compatibility
  • AHD and CVBS source compatibility from the 506 source specification; confirm the ordered signal chain
  • OSD controls for colour, brightness, contrast, volume, language, mirror and reverse settings
  • Multi-language menu: English, German, French, Spanish, Portuguese, Italian, Dutch and Simplified Chinese
  • 9-36V DC input and 12V output for the camera supply
  • 5W power consumption
  • Working temperature -20 to +70 C; storage temperature -30 to +80 C
  • Light-sensor automatic brightness adjustment optional
  • RCA or 4-pin connector optional

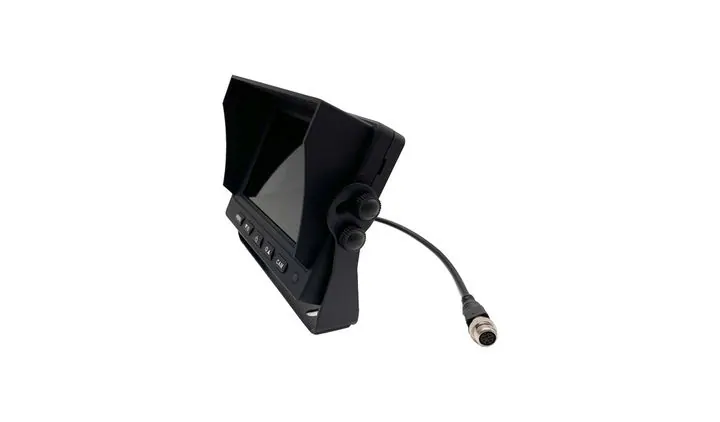

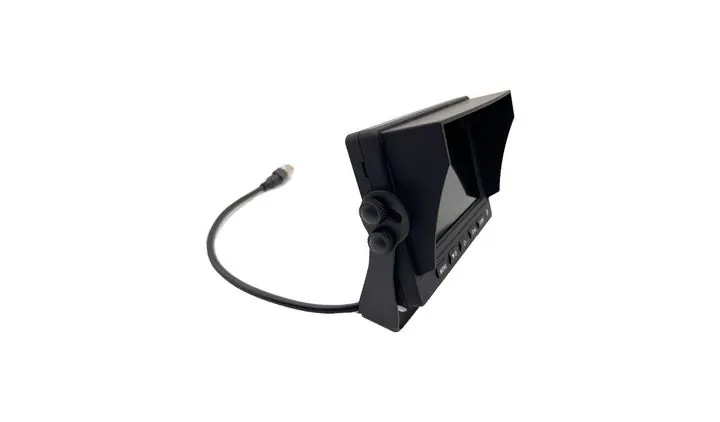

  • Standard accessories: remote control, power cable, user manual and U-type bracket
  • Applications: truck, trailer, bus, engineering vehicle, RV and agricultural machinery

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm exact JPM-506 and whether the standard 2-video or optional 3-video build is required
  • Confirm the reverse-trigger count: one standard or three optional
  • Confirm whether two audio inputs are required for the selected build
  • Confirm AHD or CVBS cameras and PAL or NTSC before ordering
  • Confirm 9-36V DC vehicle power and ACC or permanent-live wiring
  • Confirm RCA or 4-pin connector, cable length and pin-out for the camera or MDVR connection
  • Confirm whether light-sensor automatic brightness adjustment is required
  • Confirm bracket, detachable sunshade, accessories and packaging
  • Confirm quantity, neutral or colour box, printing and approved brand marking

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Check supply voltage and polarity before applying power; connect ACC to ignition where used
  • Connect the reverse trigger to the intended reverse-lamp signal and test the switch after installation
  • Set reverse delay and parking guide lines for the installed camera position before delivery
  • Mount the monitor clear of the driver sight line and secure the U-type bracket against vibration
  • Route input, trigger and power cables away from hot surfaces, sharp edges and moving parts
  • Clean the screen and sunshade with a soft cloth only; do not use alcohol or abrasive cleaners
