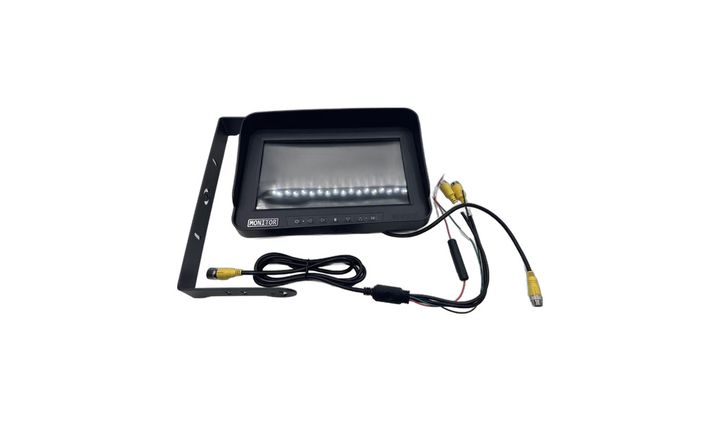

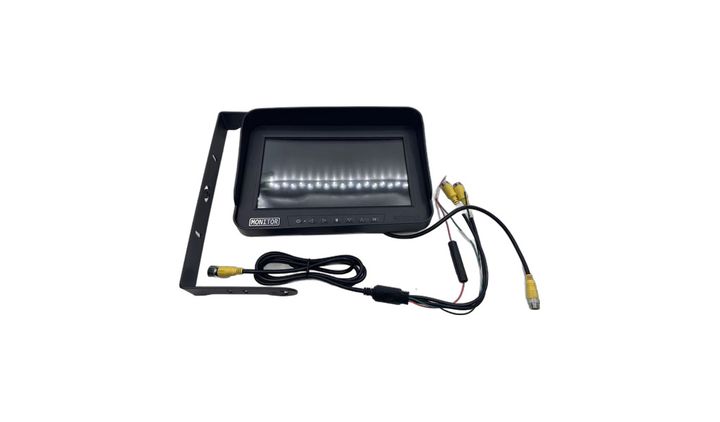

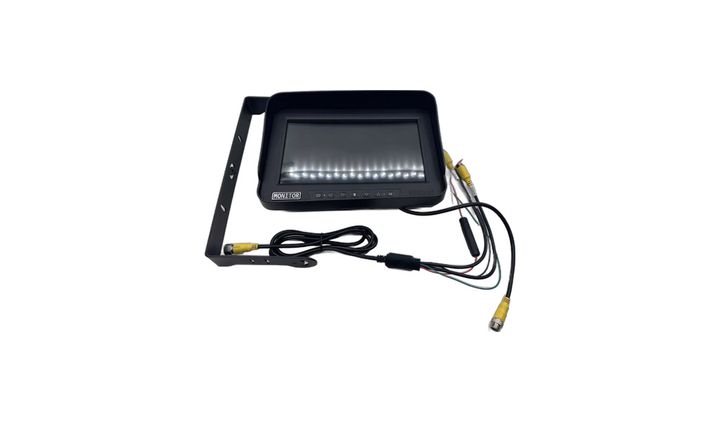

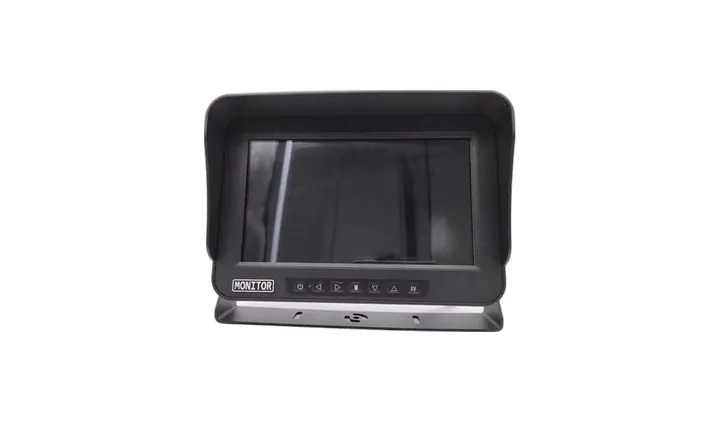

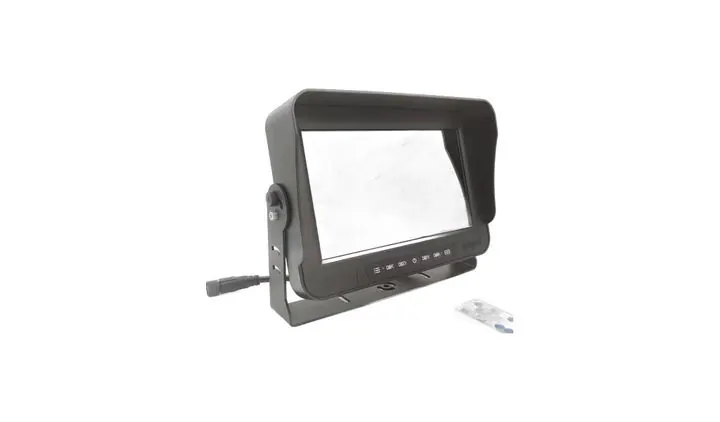

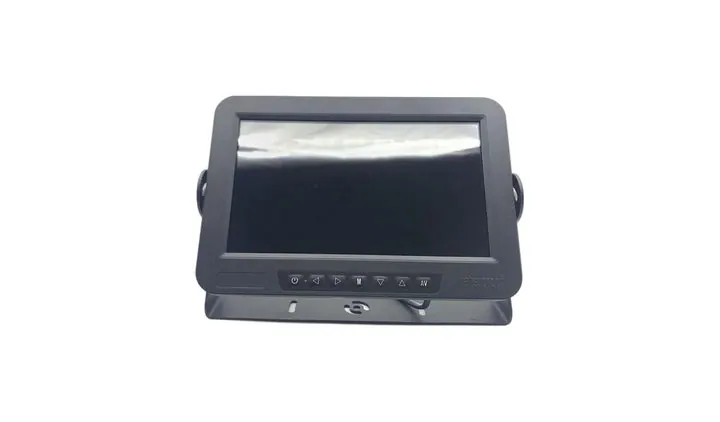

Main image and detail shots of the JPM-1018W.
Display Range · JPM
JPM-1018W

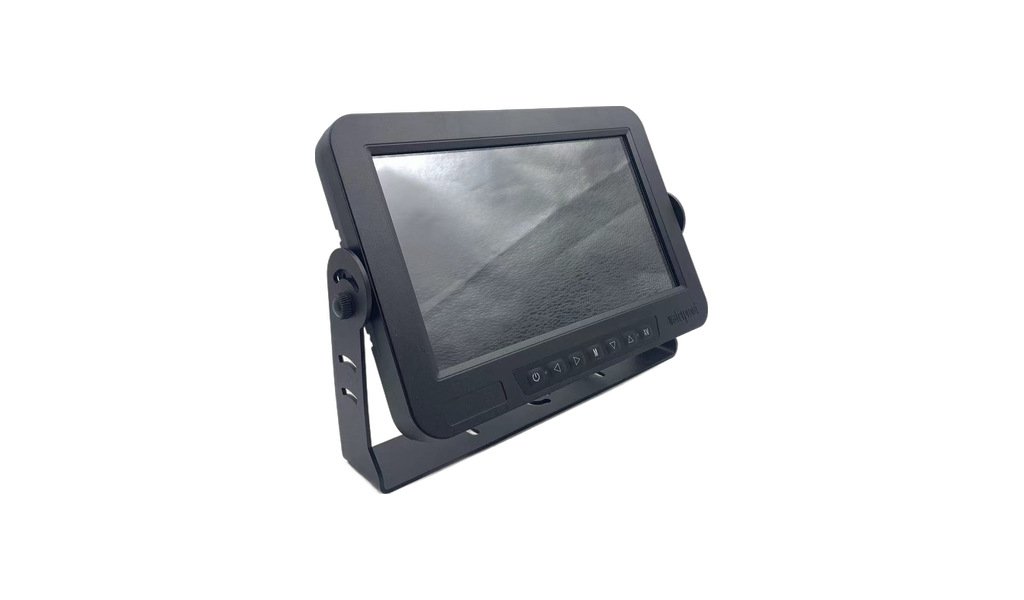

JPM-1018W / JPM-1018AW 10.1-inch IP69K all-metal waterproof monitor (1/2/4-channel AHD / 12-36V / shock-resistant
JPM-1018W / JPM-1018AW 10.1-inch IP69K all-metal waterproof monitor (1/2/4-channel AHD / 12-36V / shock-resistant 5.9G)
Key features
- IP69K waterproof (ISO 20653 / IEC 60529): tested under high temperature and high pressure water spray (80±5°C, 8000-10000 kPa, 14-16 L/min) and dustproof (IP6X)
- Full metal housing: die-cast metal body, thick and strong, shock-resistant 5.9G, suitable for trucks and construction machinery with large vibrations
- The high-pressure water gun can be used directly to flush, rainy days, mud, and mining dust will not affect it. It is suitable for fleets with high-frequency washing in car wash rooms

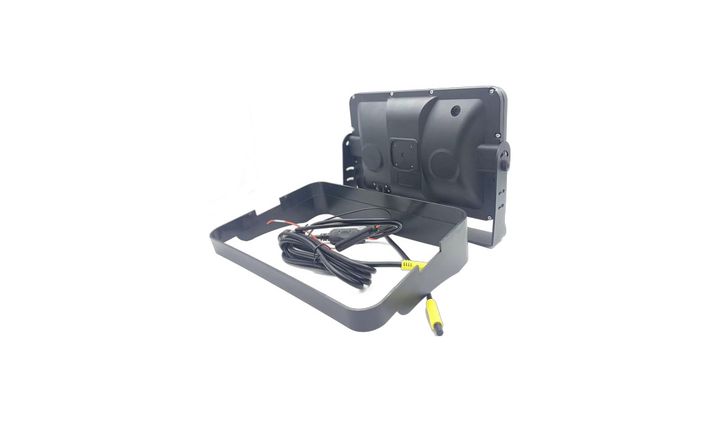

- Removable sunshade + metal U-shaped bracket, visible even under strong light from the top
- 1-inch high-definition digital screen, resolution 1024 × R.G.B × 600
- LED backlight, brightness 500-650 cd/㎡; Built-in light sensor, automatic brightness adjustment day and night
- Viewing angle: 85° left and right, 85° up and down
- 1 / 2 / 4 AHD inputs (optional on the same platform), compatible with CVBS
- Support AHD 1080P@30/25fps, 720P@30/25fps
- Display mode: single screen, dual screen, triple screen, quad screen, three-screen, Y split, picture-in-picture (PIP)
- 4-way trigger, priority order V2 > V1 > V3 > V4: Automatically switch to the corresponding camera when engaging reverse gear/turning the steering wheel
- Format NTSC & PAL automatic
- OSD menu: brightness, contrast, color, volume, language (English/Chinese/Spanish)
- Power supply: car battery 12-36V, output 12V (can power the camera)
- Power consumption 5.5W
- Working temperature -20~+70°C, storage temperature -30~+80°C
- Waterproof rating IP69K (ISO 20653); shock resistant 5.9G
- 1 inch model (1018) size 276 × 189 × 50 (94) mm
- 7-inch model (718W) size 188 × 127.2 × 34 (79) mm
- Standard configuration: full metal housing + metal U-shaped bracket + detachable sunshade + remote control + power cord / camera cable + instruction manual
- Optional connectors: RCA / 4-pin aviation connector
- Optional brackets: U-shaped, universal ball arm, instrument console bracket; three-part screen / Y split / HDMI / VGA version can be made as needed
- Fits: trucks, trailers, construction machinery, mining and quarrying, special vehicles
- JPM-1018W (10.1 inches)/JPM-718W (7 inches): 1 / 2 / 4 channels
- Optional DVR recording version and touch button version (1018SW / 1018QW / 718SW / 718QW)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm size: 10.1 inches (1018W, this model) or 7 inches (718W)
- Confirm channel count: 1, 2 or 4 channels, all on the same platform.
- Confirm whether you need the video recording (DVR) version or whether you need the touch button version
- Confirm video input type: AHD 720P / 960P / 1080P and CVBS, with mixed input supported.
- Confirm voltage (12–36V) and power source (ACC or permanent live).
- Confirm connector type (RCA or 4-pin aviation) and cable length.
- Confirm the bracket form (U-shaped standard; universal ball arm/dashboard bracket optional)
- Confirm whether an IP69K test report/certificate is required to be provided with the product (both Chinese and English versions are available)
- Confirm whether a complete kit with a camera is required, and which camera model.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is within 12–36V and never reverse the polarity.
- Connect ACC to the ignition switch to avoid draining the battery.
- Connect the trigger wires to the reversing and indicator signals, then verify the automatic switching for each.
- Install and tighten the sunshade and bracket according to the car model to avoid loosening due to driving vibration (the body is heavy, so it must be fixed firmly)
- The wires should be fixed and routed, avoiding high-temperature parts and sharp sheet metal edges, and the connectors should be tightened (the threads of the 4-pin aviation connector should be tightened)
- Although IP69K is resistant to high-pressure washing, it is still recommended to avoid direct flushing of connectors and wire harness exits for long periods of time
- Clean the screen with a soft cloth, do not wipe it with alcohol or hard objects; wipe away any water stains after washing the car
