Main image and detail shots of the JPM-1017AI-4G 10.1.
Recording · MDVR & JFD
JPM-1017AI-4G 10.1

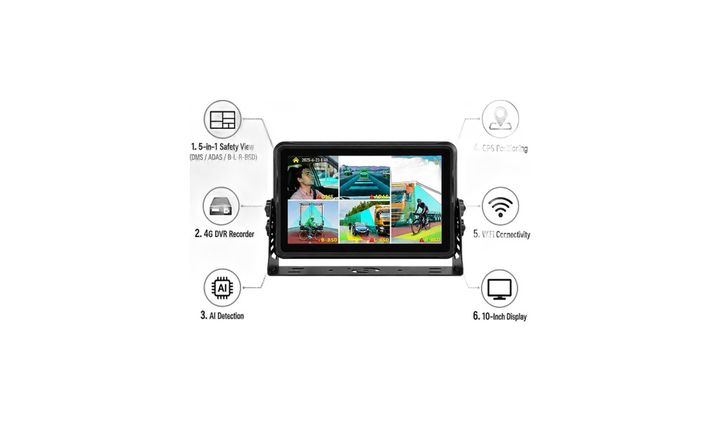

JPM-1017AI-4G 10.1-inch AI active safety all-in-one machine (ADAS + DMS + BSD / 4G / up to 5 channels 1080P)
Key features
- AI active safety: ADAS + DMS + BSD with real-time voice alerts

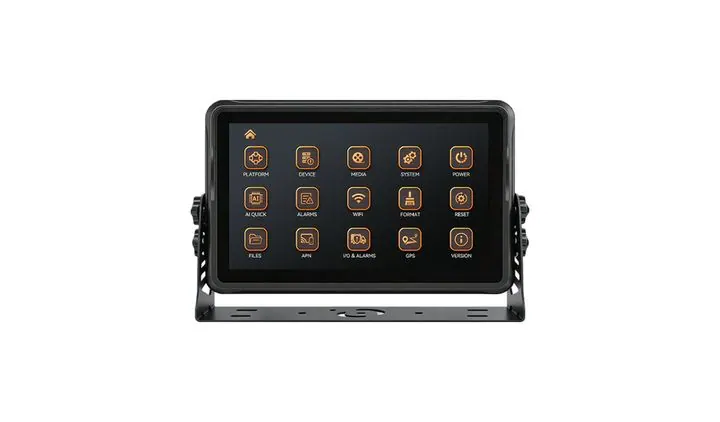

- 1 inch HD touchscreen: live view and setup on screen, no extra monitor needed
- Up to 5 x 1080P channels: front, cabin, sides and rear coverage
- Supercapacitor (5F / 10.8V): recordings are safe on abnormal power loss, no lithium battery
- 4G LTE Cat 4 + WCDMA, Wi-Fi 2.4G b/g/n: remote live view and easy local setup
- Compliant with JT/T808, JT/T905 and JT/T1078 national standards
- Multi-mode GNSS positioning: real-time tracking and historical route playback

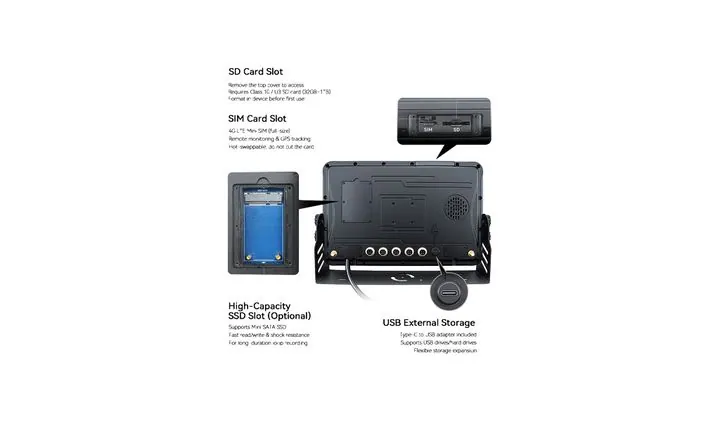

- Flexible storage: SD card up to 1TB plus optional mSATA hard disk
- Face recognition driver ID and anti-impersonation attendance
- Parking monitoring plus remote fuel / power cut-off
- 2 x RS232, multiple I/O, built-in microphone and speaker, OTA upgrade
- Compact and vibration resistant structure; flagship version waterproof
- Platform: Linux, 1GHz RISC + 1T NPU, 2Gb DDR3, 10.1 inch 720P IPS
- Power 9-36V DC; working temperature -20°C to +70°C
- Video: H.264, 25fps, up to 5 x 1080P, TS / MP4, JPG snapshot
- Brand JFA·CAM, Shenzhen Jifuan Intelligent Technology
Ordering notes
Points to confirm before production so the unit arrives ready to fit.

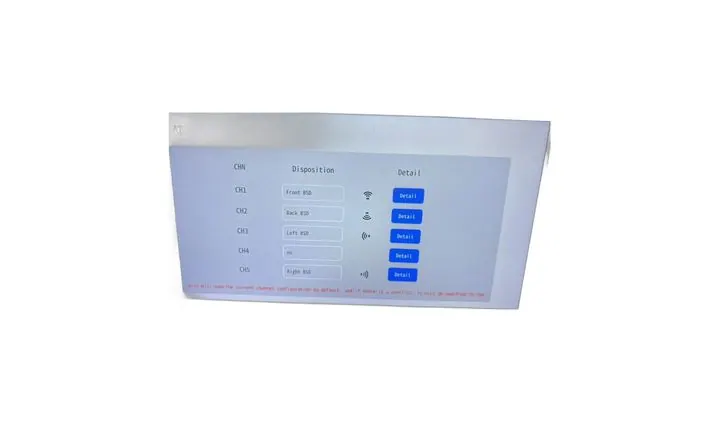

- Confirm the number of channels and camera configuration (up to 5 channels 1080P: front view/inside cabin/side/rear)
- Confirm the AI function list: whether ADAS + DMS + BSD are all enabled, and how many channels are needed for BSD
- Confirm storage: SD card maximum 1TB, whether mSATA hard drive is required
- Confirm the platform language and whether it needs to be connected to the customer's own platform
- Confirm whether remote fuel and electricity shutoff function and installation authorization are required
- Confirm the 4G band version (different in different sales areas) and who provides the SIM card
- Confirm whether you need the waterproof flagship version
- Confirm AI Camera Kit, Cable Length, and Connector Type
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Supply is 9–36V: red to permanent live, orange to ACC, black to ground. Never reverse the polarity.
- The main unit should be firmly fixed and avoid blocking the driver's view. The touch screen should be installed at an angle that is convenient for operation
- The installation angle of the AI camera must be calibrated according to the instruction manual (DMS aims at the driver, ADAS aims at the front, and BSD aims at the blind spot), otherwise the alarm will not be accurate
- Face recognition and fatigue alarm thresholds must be set before loading into the vehicle and verified by road tests
- 4G antennas and GNSS antennas are arranged separately to avoid mutual interference
- The power must be cut off before inserting or removing the SD card, hard disk, or SIM card
- Regularly check the recording time, screen, loop coverage and platform online status
- The remote fuel and electricity cutoff function is a safety-related function, and installation and authorization must be performed by authorized personnel
