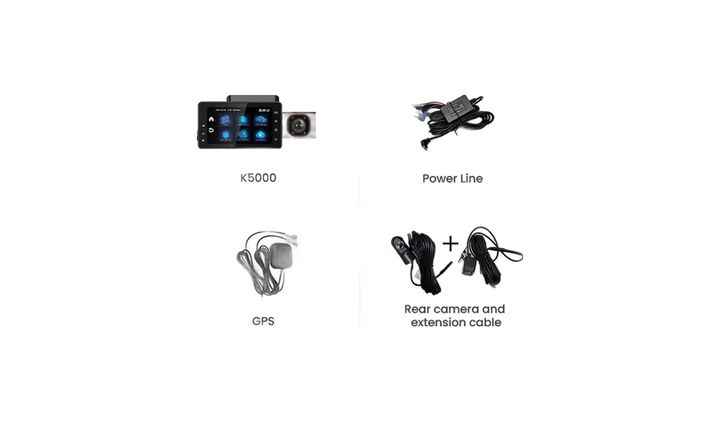

Main image and detail shots of the JFD-W26.

Recording · MDVR & JFD

JFD-W26

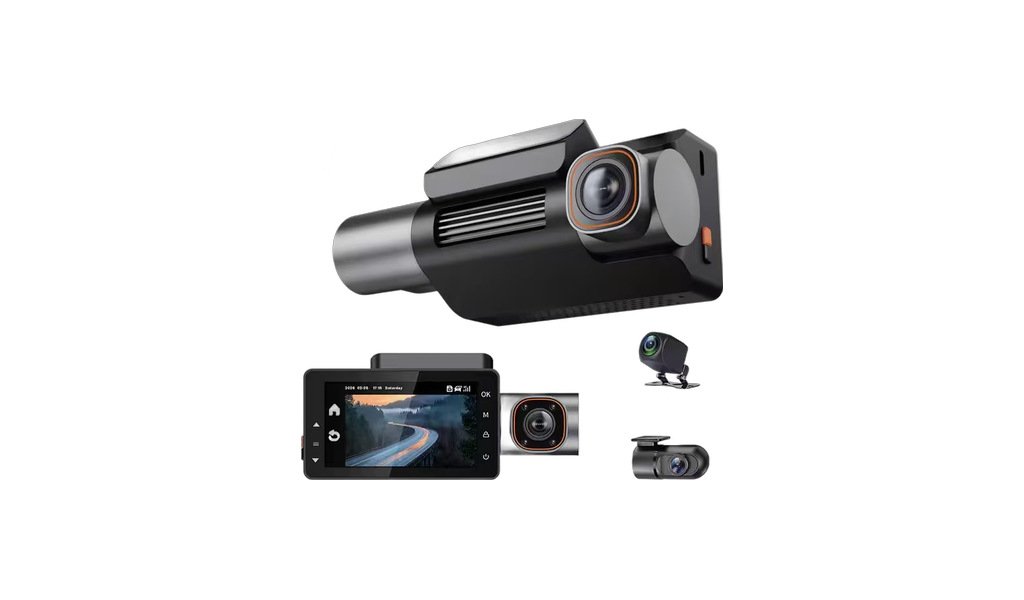

JFD-W26 (K5000) 4-channel 4G driving recorder (3.0-inch touch screen / front 2K / CAT4)

Key features

4-channel 4G dash cam with 3.0 inch IPS touch screen (360 x 640, MIPI interface)
Front camera 2K / 2560 x 1440@25fps; other channels 1920 x 1080@25fps
Main chipset SA230 Arm Cortex-A7 CPU + RISC-V CPU
4G CAT4 module Quectel EC200A-EU
4G bands: FDD-LTE B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40/B41
GPS + Beidou positioning with GPS tracking
WiFi 802.11b/g/n 2.4GHz with hotspot support
ADAS function: lane departure warning, front vehicle collision warning, front vehicle move warning
BSD blind spot detection support
Protocol JT808 / JT1078; can work with the CMSV6 platform
4G live streaming, video capture, image capture, park monitor
Two-way talkie (built-in MIC and speaker), audio recording support
Max TF card 512G with Class 10 or above; video format TS H.264
Power input 12V (for 24V vehicles please add a converter)
4-channel coverage for trucks, buses and engineering vehicles

Points to confirm before production so the unit arrives ready to fit.

There are two versions of the 4-way configuration in the information: factory specifications write front view + in-car infrared + rear view (some versions have two rear lenses), and quotations write front view + rear view + left and right. Before placing an order, confirm the actual configuration with the factory
DMS function information shows that it is still under development. Please confirm whether it is supported before placing an order
4G is CAT4; TF card maximum is 512G, Class 10 or above
Default power supply is 12V, 24V vehicles require a converter
Confirm whether you need a truck pull-back camera and cable length
Confirm if CMSV6 platform and server are required
Confirm who provides the SIM card frequency band and data plan
Confirm language, logo, packaging and boot screen.
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

The host must be firmly fixed, and do not connect the positive and negative poles of the power supply reversely; a 24V car must use a converter and cannot be directly connected to 24V
Parking monitoring should be equipped with a voltage-reducing line and low-voltage detection. Pay attention to the battery when parked for a long time
Disconnect the power before inserting or removing the SIM or TF card.
Multiple camera wiring harnesses and power cords inside and outside the car are routed separately to avoid image interference
The GPS antenna must be placed in an unobstructed location, otherwise the positioning and trajectory will be inaccurate
The AI camera installation angle is installed according to the instruction manual. After installation, a road test is performed to verify whether the ADAS/BSD alarm is normal
Check the recording time, image and loop overwrite periodically, and export important footage promptly.
Route the cable away from hot surfaces and strong interference sources.
