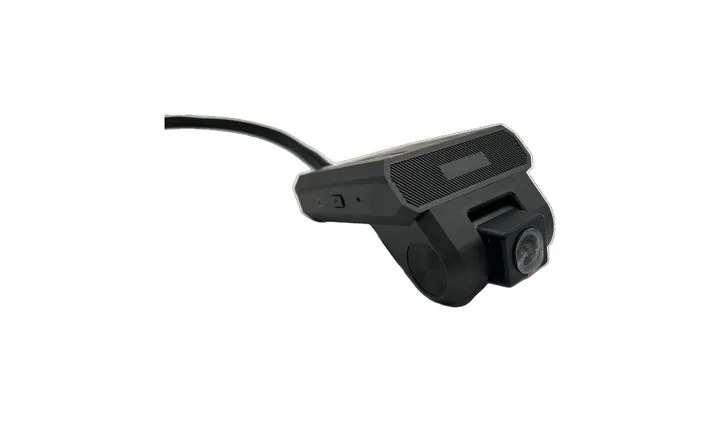

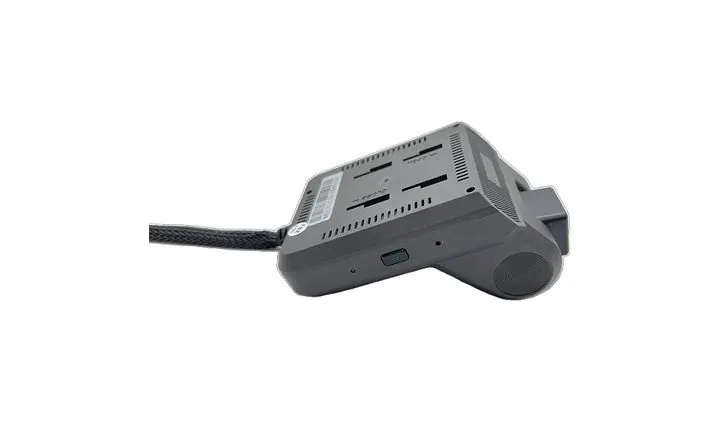

Main image and detail shots of the JFD-W13.

Recording · MDVR & JFD

JFD-W13

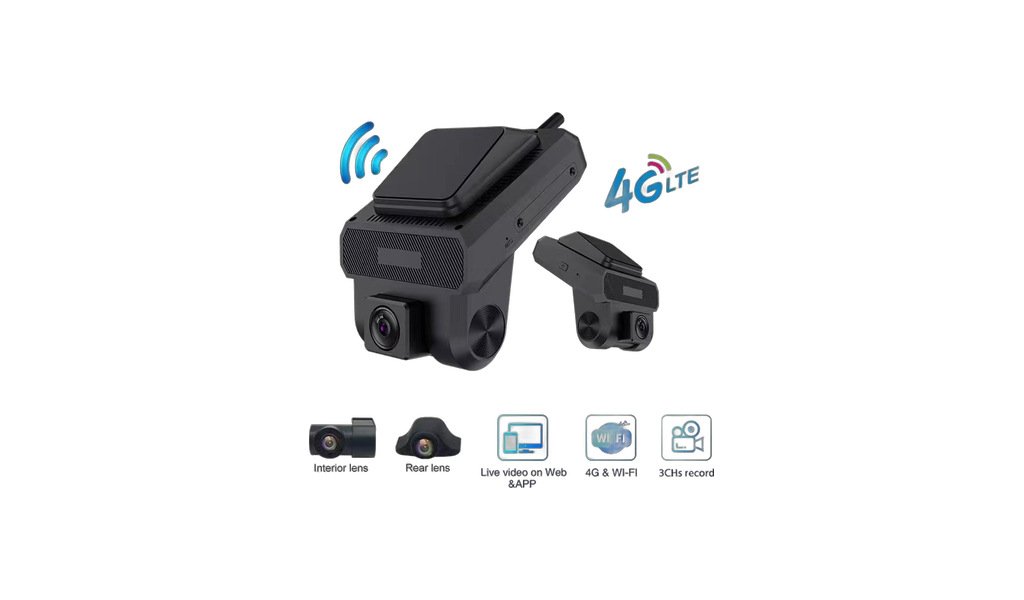

JFD-W13 (ZW3) 3-channel 4G driving recorder (front 1080P + rear/right 720P/Android)

Key features

3-channel 4G dash cam with Android 8.1 system
SL8541E + SA206 quad-core Cortex-A53 @1.4GHz, Mali820@680MHz, 8GB ROM + 1GB RAM
3 x AHD GC2053 cameras with 140 degree wide-angle lens: front 1080P, rear and right 720P
GPS & Beidou dual-mode positioning with electronic dog (fixed and mobile speed-camera warning)
JT/T808 + JT/T1078 compliant, works with the Tongtianxing platform
Remote monitoring from phone App and PC in real time
WiFi 802.11ac/b/g/n 2.4G & 5G, supports WiFi hotspot
4G bands: GSM B5/B3/B8, WCDMA B1/B5/B8, TDD-LTE B38/B39/B40/B41, FDD-LTE B1/B3/B5/B8
SOS one-key alarm
6-axis G-sensor: collision lock and loop recording
6-axis G-sensor parking monitoring
DMS driver monitoring function as standard (activates above 30km/h)
TS video format, H.264 compression; TF card up to 256GB
1 x RS232 serial port; Type-C USB; reset and power keys
Built-in high-sensitivity microphone and 8Ω 2W mono speaker
9-16V car fuse-box power supply; works -20°C to +70°C, storage -30°C to +80°C
Channels: CH1 front view, CH2 rear view, CH3 cabin

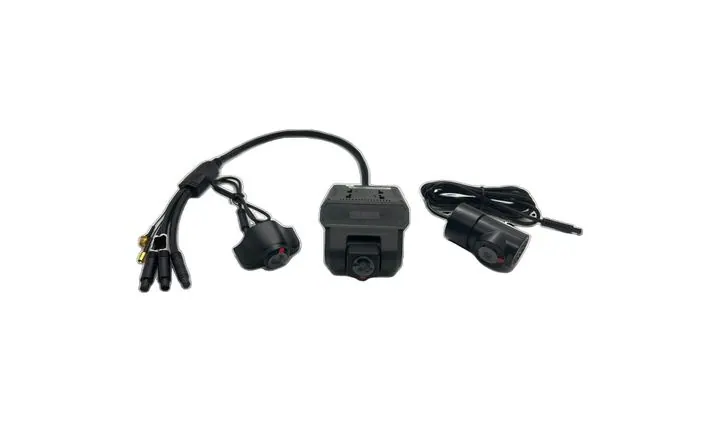

3-camera coverage (front / rear / right) for trucks and vans

Points to confirm before production so the unit arrives ready to fit.

The standard DMS function is automatically turned on and cannot be turned off when the vehicle speed exceeds 30km/h; the DMS camera must be connected to AHD1
The channel sequence is fixed as CH1 front view / CH2 rear view / CH3 inside the car. Do not make wrong connections during installation
ADAS alarms only have Chinese voices and no English alarms; if you export to the English market, please explain in advance

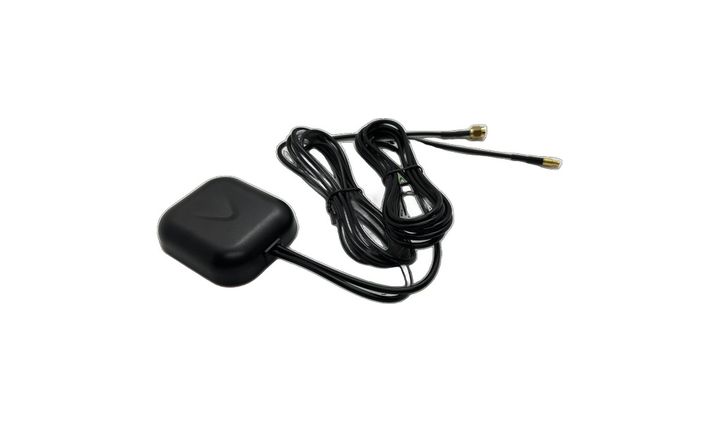

The bound device must have a TF card and 4G antenna inserted, otherwise it will not be able to connect to the Internet
The platform is Tongtianxing. Confirm whether you need to connect to the customer's own platform
Confirm the number of 3-way cameras and cable length (front/rear/right)
The maximum size of TF card is 256GB, Class 10 or above, please confirm whether it is included with the goods
Confirm SIM card version, frequency band and data provider
Confirm language, logo, packaging and boot screen.
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Power button: short press to broadcast, long press for 3 seconds to restart, long press for 7 seconds to reset (resetting will not clear the IP address)

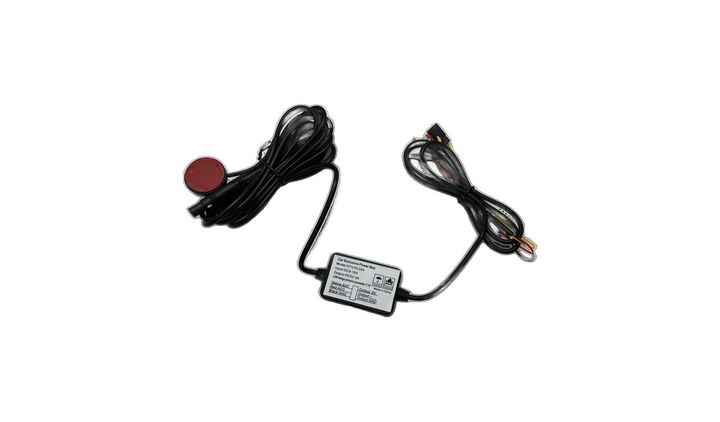

The power supply is 9-16V; the red wire is connected to normal power, the ACC wire is connected to ignition, and the black wire is grounded. The positive and negative poles cannot be connected reversely
Disconnect the power before inserting or removing the SIM or TF card.

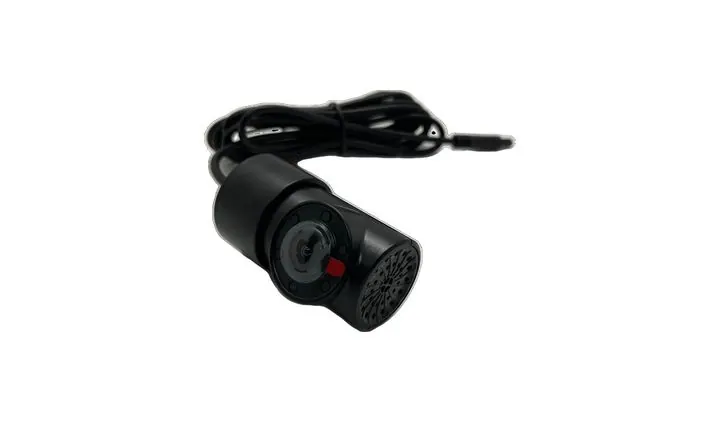

The DMS camera must be connected to AHD1, otherwise DMS will not work
The camera lens must be kept clean, dirt and raindrops will affect DMS / ADAS recognition
After loading, conduct a field road test to confirm that remote monitoring, GPS tracks and alarm uploads are all normal
Check the recording time, image and loop overwrite periodically, and export important footage promptly.
Cards and hosts must be regularly formatted and health status checked to avoid abnormal video coverage
