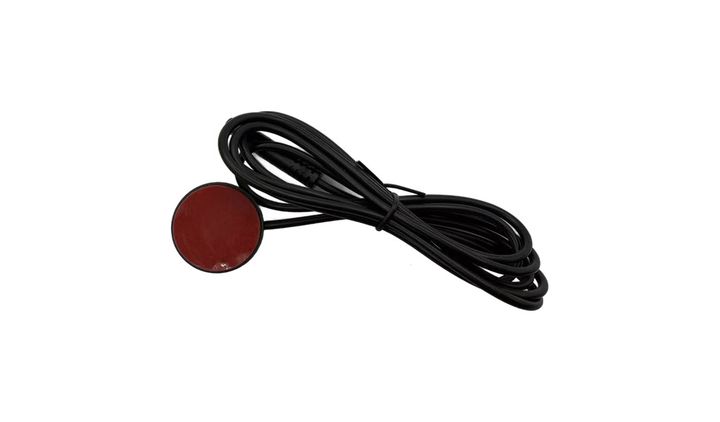

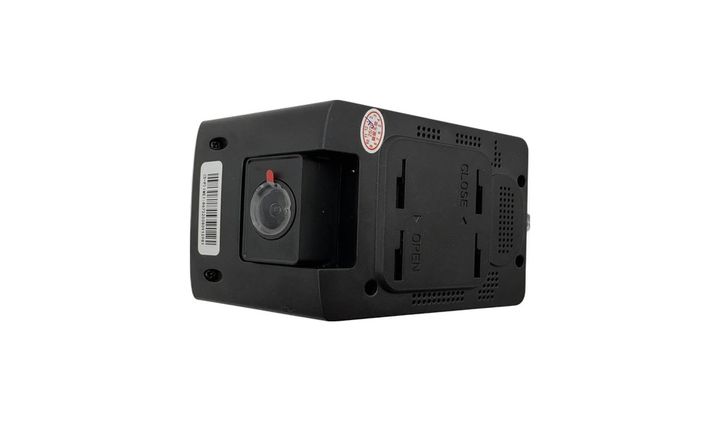

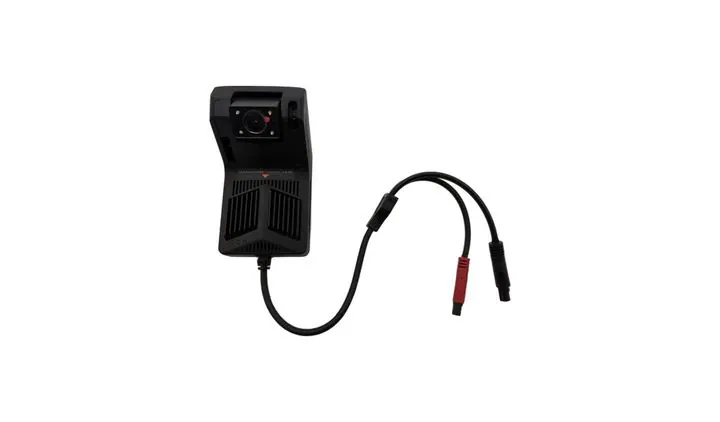

Main image and detail shots of the JFD-AW.

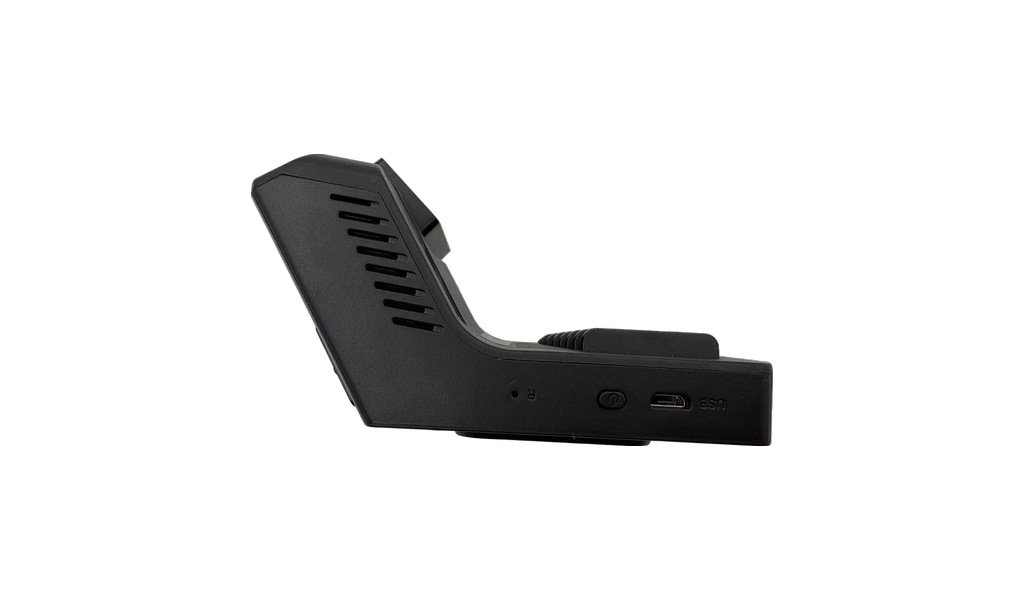

JFD-AW (AW1) 4G dual lens recorder (no screen / front 2K + rear 720P / CAT1)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- No-screen 4G dual-lens dash cam: front + rear camera
- Main chipset: Allwinner V853 Cortex-A7 @1.2GHz
- Front camera 2560 x 1440@25fps; rear camera 1280 x 720@25fps
- Front view angle 150 degree, rear 130 degree
- 4G CAT1 module Quectel EC800K
- 4G bands: FDD-LTE B1/3/5/8, TDD-LTE B38/B39/B40/B41
- GPS function and WiFi hotspot support
- Free Cloudspirit App for live view and configuration
- 4G live streaming, video capture, image capture, park monitor
- Two-way talkie (built-in MIC and speaker)
- Max TF card 512G with Class 10 or above
- Video format TS H.264; audio recording support
- Power input 9-16V
- No screen design: compact and easy to hide on the windscreen
- Works with cars, vans and light commercial vehicles
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- This model has no screen and can only be viewed and set through the mobile app. Please confirm this with the customer before shipping
- 4G is CAT1; TF card maximum is 512G, Class 10 or above
- Confirm whether you need to pull back the camera and the length of the cable
- Confirm if CMSV6 platform/server version is required
- Confirm who provides the SIM card and data plan
- Confirm language, logo, packaging and boot screen.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before connecting the mobile phone to the recorder WiFi, please delete other WiFi saved in the mobile phone (office/home)
- If you still can’t connect, unbind the recorder in Cloudspirit App, then restart your phone and connect again
- Disconnect the power before inserting the SIM or TF card.
- Fix the main unit securely and never reverse the power polarity.
- The GPS antenna needs a clear view of the sky, or positioning and trip tracks will be inaccurate.
- Check the recording time, image and loop overwrite periodically, and export important footage promptly.
- Route the cable away from hot surfaces and strong interference sources.
